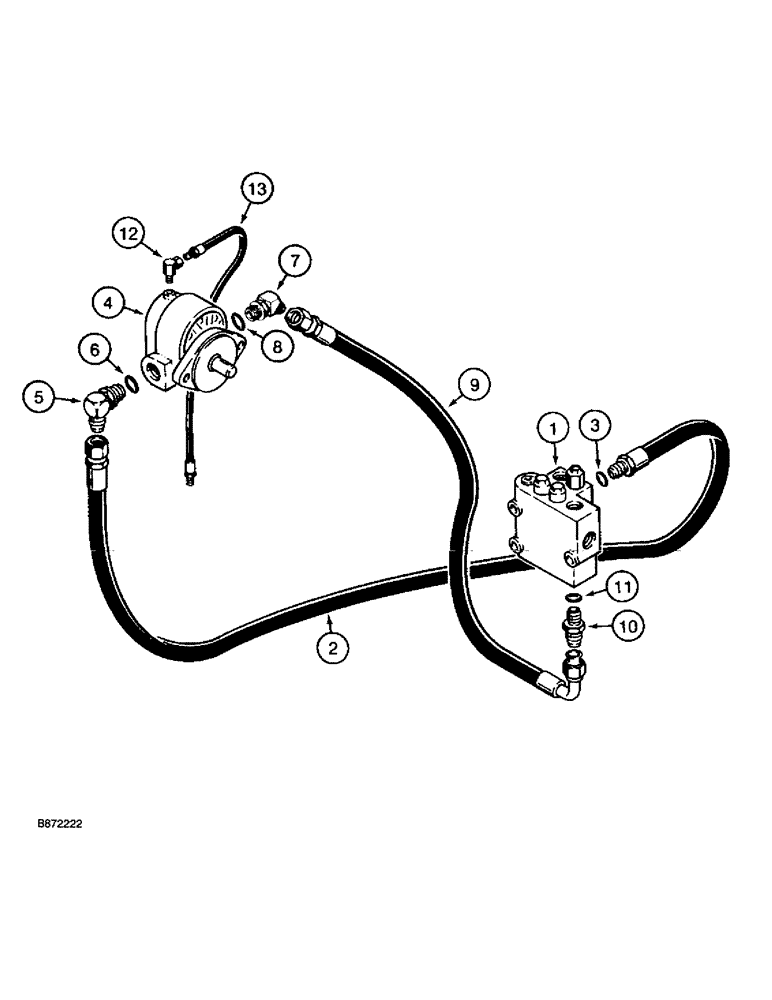

Запчасти Case TF300 (6-04) - GROUND DRIVE HYDRAULIC CIRCUIT, SN P267418 THROUGH P.I.N. (06) - POWER TRAIN

1

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - ground drive and boom, (See Figures 6-18 - 6-24)

1шт.

2

H264671

HYDRAULIC HOSE,12.70 mm ID x 939.80 mm, SAE 100R1

- Control valve to ground drive motor, Includes Ref. 3 12.70 mm ID x 939.80 mm, SAE 100R1

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

REF

INSTRUCTION

MOTOR ASSEMBLY - ground drive, (See Figures 6-10 - 6-14)

1шт.

5

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

H264697

HOSE ASSY.

HOSE - 762 mm (30 inch) long, ground drive motor to control valve

1шт.

10

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. Ref. 11

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

218-933

ELBOW,90 Degree, 1/8" NPTF Male x 1/8" NPSM Fem Sw

- 90 degree, 1/8 inch PT x swivel str pipe

1шт.

13

H45765

HOSE,6.35 mm ID x 609.60 mm, SAE 100R3

Bleeder, at Ground Drive Motor 6.35 mm ID x 609.60 mm, SAE 100R3

1шт.
