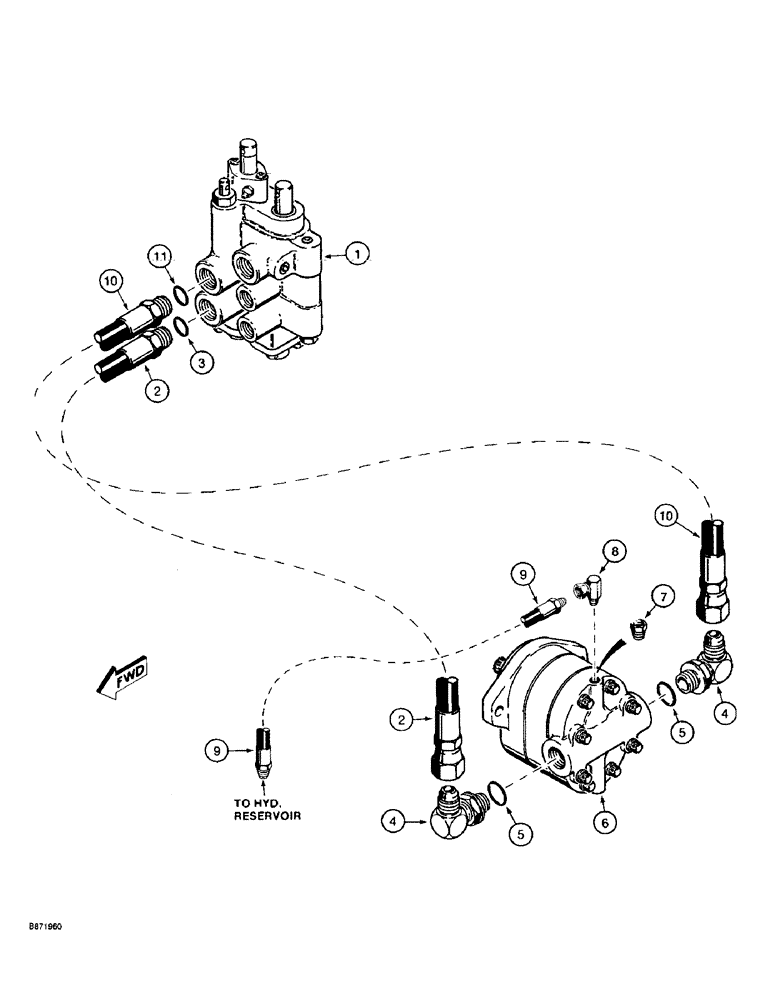

Запчасти Case TF300 (6-02) - GROUND DRIVE HYDRAULIC CIRCUIT, FIRST PRODUCTION THROUGH SN (06) - POWER TRAIN

1

H545921

LOCK VALVE

VALVE ASSEMBLY - control, ground drive and boom, (See Figure 6-16)

1шт.

2

H109470

HOSE,12.70 mm ID x 863.60 mm, SAE 100R1

Control Valve to Ground Drive Motor, Includes: Ref. 3 12.70 mm ID x 863.60 mm, SAE 100R1

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 5

2шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

6

REF

INSTRUCTION

MOTOR ASSEMBLY - ground drive, (See Figures 6-10 - 6-14)

1шт.

7

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- pipe, 1/4 male x 1/8 inch female, used on models with H656629 motor, if used

1шт.

8

218-933

ELBOW,90 Degree, 1/8" NPTF Male x 1/8" NPSM Fem Sw

- 90 degree, 1/8 inch PT x swivel str pipe

1шт.

9

H103606

HOSE,0.25" ID x 17.00", SAE 100R3

Ground Drive Motor to Reservoir 0.25" ID x 17.00", SAE 100R3

1шт.

10

H34686

HOSE ASSY.

HOSE - 610 mm (24 inch) long, ground drive motor to control valve, Includes: Ref. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
