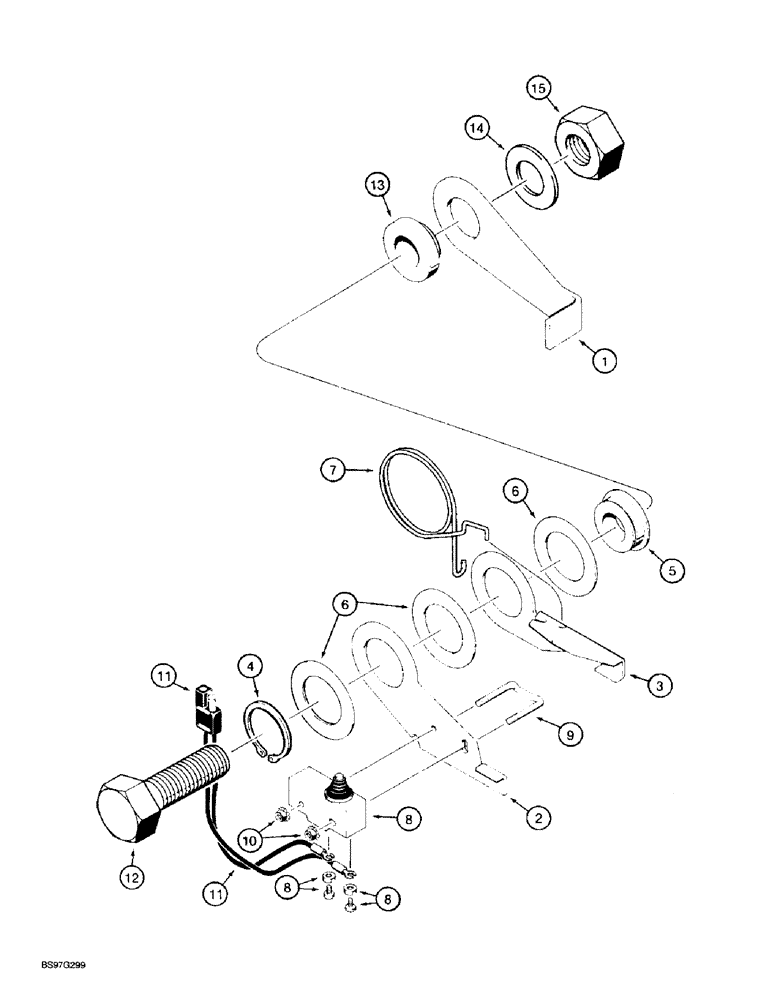

Запчасти Case TF300 (4-16) - SWITCH ASSEMBLY - NEUTRAL START (04) - ELECTRICAL SYSTEMS

106402A1

SWITCH

ASSEMBLY - neutral start, Includes: Ref. 1 - 15

1шт.

1

H438465

LARGE PLATE

PLATE - actuator

1шт.

H673263

MOUNTING PARTS

MOUNT ASSEMBLY - switch, Includes: Ref. 2 - 6

1шт.

2

131052A1

PLATE

- switch mounting

1шт.

3

131051A1

CONTACT PLATE

PLATE - switch contact

1шт.

4

103-11125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

5

131050A1

HUB

- switch contact plate

1шт.

6

H257915

SHIM,0.813mm Thk

(.031") 0.813mm Thk

3шт.

7

H436231

SPRING

- switch contact plate

1шт.

8

H435820

SWITCH

- neutral start, includes terminal hardware

1шт.

9

H435814

U-BOLT

- switch mounting

1шт.

10

193-1003

NUT,Keps, w/LW,#6-32

- hex, with external tooth lock washer, No. 6 NC

2шт.

11

H436183

CONNECTOR, ELEC

WIRE - connector

1шт.

12

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

1шт.

13

H435881

HUB

SPACER - actuator plate

1шт.

14

495-11081

WASHER,3/4", SAE

1шт.

15

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.
