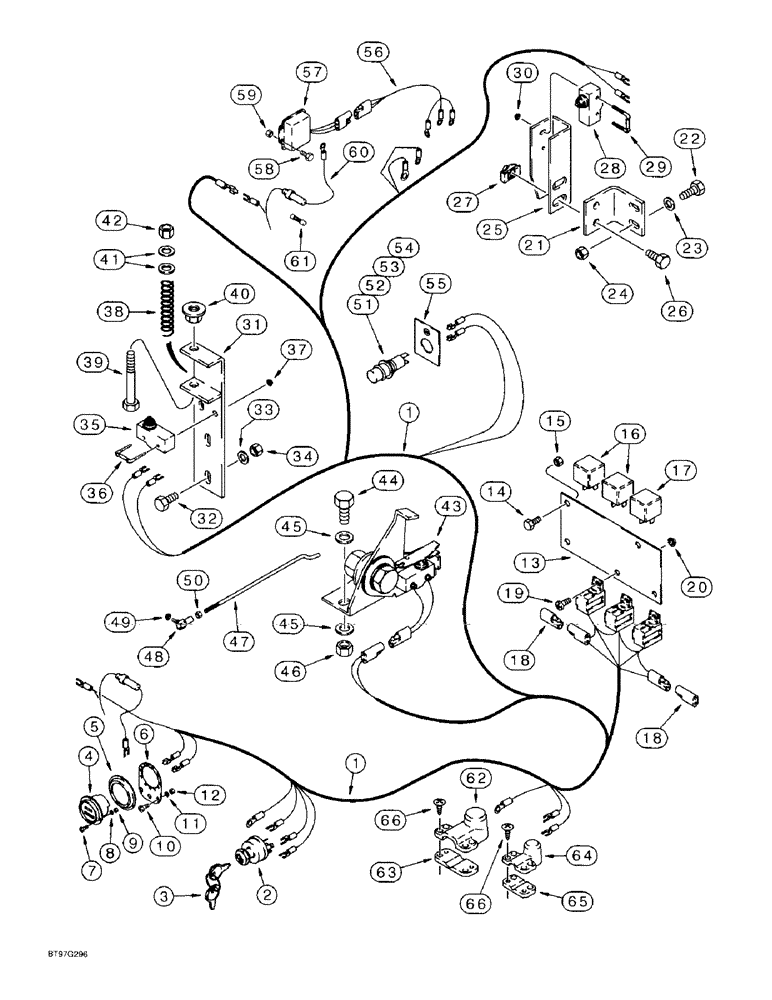

Запчасти Case TF300 (4-12) - MAIN WIRING HARNESS AND CONNECTIONS, WITH SEAT INTERLOCK (04) - ELECTRICAL SYSTEMS

1

240603A1

HARNESS

- main wiring, used on models with Wisconsin engine only

1шт.

2

H71498

SWITCH

- ignition, includes two keys, Includes: Ref. 3

1шт.

3

A24509

KEY

- ignition start, Set of 2

1шт.

4

H129957

HOURMETER

- engine

1шт.

5

D35079

DAMPER

- vibration, hourmeter

1шт.

6

H71480

SUPPORT

BRACKET - mounting, hourmeter

1шт.

7

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

- machine, pan Phillips, No. 6 NC x 1/2 inch

3шт.

8

492-11006

LOCK WASHER,#6

Washer, Lock, #6

3шт.

9

225-14106

NUT,#6-32

3шт.

10

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

11

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

13

240778A1

PLATE

- mounting, solenoid and relay

1шт.

14

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

3шт.

15

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

1шт.

16

D128310

RELAY

- 30 ampere

2шт.

17

224787A1

RELAY

- timer

1шт.

18

L71879

DIODE ELEMENT,400V, 3A

DIODE - harness

2шт.

19

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

- machine, pan Phillips, No. 8 NC x 1/2 inch

2шт.

20

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, with external tooth lock washer, No. 8 NC

2шт.

21

239712A1

SUPPORT

BRACKET - mounting, switch

1шт.

22

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

23

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

- flat, 11/32 x 11/16 x 1/16 inch, hardened

2шт.

24

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

6шт.

25

178265A1

BRACKET

- mounting, neutral start switch

1шт.

26

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

27

H346650

NUT

- U-type, 5/16 inch NC

2шт.

28

H435820

SWITCH

- neutral start, includes terminal hardware

1шт.

29

H435814

U-BOLT

- switch mounting

1шт.

30

193-1003

NUT,Keps, w/LW,#6-32

- hex, with external tooth lock washer, No. 6 NC

2шт.

31

239577A1

SUPPORT

BRACKET - mounting, switch

1шт.

32

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

33

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

- flat, 11/32 x 11/16 x 1/16 inch, hardened

2шт.

34

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

35

H435820

SWITCH

- neutral start, includes terminal hardware

1шт.

36

H435814

U-BOLT

- switch mounting

1шт.

37

193-1003

NUT,Keps, w/LW,#6-32

- hex, with external tooth lock washer, No. 6 NC

2шт.

38

H196717

VALVE SPRING

SPRING - steering control

1шт.

39

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

40

239574A1

WASHER

- special

1шт.

41

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

42

425-106

NUT,3/8"-16, Cl 5

1шт.

43

106402A1

SWITCH

ASSEMBLY - neutral start (See Figure 4-16)

1шт.

44

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

45

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

- flat, 11/32 x 11/16 x 1/16 inch, hardened

4шт.

46

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

47

179590A1

STEM

ROD - control

1шт.

48

L12437

BALL JOINT,#10 - 32 x 7/8"

JOINT - ball

1шт.

49

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

50

225-14210

NUT,#10-32

1шт.

51

175462A1

LIGHT

LAMP ASSEMBLY - neutral indicator, green, Includes: Ref. 52 - 54

1шт.

52

NSS

NOT SOLD SEPARAT

BASE - lamp

1шт.

53

NSS

NOT SOLD SEPARAT

LENS - lamp

1шт.

54

200557H1

BULB,C2V, #1815, 14V

- lamp, No. 1815

1шт.

55

242335A1

DECAL

- neutral warning light

1шт.

56

H107524

CABLE PULLING GRIP

HARNESS -, Serial Range: alternator-regulator

1шт.

57

H433181

REGULATOR

- voltage, alternator

1шт.

58

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

3шт.

59

230-4114

NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

3шт.

60

H576173

FUSE CARTRIDGE

HOLDER - fuse

1шт.

61

223-31

FUSE,10 Amp, Type 3AG

- 3AG, 30 ampere

1шт.

62

115759A1

COVER

CAP - large, starter relay

1шт.

63

115760A1

RETAINER

- large cap, starter relay

1шт.

64

115756A1

CAP

- small, starter relay

1шт.

65

115757A1

RETAINER

- small cap, starter relay

1шт.

66

760-34313

SELF-TAP SCREW,Pan Hd, M4.2 x 13

SCREW - self-tapping, pan Phillips, 4.2 - 1.4 x 13 mm

4шт.
