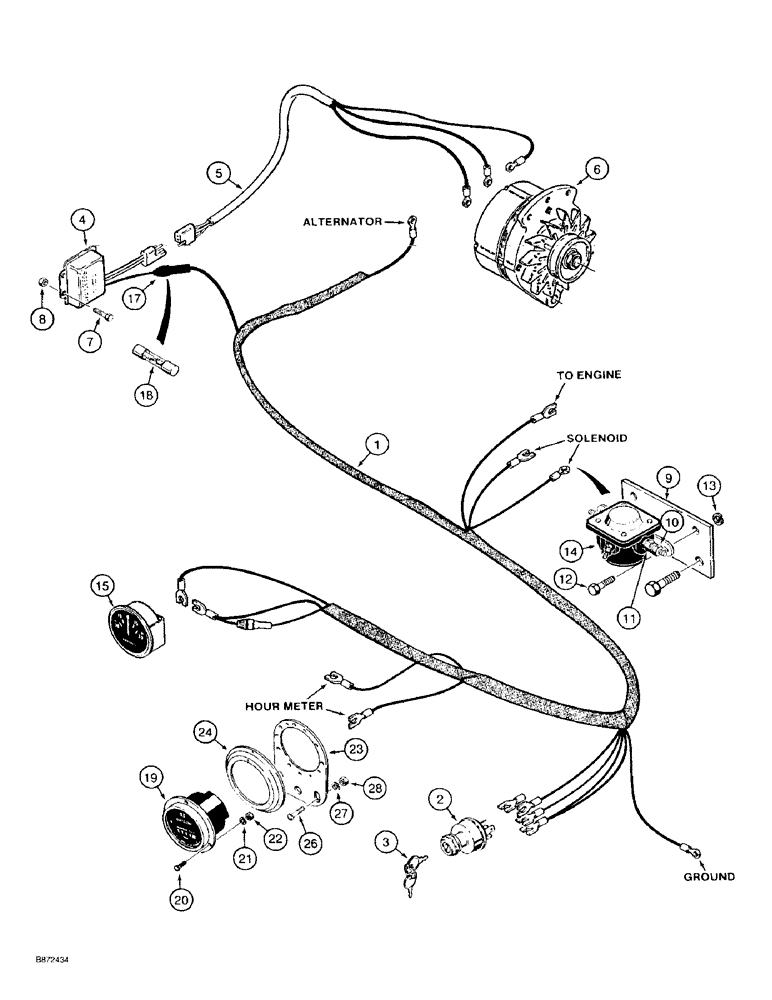

Запчасти Case TF300 (4-10) - MAIN WIRING HARNESS AND CONNECTIONS, WITHOUT SEAT INTERLOCK (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
H433276
HARNESS
- main wiring, used on models with Wisconsin engine only
1шт.
1
H534750
HARNESS
- main wiring, used on models with Deutz engine only
1шт.
2
H71498
SWITCH
- ignition, includes two keys, Includes: Ref. 3
1шт.
3
A24509
KEY
- ignition start, Set of 2
1шт.
4
REF
INSTRUCTION
REGULATOR - voltage,(See Figures 4-4 and 4-6)
1шт.
5
H107524
CABLE PULLING GRIP
HARNESS -, Serial Range: alternator-regulator
1шт.
6
REF
INSTRUCTION
ALTERNATOR ASSEMBLY - 37 amperes, (See Figures 4-4 and 4-6)
1шт.
7
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
- hex, 1/4 NC x 3/4 inch, Voltage regulator mounting
3шт.
8
230-4114
NUT,1/4"-20, GA
NUT - hex, self-locking, 1/4 inch NC, voltage regulator mounting
3шт.
9
H224915
LARGE PLATE
PLATE - solenoid mounting
1шт.
10
231-2444
NUT,1/4"-28, GB
NUT - hex, self-locking, 1/4 inch NF, solenoid
2шт.
11
230-4114
NUT,1/4"-20, GA
NUT - hex, self-locking, 1/4 inch NC, solenoid
2шт.
12
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
- hex, 5/16 NC x 3/4 inch, solenoid mounting to engine
2шт.
13
192-404
LOCK WASHER,5/16"
WASHER, LOCK, , Solenoid mounting to engine 5/16"
2шт.
14
A39079
SOLENOID
- magnetic relay, external mounted, if used
1шт.
15
R18748
AMMETER
- instruments, if used
1шт.
17
H576173
FUSE CARTRIDGE
HOLDER - fuse
1шт.
18
223-31
FUSE,10 Amp, Type 3AG
- 3AG, 30 ampere
1шт.
19
H129957
HOURMETER
- engine
1шт.
20
440-1068
SCREW,Cross Pan Hd, #6-32 x 1/2"
- machine, pan Phillips, No. 6 NC x 1/2 inch
6шт.
21
492-11006
LOCK WASHER,#6
Washer, Lock, #6
6шт.
22
225-14106
NUT,#6-32
6шт.
23
H71480
SUPPORT
BRACKET - mounting, hourmeter
1шт.
24
D35079
DAMPER
- vibration, hourmeter
1шт.
25
H552802
WIRE - hourmeter, not shown, if used
1шт.
26
182-204
SCREW,Sl Pan Hd, 1/4" - 20 x 3/4"
- machine, pan head slotted, 1/4 NC x 3/4 inch
2шт.
27
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
