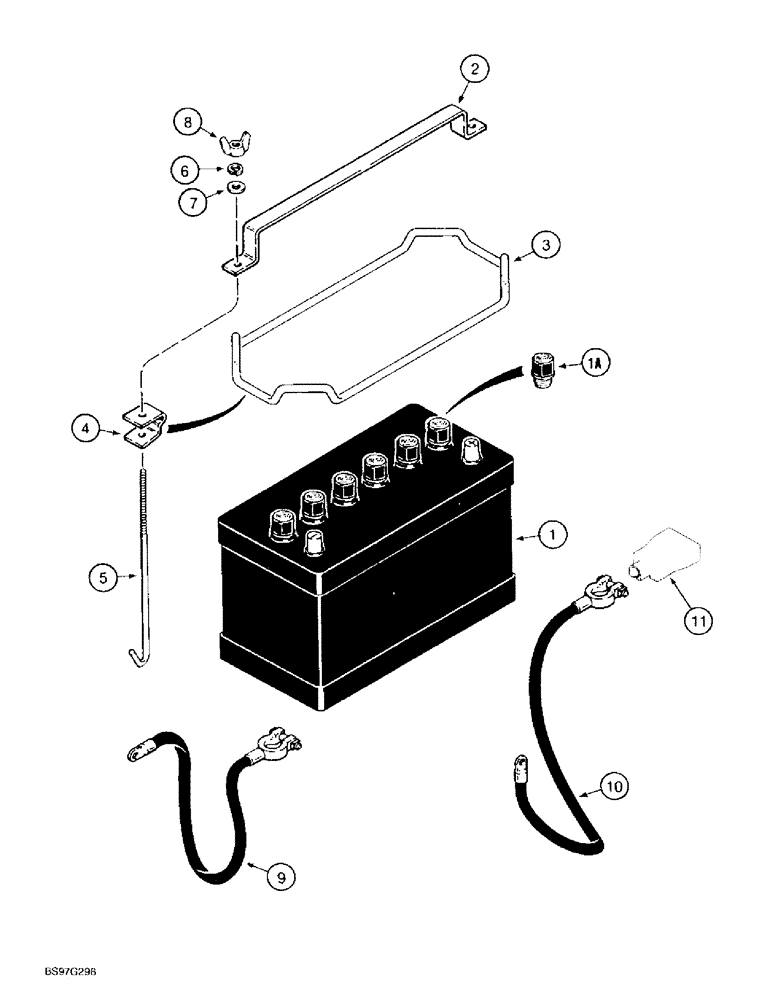

Запчасти Case TF300 (4-08) - BATTERY MOUNTING AND CABLES (04) - ELECTRICAL SYSTEMS

1

BPR29NFB

BATTERY, DRY

BATTERY - tractor, service replacement, use BPR29NF, Includes: Ref. 1A

1шт.

1a

A60553

CAP

- battery

6шт.

2

H396721

COVER

RETAINER - battery cap, Includes: Ref. 4

1шт.

3

H30833

FUNNEL

RETAINER - battery, Includes: Ref. 4

1шт.

4

NSS

NOT SOLD SEPARAT

CLIP - bracket

2шт.

5

H30825

BOLT

BOLT - J-type, 8 inch, battery hold down

2шт.

6

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

8

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 inch NC

2шт.

9

H519348

NEG BATTERY CABLE

CABLE - battery, negative, used on models with Deutz engine

1шт.

9

H173781

CABLE

- battery, negative, used on models with Wisconsin engine

1шт.

10

H106096

CABLE PULLING GRIP

CABLE - battery, positive, used on models with Deutz engine

1шт.

10

H30973

CABLE

- battery, positive, used on models with Wisconsin engine

1шт.

11

H102681

COVER ASSY

COVER - battery terminal, straight

2шт.
