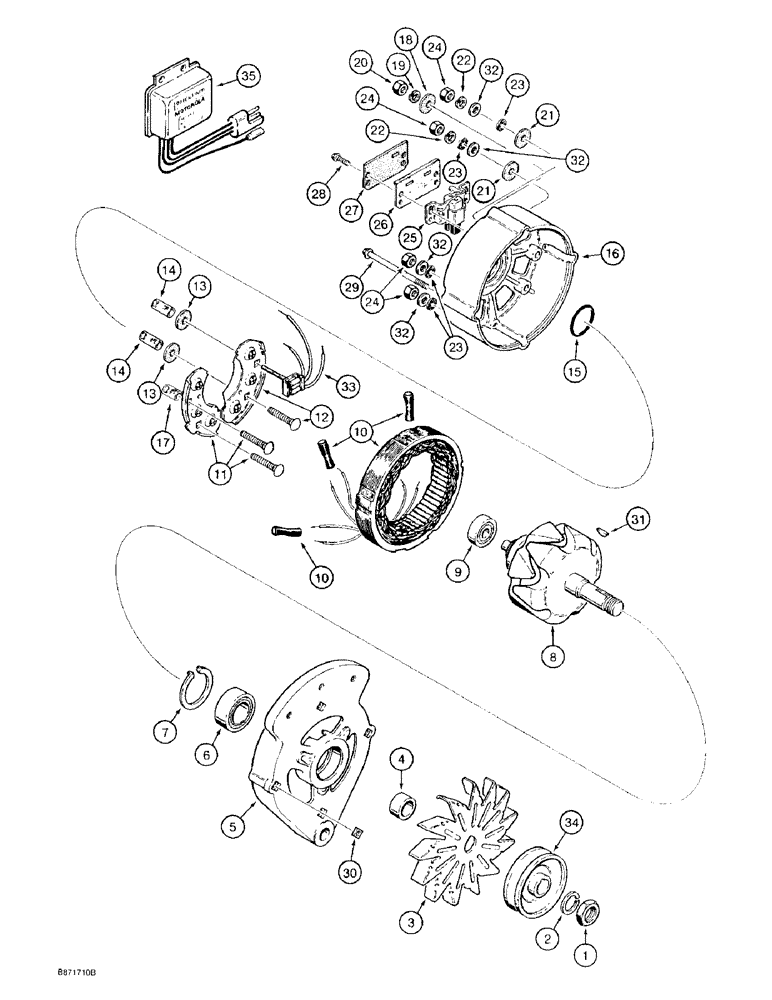

Запчасти Case TF300 (4-06) - ALTERNATOR ASSEMBLY, USED ON MODELS WITH WISCONSIN ENGINE (04) - ELECTRICAL SYSTEMS

H433180

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, 37 amperes, 12 volt, clockwise rotation, Motorola No. 8AL2106F, Includes: Ref. 1 - 33

1шт.

A187873

ALTERNATOR,12V, 65A

Alternator, 14V, 65 Amp

1шт.

AR187873

REMAN-ALTERNATOR

1шт.

AC187873

CORE-ALTERNATOR

Return Number

1шт.

A187873GV

ALTERNATOR

Value, 14V, 65A

1шт.

87297230

REMAN-ALTERNATOR

REMANUFACTURED Bosch 12v 65a ALTERNATOR

1шт.

87297231

CORE-ALTERNATOR

Return Number, Bosch 12 v 65a ALTERNATOR

1шт.

1

A44669

NUT

NUT - hex, 5/8 inch NF, pulley

1шт.

2

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

3

A47602

FAN

FAN - alternator

1шт.

4

A43405

SPACER

SPACER - fan

1шт.

5

A43397

HOUSING

HOUSING - drive end

1шт.

6

A42810

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - drive end

1шт.

7

A43394

RETAINER

RING - retaining

1шт.

8

A47604

ROTOR

ROTOR - alternator

1шт.

9

A44427

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING - rectifier end

1шт.

10

N14084

STATOR

STATOR - alternator

1шт.

11

S117740

DIODE

DIODE - rectifier, negative

1шт.

12

A49691

DIODE

DIODE - rectifier, positive

1шт.

13

A47612

WASHER

WASHER - insulating, No. 10 ID

2шт.

14

A47608

SLEEVE

SLEEVE - insulating, 3/16 ID x 5/16 inch long

2шт.

15

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

O-RING, , Bearing seal -216, 70 Duro, 1.109" ID x .139" Thk

1шт.

16

A49689

HOUSING

HOUSING - rectifier end

1шт.

17

A44771

SLEEVE CYLINDER

SLEEVE - insulation, 1/4 ID x 1/2 inch long

1шт.

18

A47613

WASHER

WASHER - insulating, 1/4 inch ID

1шт.

19

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

20

425-104

NUT,1/4"-20, Cl 5

NUT - hex, 1/4 inch NC

1шт.

21

A48409

WASHER

WASHER - insulation, 13/64 inch ID

2шт.

22

495-11022

WASHER,5.56mm ID x 11.13mm OD x 1.25mm Thk

WASHER, (Flat, 7/32" x 7/16" x 3/64") #10

2шт.

23

A49693

WASHER

WASHER - special, sealing

4шт.

24

225-14110

NUT,#10-24

NUT, #10-24

4шт.

25

A41048

BRUSH, COMMUTATOR

BRUSH BRUSH ASSEMBLY - with holder

1шт.

26

A44769

GUARD

SHIELD - dust, brush holder

1шт.

27

A43399

COVER

COVER - brush assembly

1шт.

28

187-825

SCREW - self-tapping, pan head slotted, No. 8 NC x 1/2 inch

2шт.

29

A44423

BOLT

BOLT - hex, No. 10 NC x 2-7/8 inch

4шт.

30

A47610

NUT

- square, No. 10 - 24 NC

4шт.

31

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, #5, 1/8" x 5/8", HT

1шт.

32

195-513

WASHER,#10

WASHER - flat, 7/32 x 1/2 x 3/64 inch, plated

4шт.

33

A49690

RECTIFIER

RECTIFIER - diode field

1шт.

34

A44678

PULLEY

PULLEY - alternator, does not come with alternator, order separately

1шт.

35

H433181

REGULATOR

REGULATOR - voltage, alternator

1шт.
