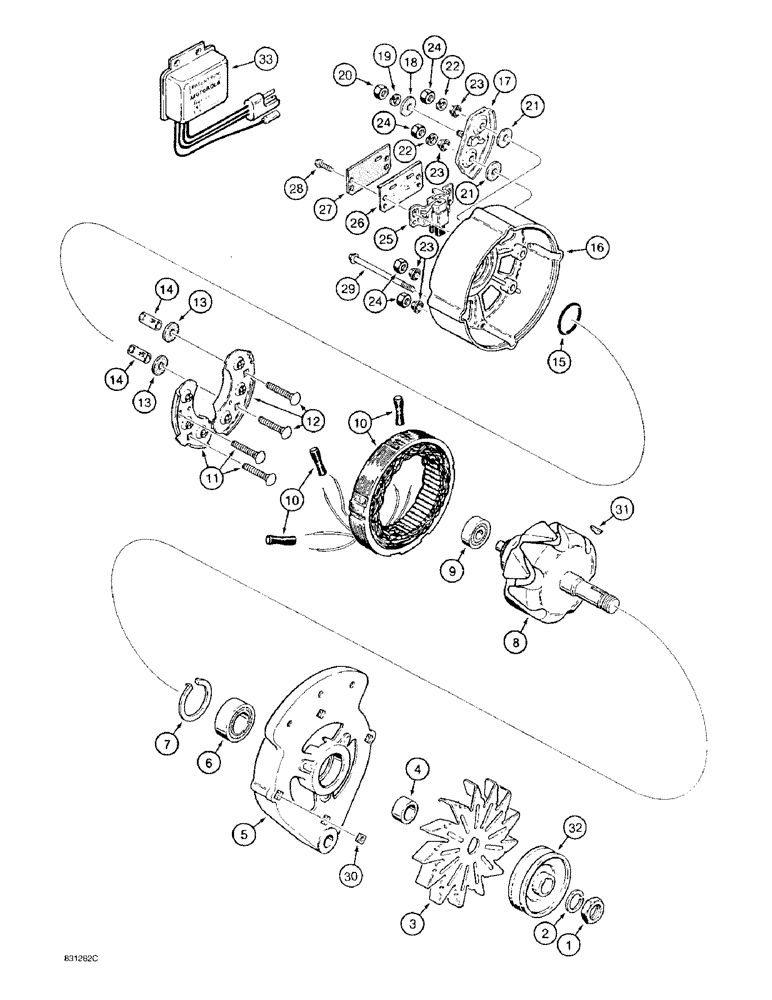

Запчасти Case TF300 (4-04) - ALTERNATOR ASSEMBLY, USED ON MODELS WITH WISCONSIN ENGINE (04) - ELECTRICAL SYSTEMS

H527259

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, 35 amperes, 12 volt, clockwise rotation, Motorola No. 70D44836B03, Model No. A12N451, assembly no longer available, order H433180 alternator (See Figure 4-6) and H433181 regulator, Includes: Ref. 1- 31

1шт.

A187873

ALTERNATOR,12V, 65A

Alternator, 14V, 65 Amp

1шт.

AR187873

REMAN-ALTERNATOR

1шт.

AC187873

CORE-ALTERNATOR

Return Number

1шт.

A187873GV

ALTERNATOR

Value, 14V, 65A

1шт.

87297230

REMAN-ALTERNATOR

REMANUFACTURED Bosch 12v 65a ALTERNATOR

1шт.

87297231

CORE-ALTERNATOR

Return Number, Bosch 12 v 65a ALTERNATOR

1шт.

1

A41035

NUT

NUT - pulley

1шт.

2

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

3

A47602

FAN

FAN - alternator

1шт.

4

A43405

SPACER

SPACER - fan

1шт.

5

A43397

HOUSING

HOUSING - drive end

1шт.

6

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, drive end

1шт.

7

A43394

RETAINER

RING - retaining, drive end bearing

1шт.

8

A47604

ROTOR

ROTOR - alternator

1шт.

9

A44427

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING - rectifier end

1шт.

10

A48411

STATOR

STATOR - alternator

1шт.

11

S117740

DIODE

DIODE - rectifier, negative

1шт.

12

S117741

DIODE

DIODE - rectifier, positive

1шт.

13

A47612

WASHER

WASHER - insulating, No. 10 ID

2шт.

14

A43395

RUBBER INSULATOR

SLEEVE - insulation

2шт.

15

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

O-RING, , Bearing seal -216, 70 Duro, 1.109" ID x .139" Thk

1шт.

16

A48429

HOUSING

HOUSING - rectifier end

1шт.

17

A48410

DIODE

DIODE - isolation

1шт.

18

A47613

WASHER

WASHER - insulating, 1/4 inch ID

1шт.

19

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

20

425-104

NUT,1/4"-20, Cl 5

NUT - hex, 1/4 inch NC

1шт.

21

A48409

WASHER

WASHER - insulation, 13/64 inch ID

2шт.

22

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

23

A41060

LOCK NUT

NUT - hex, with lock washer, No.10 - 24 NC

4шт.

24

225-14110

NUT,#10-24

NUT, #10-24

4шт.

25

A41048

BRUSH, COMMUTATOR

BRUSH BRUSH ASSEMBLY - with holder

1шт.

26

A43400

SHIELD

SHIELD - dirt

1шт.

27

A43399

COVER

COVER - brush assembly

1шт.

28

182-519

SCREW,Sl Pan Hd, #4 - 40 x 3/16"

SCREW - machine, pan head slotted, No. 4 NC x 3/16 inch

2шт.

29

A44423

BOLT

BOLT - hex, No. 10 NC x 2-7/8 inch

4шт.

30

NLS

NO LONGER SERVICED

- square, No. 10 - 24 NC

4шт.

31

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, #5, 1/8" x 5/8", HT

1шт.

32

A44678

PULLEY

PULLEY - alternator, does not come with alternator, order separately

1шт.

33

H107516

GOVERNOR

REGULATOR - voltage

1шт.
