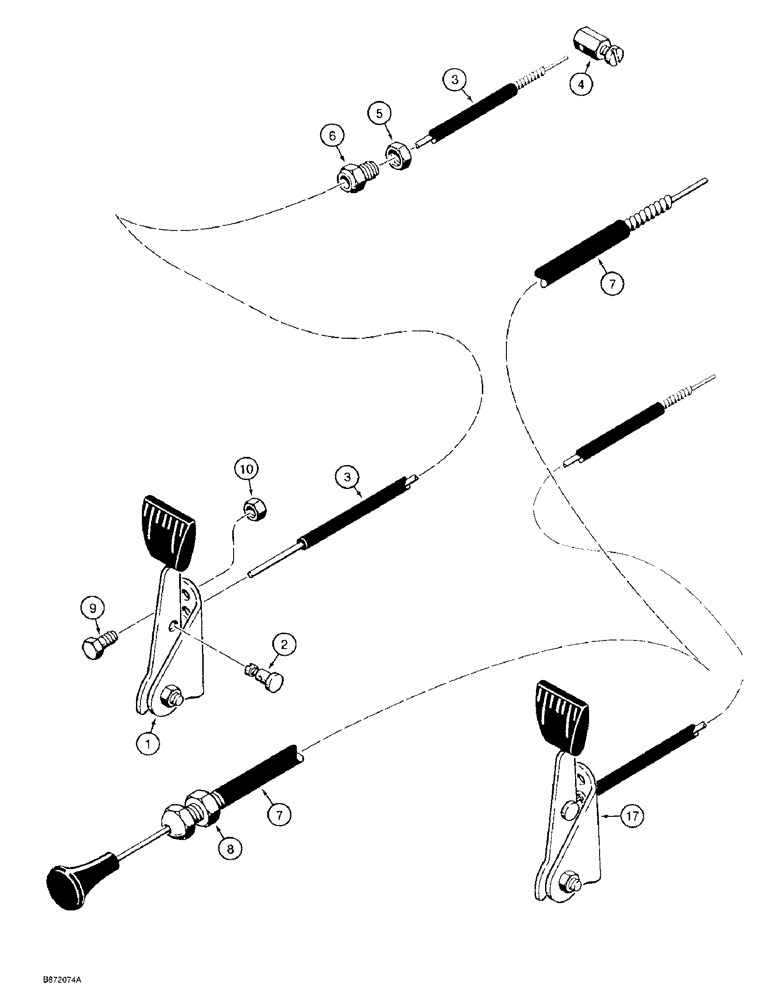

Запчасти Case TF300 (3-4) - THROTTLE CONTROL AND LINKAGE (03) - FUEL SYSTEM

1

H524330

CONTROL BLOCK

LEVER ASSEMBLY - throttle control, throttle cable attached with nut, no longer available, order Ref. 17 lever assembly for service, Includes: Ref. 2

1шт.

2

H43034

JOINT TURNING

RETAINER - throttle cable

1шт.

3

H99754

CABLE ASSY.

CABLE - throttle control, used on models with Deutz and Wisconsin engines only, for models with Lister engines see your authorized Case dealer for correct cable, used with H524330 lever assembly only

1шт.

4

H42796

STOP

- wire, used on models with Deutz and Wisconsin engines only

1шт.

5

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF, Used on models with Deutz and Wisconsin engines only

1шт.

6

H99457

PIPE CLAMP

NUT - special, used on models with Deutz and Wisconsin engines only

1шт.

7

H433568

CONTROL

CABLE ASSEMBLY - choke, Includes: Ref. 8

1шт.

8

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

1шт.

9

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

10

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

2шт.

11

H186361

BRACKET - choke control, used on models with Lister engine only, not shown

1шт.

12

H186379

DRAG LINK

LINK - choke control, used on models with Lister engine only, not shown

1шт.

13

H49643

PIPE CLAMP

NUT - special, at choke control bracket, used on models with Lister engine only, not shown

1шт.

14

H43034

JOINT TURNING

RETAINER - throttle cable, used on models with Lister engine only, not shown

1шт.

15

163-46

SCREW,Hex, #10 - 24 x 1", Gr 5

- machine, hex head, No. 10 NC x 1 inch, used with Ref. 14 only, not shown

2шт.

16

129-669

NUT

- hex jam, No. 10 NC, used with Ref. 14 only, not shown

4шт.

17

H673602

CONTROL

LEVER ASSEMBLY - throttle control, with conduit, throttle control cable crimped on, individual components not serviced separately

1шт.
