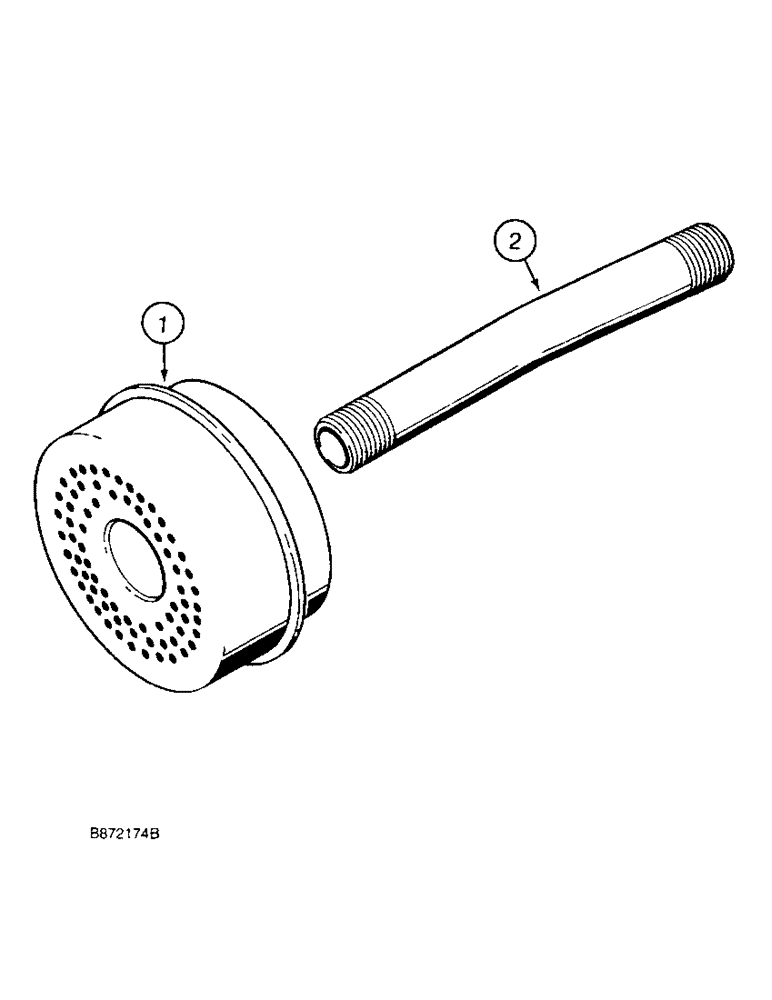

Запчасти Case TF300 (2-6) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

H104265

MUFFLER

- exhaust

1шт.

2

H122630

NIPPLE, LUBE

PIPE - exhaust, used on models with Wisconsin engine only

1шт.

2

H123968

TUBE,1.75" ID x 52" L

PIPE - exhaust, used on models with Lister engine only, not shown

1шт.

2

H106054

HOSE,1.25" ID x 24.00"

Exhaust, used on Mdels with Deutz Engine Only, Not Shown 1.25" ID x 24.00"

1шт.

3

H534495

BRACKET - muffler, used on models with Lister engine only, not shown

1шт.

3

H534610

BRACKET - muffler, used on models with Deutz engine only, not shown

1шт.

4

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Used with Ref 3 bracket, Not shown Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), Used with Ref. 3 bracket, Not shown 3/8", SAE

2шт.

6

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC, Used with Ref 3 bracket, Not shown

2шт.

7

221-260

HYD CONNECTOR

NIPPLE - straight, 1-1/4 PT x 1-5/8 inch, used on models with Lister engine only, not shown

1шт.

8

221-380

ELBOW,90 Degree, 1 1/4" NPT

- pipe, 90 degree, 1-1/4 inch, used on models with Lister engine only, not shown

2шт.

9

L14262

CLAMP

- exhaust pipe, used on models with Lister and Deutz engines only, not shown

2шт.

Part number for low emission Wisconsin engine muffler is 297217A1(muffler/converter)

1шт.

PART# 283608A1 IS WARNING DECAL SAYS "WARNING, HOT SURFACE HAZARD, KEEP CLEAR" HAS DIAGRAM OF A HAND OVER A HOT SURFACE.

1шт.
