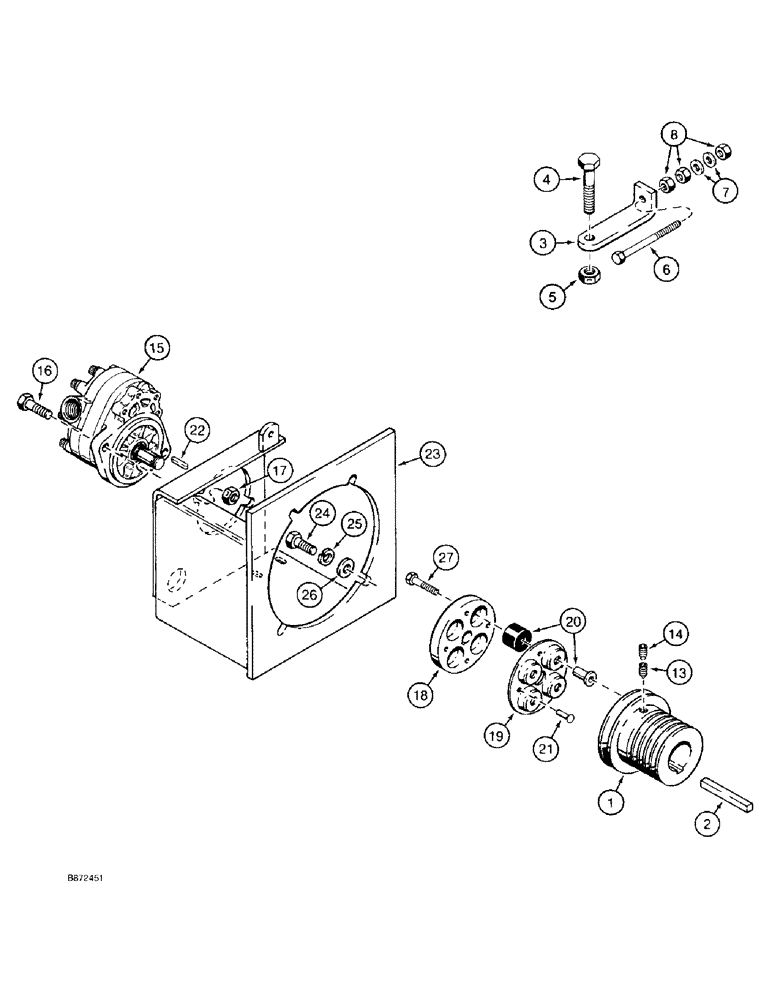

Запчасти Case TF300 (2-4) - ENGINE SHEAVE, ENGINE ADJUSTING BOLT, AND PUMP MOUNTING (02) - ENGINE

1

H179606

SHEAVE

- engine, used on models with Wisconsin engine only

1шт.

1

H190306

SHEAVE

- engine, used on models with Deutz engine only, not shown

1шт.

1

H213488

SHEAVE

- engine, used on models with Lister engine only, not shown

1шт.

2

A40305

KEY

- square, 3/8 x 3/8 x 2-1/2 inch, used on models with Deutz and Wisconsin engines only

1шт.

2

A40305

KEY

- square, 3/8 x 3/8 x 2-1/2 inch, used on models with Lister engine only

1шт.

3

H131516

ANGLE

BRACKET - engine adjusting bolt, used on models with Wisconsin engine only

2шт.

4

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

5

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

2шт.

6

H170233

BOLT (SPREADER)

EYEBOLT - adjusting, used on models with Wisconsin engine only

2шт.

7

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32"), Used with Ref. 6 bolt only 5/16"

4шт.

8

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF, Used with Ref. 6 bolt only

6шт.

9

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch, used on models with Deutz engine only, not shown

1шт.

10

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF, used with Ref. 9 bolt only

2шт.

11

H547257

BOLT

BOLT - engine adjusting, used on models with Lister engine only, not shown

2шт.

12

425-158

JAM NUT,Jam, 1/2"-20, G5

Used with Ref. 11 bolt only Jam, 1/2"-20, G5

4шт.

13

83-2386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cone point, used on models with Wisconsin engine and Deutz engines only

1шт.

14

83-6386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, half dog point, used on models with Wisconsin and Deutz engines only

1шт.

15

REF

INSTRUCTION

PUMP ASSEMBLY - ground drive, (See Figure 6-8)

1шт.

16

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

- hex, 7/16 NC x 1-1/4 inch

2шт.

17

230-4217

LOCK NUT,7/16"-14, GA

NUT - hex, self-locking, 7/16 inch NC

2шт.

H509992

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - flexible, Includes: Ref. 18 - 21

1шт.

18

NSS

NOT SOLD SEPARAT

COUPLING - cast half

1шт.

19

NSS

NOT SOLD SEPARAT

COUPLING - formed half

1шт.

20

N8328

BLOCK

INSULATOR - rubber mount, includes bushing

4шт.

21

147-306

RIVET,But Hd, 1/4" x 1"

- button head, 1/4 x 1 inch

4шт.

22

H68957

KEY

- coupling

1шт.

23

H528273

SUPPORT

BRACKET - pump mounting, used on models with Wisconsin engine only

1шт.

23

H534602

HOUSING

BRACKET - pump mounting, used on models with Lister engine only, not shown

1шт.

23

H532762

SUPPORT

BRACKET - pump mounting, used on models with Deutz engine only not shown

1шт.

24

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

4шт.

25

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

4шт.

26

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

27

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.
