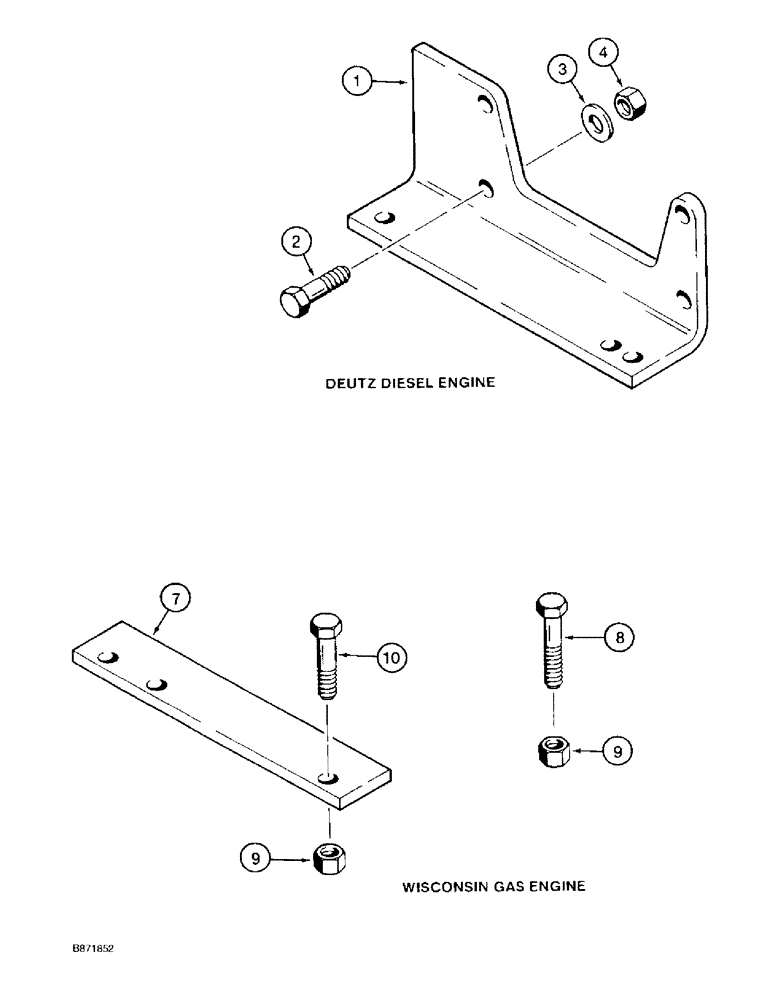

Запчасти Case TF300 (2-2) - ENGINE, AIR CLEANER, AND MOUNTING, USED ON MODELS WITH (02) - ENGINE

REF

INSTRUCTION

ENGINE - Deutz F2L-411, 25 hp, not shown, see your authorized Case dealer for engine components

1шт.

1

H124156

BRACKET - engine mounting

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

3

H274894

WASHER

- flat, special

4шт.

4

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

4шт.

REF

INSTRUCTION

ENGINE - Lister, 18 hp, not shown, see your authorized Case dealer for engine components, used on models with listener diesel engine only

1шт.

5

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch, front, not shown, used on models with listener diesel engine only

2шт.

6

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch, rear, not shown, used on models with listener diesel engine only

2шт.

6

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC, not shown, used on models with listener diesel engine only

4шт.

184734A1

ENGINE ASSEMBLY

ENGINE - Wisconsin TJD1-465906, gas, 18 hp, not shown, see your authorized Case dealer for engine components, replaces H555227 enginec, used on models with wisconsin gas engine only

1шт.

7

H111633

LUG

BRACKET - engine mounting, used on models with wisconsin gas engine only

2шт.

8

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch, front, used on models with wisconsin gas engine only

2шт.

9

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC, front and rear, used on models with wisconsin gas engine only

3шт.

10

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch, Rear, Used on models with Wisconsin gas engine only

1шт.

H534768

CLEANER ASSY.

CLEANER ASSEMBLY - air, engine, parts not illustrated air cleaner and mounting used on models with listener engine only, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - air clenaer, parts not illustrated air cleaner and mounting used on models with listener engine only

1шт.

12

F84999

CLAMP,168.28mm

ASSEMBLY - air cleaner, includes hardware, parts not illustrated air cleaner and mounting used on models with listener engine only

1шт.

13

N14754

CUP

- dust, parts not illustrated air cleaner and mounting used on models with listener engine only

1шт.

14

H81737

INTAKE AIR HOSE,2.00" ID x 19.00"

- Air cleaner to engine, Parts not illustrated air cleaner and mounting used on models with listener engine only 2.00" ID x 19.00"

1шт.

15

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

CLAMP, HOSE, , Adj, Parts not illustrated air cleaner and mounting used on models with listener engine only #36, 1.81/2.75 Type F Worm

2шт.

16

L113910

CLAMP

- air cleaner mounting, includes hardware, parts not illustrated air cleaner and mounting used on models with listener engine only

2шт.

17

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, parts not illustrated air cleaner and mounting used on models with listener engine only

4шт.

18

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC, Parts not illustrated air cleaner and mounting used on models with listener engine only

4шт.

19

H548461

BRACKET

- air cleaner, parts not illustrated air cleaner and mounting used on models with listener engine only

1шт.

Air cleaner element for models with Wisconsin Engines. Starting with machine PIN JAF0244110 the THD low emission engine is used. New spec #THD3-466691. The Air cleaner element from previous machines CAN NOT be used with the new THD engine. filter must be ordered from wisco---Their # LO220 it is not a case stocked part.

1шт.

Case does not service Wiscon engine must contact Wiscon Service 901-369-4013.

1шт.
