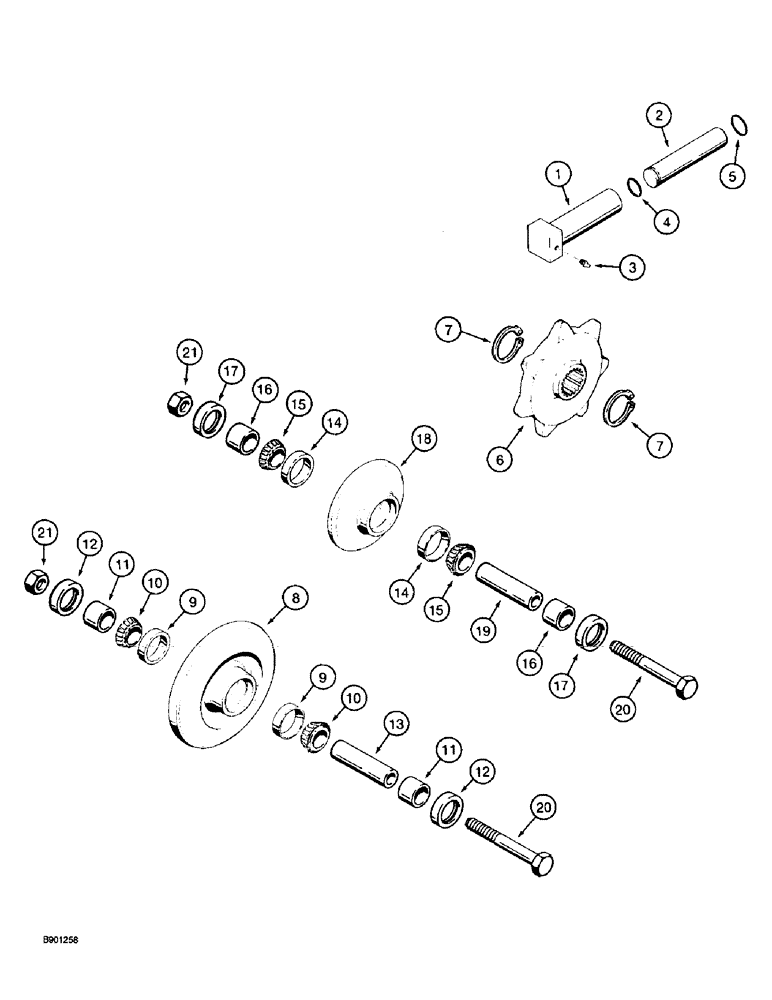

Запчасти Case TF300 (5-06) - TRACK IDLER, ROLLER, SPROCKET AND ADJUSTER, USED ON MODELS (11) - TRACKS/STEERING

H563254

ADJUSTER

CYLINDER ASSEMBLY - track adjusting, Includes: Ref. 1 - 5

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

3

219-66

LUBE NIPPLE,1/8"-27 NPT, Dustproof

FITTING - grease, straight, with cap, 1/8 PT x 1 inch

1шт.

4

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

Inner -210, 70 Duro, .734" ID x .139" Thk

1шт.

5

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

-022, 70 Duro, .989" ID x .070" Thk, Outer

1шт.

6

H437502

DRIVE SPROCKET

SPROCKET - track drive

2шт.

7

100-11156

SNAP RING,#156, Ext

Ring, Snap, #156, Ext

4шт.

H673897

SHIFTER ROLLER

IDLER ASSEMBLY - track roller, Includes: Ref. 8 - 13

2шт.

8

H436947

SHIFTER ROLLER

ROLLER - track

1шт.

9

572564R1

BEARING CUP

CUP - tapered roller bearing

2шт.

10

D29266

ROLLER BEARING,1" ID x 0.58"

CONE - tapered roller bearing

2шт.

11

H89656

SLEEVE

BUSHING - shaft

2шт.

12

H749077

OIL SEAL

- oil

2шт.

13

N89631

SHAFT - roller

1шт.

H673898

SHIFTER ROLLER

ROLLER ASSEMBLY - track, Includes: Ref. 14 - 19

10шт.

14

572564R1

BEARING CUP

CUP - tapered roller bearing

2шт.

15

D29266

ROLLER BEARING,1" ID x 0.58"

CONE - tapered roller bearing

2шт.

16

H89656

SLEEVE

BUSHING - shaft

2шт.

17

H749077

OIL SEAL

- oil

2шт.

18

H436948

SHIFTER ROLLER

ROLLER - idler

1шт.

19

H89631

BEARING

SHAFT - roller (replaces N89631)

1шт.

20

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

12шт.

21

230-42110

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 inch NC

12шт.
