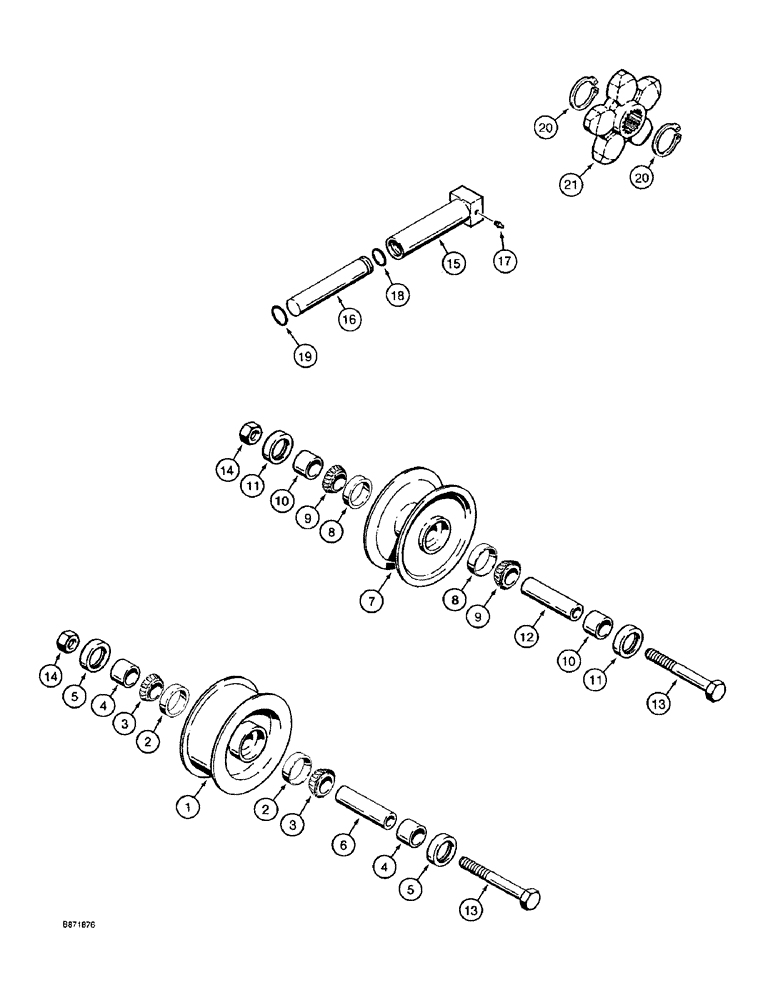

Запчасти Case TF300 (5-04) - TRACK IDLER, ROLLER, SPROCKET AND ADJUSTER, USED ON MODELS (11) - TRACKS/STEERING

H528182

ROLLER

IDLER ASSEMBLY - track roller, Includes: Ref. 1 - 6

2шт.

1

H148791

ROLLER

- track

1шт.

2

572564R1

BEARING CUP

CUP - tapered roller bearing

2шт.

3

D29266

ROLLER BEARING,1" ID x 0.58"

CONE - tapered roller bearing

2шт.

4

H89656

SLEEVE

BUSHING - shaft

2шт.

5

H749077

OIL SEAL

- oil

2шт.

6

H89631

BEARING

SHAFT - roller

1шт.

H550475

ROLLER

ASSEMBLY - track, Includes: Ref. 7 - 12

6шт.

7

H168013

ROLLER

IDLER - track

1шт.

8

572564R1

BEARING CUP

CUP - tapered roller bearing

2шт.

9

D29266

ROLLER BEARING,1" ID x 0.58"

CONE - tapered roller bearing

2шт.

10

H89664

SLEEVE CYLINDER

BUSHING - shaft

2шт.

11

H749077

OIL SEAL

- oil

2шт.

12

H89631

BEARING

SHAFT - roller

1шт.

13

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

8шт.

14

230-42110

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 inch NC

8шт.

H563254

ADJUSTER

CYLINDER ASSEMBLY - track adjusting, Includes: Ref. 15 - 19

2шт.

15

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

16

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

17

219-66

LUBE NIPPLE,1/8"-27 NPT, Dustproof

FITTING - grease, straight, with cap, 1/8 PT x 1 inch

1шт.

18

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

Inner -210, 70 Duro, .734" ID x .139" Thk

1шт.

19

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

-022, 70 Duro, .989" ID x .070" Thk, Outer

1шт.

20

100-11156

SNAP RING,#156, Ext

Ring, Snap, #156, Ext

4шт.

21

H148726

DRIVE SPROCKET

SPROCKET - track drive

2шт.
