(5-02) - TRACK ASSEMBLIES, USED ON MODELS WITH STEEL TRACKS ONLY

Запчасти Case TF300 (5-02) - TRACK ASSEMBLIES, USED ON MODELS WITH STEEL TRACKS ONLY (11) - TRACKS/STEERING

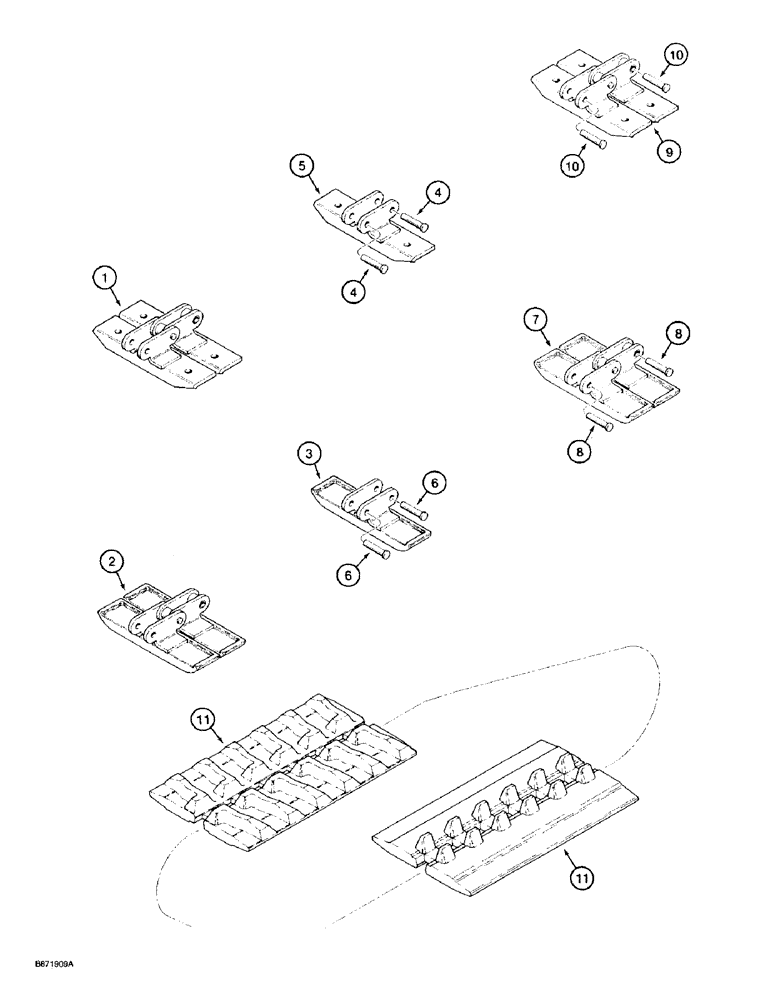

Схема запчастей Case TF300 - (5-02) - TRACK ASSEMBLIES, USED ON MODELS WITH STEEL TRACKS ONLY (11) - TRACKS/STEERING
11
10
6
6
5
7
8
2
10
3
8
11
4
4
9
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

H545129

TRACK CHAIN

TRACK - steet, 10 inch Hi-Floatation, street pad

2шт.

2

H545160

SHOE (ASSY)

TRACK - steel, 10 inch steel cleat, cleat pad

2шт.

3

H551572

ANCHOR

KIT - half link repair section, 10 inch steel cleat, street pad, Includes: Ref. 4

1шт.

4

H148676

LARGE PIN

PIN - connecting

2шт.

5

H551580

PACKAGE

KIT - half link repair section, 10 inch steel cleat, cleat pad, Includes: Ref. 6

1шт.

6

H148676

LARGE PIN

PIN - connecting

2шт.

7

H545145

SHOE (ASSY)

KIT - repair section, 10 inch street pad, Includes: Ref. 8

1шт.

8

H148676

LARGE PIN

PIN - connecting

2шт.

9

H545186

SHOE (ASSY)

KIT - repair section, 10 inch street cleat, Includes: Ref. 10

1шт.

10

H148676

LARGE PIN

PIN - connecting

2шт.

11

H437657

TRACK CHAIN

TRACK - rubber

2шт.
