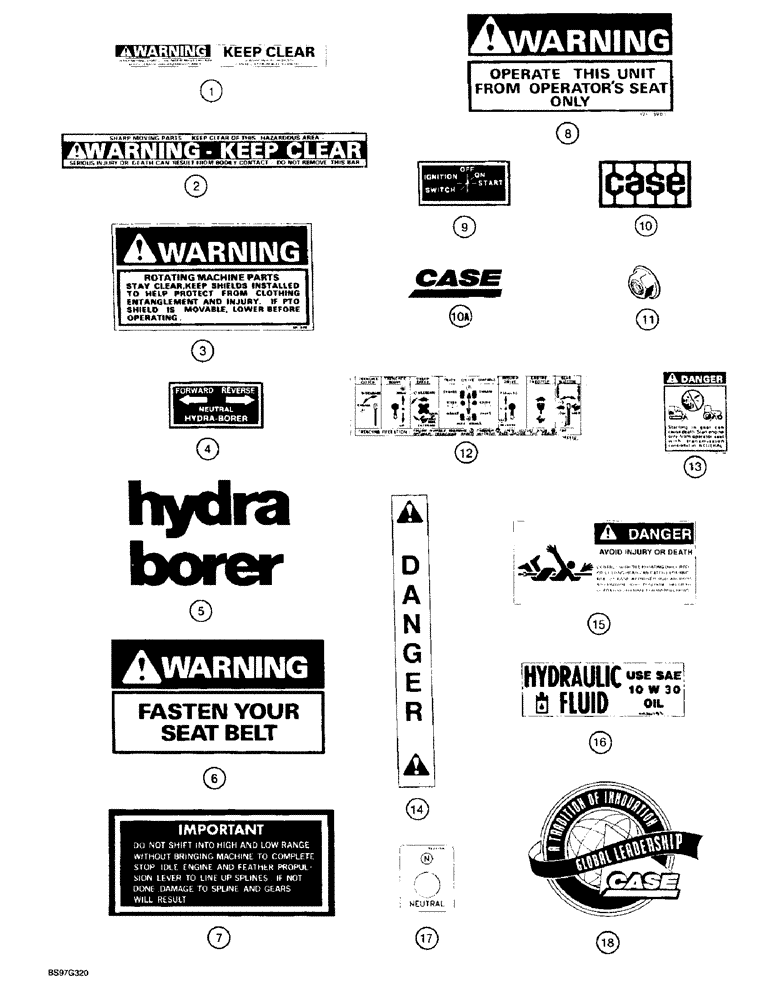

Запчасти Case TF300 (9-90) - DECALS (09) - CHASSIS/ATTACHMENTS

1

H438909

DECAL

- Danger, sharp moving parts, keep clear, 60 x 470 mm long

2шт.

2

321-6260

DECAL

- Warning, keep clear, sharp moving parts

2шт.

3

321-6715

DECAL

- Warning, rotating machine parts

2шт.

4

321-5663

DECAL

- hydra-borer control pattern

1шт.

5

H427880

DECAL

- hydra-borer

1шт.

5

179248A1

DECAL

- hydra-borer, gray

1шт.

6

321-3217

DECAL

- Warning, fasten your seat belt

1шт.

7

H190272

DECAL

- Important, do not shift into high and low range

1шт.

8

321-3905

DECAL

- Warning, operate this unit from operator's seat only

1шт.

9

321-6396

DECAL

- ignition switch, off/on/start

1шт.

10

321-4739

EMBLEM

- Case, on grille, if used

1шт.

10a

186989A1

EMBLEM

- Case, on grille, if used

1шт.

11

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - push-on type

2шт.

12

H434587

DECAL

- trenching operation, brown with white letters

1шт.

12

179247A1

DECAL

- trenching operation, gray with white letters

1шт.

13

321-7040

DANGER DECAL

DECAL, DANGER, Starting in gear can cause death

1шт.

14

H438910

DECAL

- Danger

1шт.

15

124016A1

DECAL

- Danger, avoid injury or death, rotating drill rod

2шт.

16

H436793

DECAL

- hydraulic fluid

1шт.

17

242335A1

DECAL

- warning lights

1шт.

18

279386A1

DECAL

- a tradition of innovation, global leadership, Heritage special

2шт.

19

8-43270

INSTRUCTION

SHEET - decal instruction, not shown

1шт.

PART# 283608A1 IS WARNING DECAL SAYS "WARNING, HOT SURFACE HAZARD, KEEP CLEAR" HAS DIAGRAM OF A HAND OVER A HOT SURFACE.

1шт.
