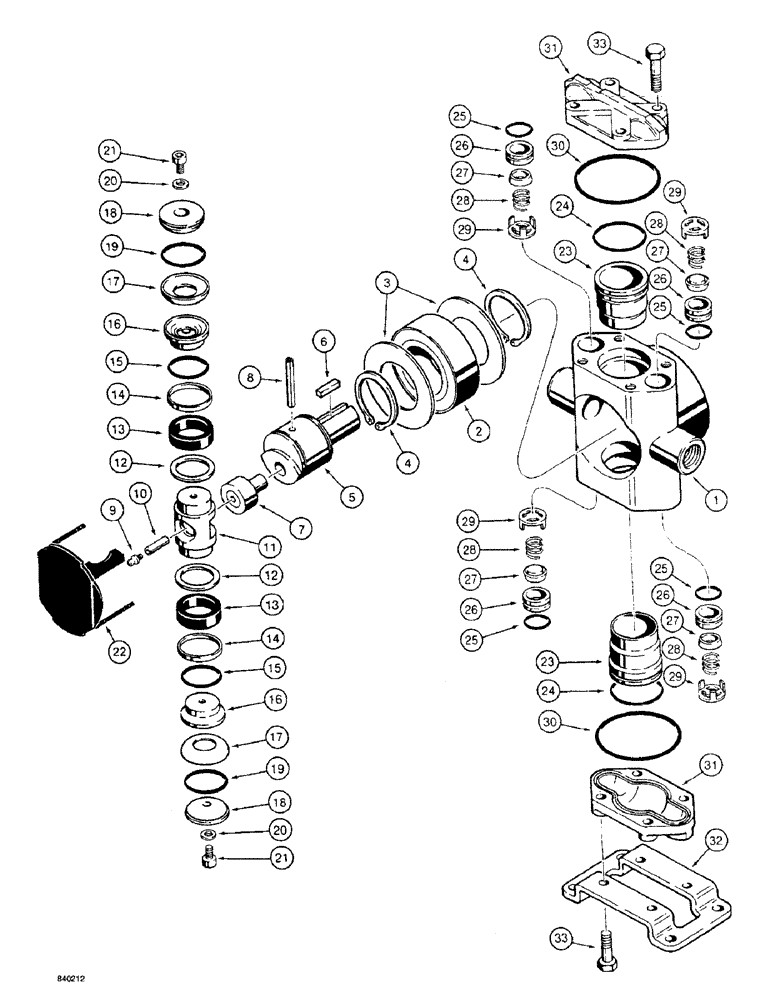

Запчасти Case TF300 (9-76) - HYDRA-BORER WATER PUMP (09) - CHASSIS/ATTACHMENTS

H668442

PUMP, WATER

PUMP ASSEMBLY - water, hydra-borer, Includes: Ref. 1 - 33

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

2

NSS

NOT SOLD SEPARAT

BEARING - ball, main

1шт.

3

NSS

NOT SOLD SEPARAT

RING - slinger

2шт.

4

100-11177

SNAP RING,#177, Ext

Ring, Snap, , bearing #177, Ext

2шт.

5

NSS

NOT SOLD SEPARAT

SHAFT - crank

1шт.

6

3312AB

KEY

- crankshaft

1шт.

7

NSS

NOT SOLD SEPARAT

BEARING - cam

1шт.

8

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, , Cam bearing 3/16" x 1 1/2", Slotted

1шт.

9

219-17

LUBE NIPPLE,3/16" NPTF

GREASE FITTING - straight, 3/16", drive x 17/32", Cam bearing

1шт.

10

NSS

NOT SOLD SEPARAT

TUBE - grease fitting extension

1шт.

11

NSS

NOT SOLD SEPARAT

ROD - connecting, pump

1шт.

12

N8476

OIL SEAL

RING - support

2шт.

13

N8475

GUIDE

- piston

2шт.

14

NSS

NOT SOLD SEPARAT

SEAL - piston ring

2шт.

Part of piston cup kit P/N N8474

1шт.

15

238-5128

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

2шт.

Part of piston cup kit P/N N8474

1шт.

16

NSS

NOT SOLD SEPARAT

PLATE - piston, cup backing

2шт.

17

NSS

NOT SOLD SEPARAT

CUP - piston

2шт.

Part of piston cup kit P/N N8474

1шт.

18

NSS

NOT SOLD SEPARAT

SPREADER - piston cup

2шт.

19

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

2шт.

Part of piston cup kit P/N N8474

1шт.

20

NSS

NOT SOLD SEPARAT

GASKET - washer

2шт.

Part of piston cup kit P/N N8474

1шт.

21

64-48

SCREW

BOLT - slotted, 1/4 NC x 1/2 inch, grade 2

2шт.

Part of piston cup kit P/N N8474

1шт.

22

N8473

BEARING COVER

COVER - bearing

1шт.

23

N8471

SLEEVE

- cylinder

2шт.

24

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

2шт.

N8472

VALVE

ASSEMBLY - pump, Includes: Ref. 25 - 29

4шт.

25

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

-019, 70 Duro, .801" ID x .070" Thk

1шт.

26

NSS

NOT SOLD SEPARAT

SEAT - valve

1шт.

27

NSS

NOT SOLD SEPARAT

POPPET - valve

1шт.

28

NSS

NOT SOLD SEPARAT

SPRING - valve

1шт.

29

NSS

NOT SOLD SEPARAT

GUIDE - valve

1шт.

30

238-5236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

2шт.

31

NSS

NOT SOLD SEPARAT

HEAD - cylinder

2шт.

32

NSS

NOT SOLD SEPARAT

BASE - mounting

1шт.

33

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

8шт.

N8474

CUP

KIT - piston cup, Includes: Refs. 14, 15, 17 ,19, 20 and 21

1шт.
