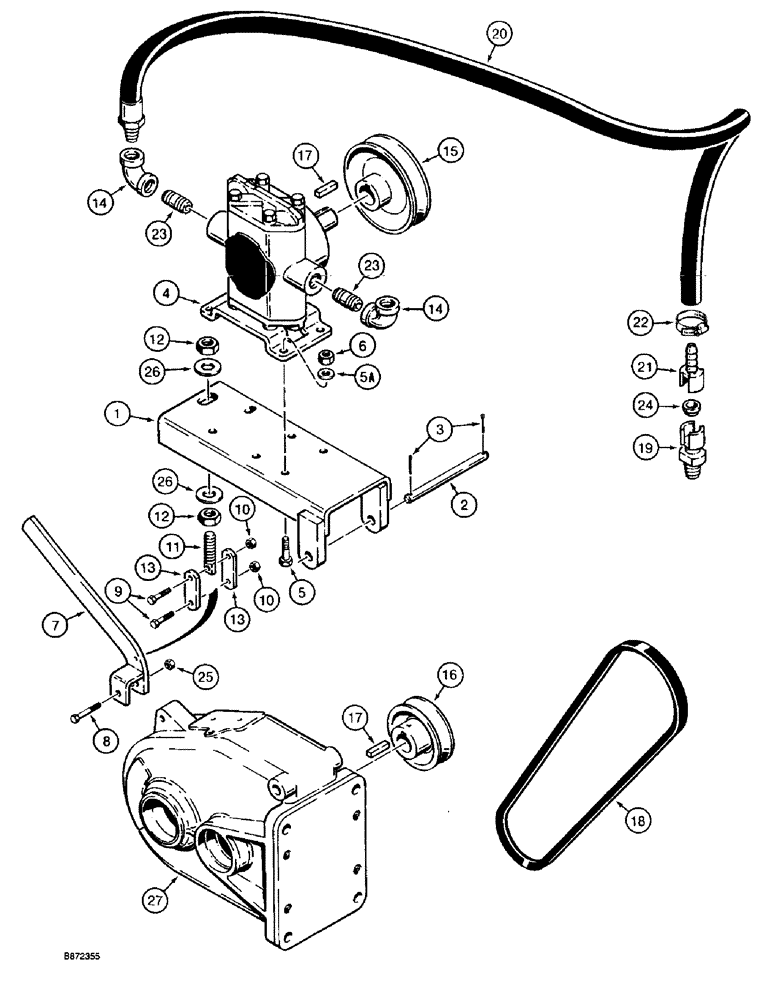

Запчасти Case TF300 (9-74) - HYDRA-BORER WATER PUMP MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H511162

SUPPORT

BRACKET - mounting, water pump

1шт.

Part of Water Pump Kit, P/N H668483

1шт.

2

H71225

PIN

- special, bracket mounting

1шт.

Part of Water Pump Kit, P/N H668483

1шт.

3

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

Part of Water Pump Kit, P/N H668483

1шт.

4

H668442

PUMP, WATER

PUMP ASSEMBLY - water (See Figure 9-76)

1шт.

Part of Water Pump Kit, P/N H668483

1шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

Part of Water Pump Kit, P/N H668483

1шт.

5a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

Part of Water Pump Kit, P/N H668483

1шт.

6

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

4шт.

Part of Water Pump Kit, P/N H668483

1шт.

7

H665935

LEVER

- belt adjusting

1шт.

Part of Water Pump Kit, P/N H668483

1шт.

8

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

Part of Water Pump Kit, P/N H668483

1шт.

10

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex, jam, 1/4 inch NC

2шт.

Part of Water Pump Kit, P/N H668483

1шт.

11

H71233

STUD

- special, belt adjuster

1шт.

Part of Water Pump Kit, P/N H668483

1шт.

12

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex, jam, 5/8 inch NF

2шт.

Part of Water Pump Kit, P/N H668483

1шт.

13

H71241

DRAG LINK

LINK - belt adjuster

2шт.

Part of Water Pump Kit, P/N H668483

1шт.

14

221-378

ELBOW,90 Degree, 3/4" NPT

- pipe, 90 degree, 3/4 inch

2шт.

Part of Water Pump Kit, P/N H668483

1шт.

15

H71266

SHEAVE

- driven

1шт.

Part of Water Pump Kit, P/N H668483

1шт.

16

H71258

PULLEY

SHEAVE - drive

1шт.

Part of Water Pump Kit, P/N H668483

1шт.

17

T13450

KEY

- square, 1/4 x 1-1/4 inch long

2шт.

Part of Water Pump Kit, P/N H668483

1шт.

18

H71282

BELT

- pump drive

1шт.

Part of Water Pump Kit, P/N H668483

1шт.

19

H78311

CLAMP

COUPLER - quick disconnect, 3/4 inch PT adapter

1шт.

Part of Water Pump Kit, P/N H668483

1шт.

20

H78295

HOSE

- 914 mm (36 inch) long, water

1шт.

Part of Water Pump Kit, P/N H668483

1шт.

21

H78303

COUPLING

COUPLER - quick disconnect, 3/4 inch ID hose barb

1шт.

Part of Water Pump Kit, P/N H668483

1шт.

22

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

1шт.

Part of Water Pump Kit, P/N H668483

1шт.

23

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - straight, 3/4 PT x 1-3/8 inch

2шт.

Part of Water Pump Kit, P/N H668483

1шт.

24

H88104

GASKET

- coupler

1шт.

Part of Water Pump Kit, P/N H668483

1шт.

25

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

1шт.

Part of Water Pump Kit, P/N H668483

1шт.

26

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

Part of Water Pump Kit, P/N H668483

1шт.

27

H666875

GEARBOX ASSY

GEARBOX ASSEMBLY - Hydra-Borer (See Figure 9-72), for mounting hardware see Figure 9-70

1шт.

H668483

ATTACHMENT

KIT - water pump attaching, includes all references, except Ref. 27

1шт.

9

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

Part of Water Pump Kit, P/N H668483

1шт.
