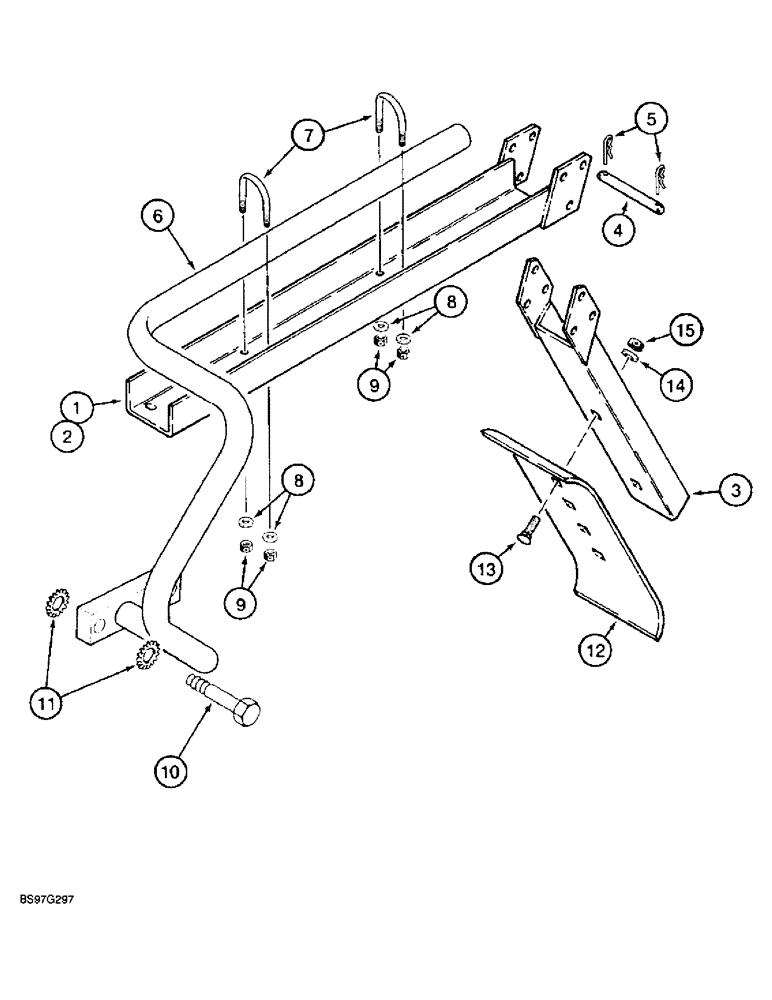

Запчасти Case TF300 (9-64) - CRUMBER BOOMS, FOR FLUSH DIG ATTACHMENT (09) - CHASSIS/ATTACHMENTS

1

H502989

CHANNEL

BOOM - crumber, 737 mm (2-1/2 foot) depth, if used

1шт.

2

H650218

CHANNEL

BOOM - crumber, 1118 mm (3-1/2 foot) depth, if used

1шт.

3

H502997

CHANNEL

- crumber

1шт.

4

H41731

AXLE PIN

PIN - hinge

2шт.

5

432-1216

COTTER PIN,3/16" x 1"

2шт.

6

H665216

GUIDE

BAR - crumber

1шт.

7

H33316

U-BOLT

- 3/8 inch

2шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

9

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

4шт.

10

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

2шт.

11

493-41078

LOCK WASHER,Ext Tooth, 3/4"

WASHER - external tooth lock, 3/4 inch

4шт.

12

H32813

BLADE

- crumber, 152 mm (6 inch) width

1шт.

12

H32821

BLADE

- crumber, 203 mm (8 inch) width

1шт.

12

H32839

BLADE

- crumber, 254 mm (10 inch) width

1шт.

12

H32847

BLADE

- crumber, 305 mm (12 inch) width

1шт.

12

H41780

BLADE

- crumber, 356 mm (14 inch) width

1шт.

12

H41798

BLADE

- crumber, 406 mm (16 inch) width

1шт.

13

411-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1", G2

2шт.

14

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch

2шт.

15

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

2шт.
