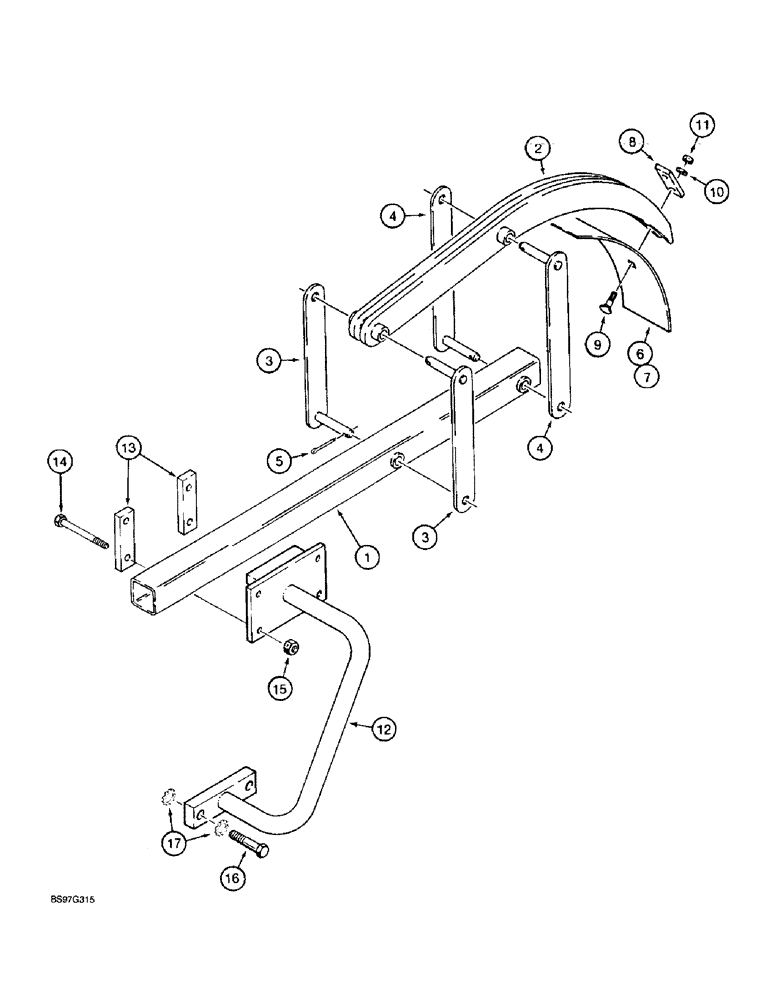

Запчасти Case TF300 (9-62) - CRUMBER BOOM AND ATTACHMENTS, USED ON MODELS WITH 40 AND 45 (09) - CHASSIS/ATTACHMENTS

1

H659177

TUBE

- crumber, 4 foot depth

1шт.

2

H659201

SUPPORT

BRACKET - crumber blade, short

1шт.

3

H659144

LINK

- crumber boom, short

2шт.

4

H659151

LINK

- crumber boom, long

2шт.

5

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

4шт.

6

H127480

BLADE

- crumber, 6 inch wide, if used

1шт.

7

H60103

BLADE

- crumber, 10 inch wide, if used

1шт.

8

H309450

SPACER

PLATE - spacer

1шт.

9

411-864

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 2

BOLT - carriage, 1/2 NC x 4 inch, grade 2

2шт.

10

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

11

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

2шт.

12

H607986

ARM

HANDLE - grab

1шт.

13

H309450

SPACER

PLATE - spacer

2шт.

14

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- hex, 1/2 NC x 4-1/4 inch

4шт.

15

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

4шт.

16

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

2шт.

17

493-41078

LOCK WASHER,Ext Tooth, 3/4"

WASHER - external tooth lock, 3/4 inch

4шт.
