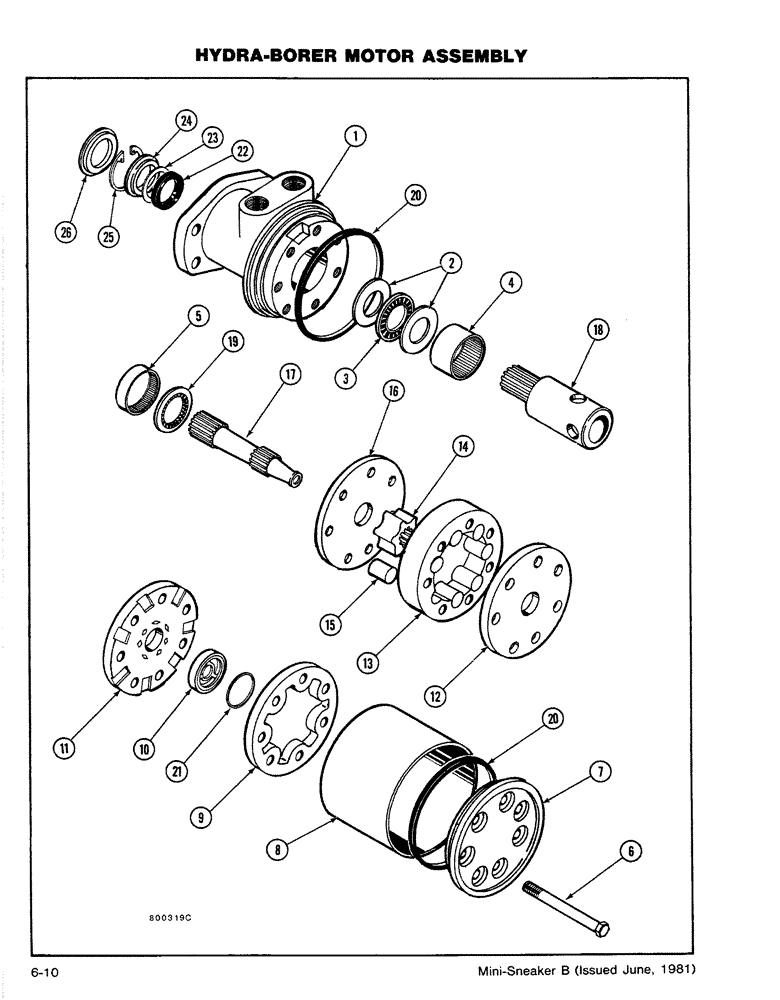

Запчасти Case CASE (6-10) - HYRDA-BORER MOTOR ASSEMBLY (18) - MISCELLANEOUS

D58412

HYDRAULIC MOTOR

HYDRA-BORER MOTOR ASSEMBLY, Includes: Ref. 1 - 26

1шт.

D59696

COVER

ASSEMBLY - Mounting, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - Cover

1шт.

2

D60861

WASHER

- Thrust

2шт.

3

D60860

THRUST BEARING,1.366" ID x 2.24" OD x 0.125"

BEARING - Thrust

1шт.

4

A32424

NEEDLE BEARING,1.875" ID x 2.2505" OD x 1"

BEARING - Needle, Long

1шт.

5

D60862

NEEDLE BEARING

BEARING - Needle, Short

1шт.

6

28-662

BOLT,Hex, 3/8" - 24 x 3-7/8", Gr 8

- NF HH (3/8 x 3 7/8)

7шт.

7

D60858

COVER

- End

1шт.

8

C18092

SLEEVE

HOUSING - Center

1шт.

D60857

COMMUTATOR

SET, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

RING - Commutator

1шт.

10

NSS

NOT SOLD SEPARAT

ROTOR - Commutator

1шт.

11

D59700

TUBE ASSY.

MANIFOLD

1шт.

12

C14832

PLATE

- Manifold

1шт.

C18110

ROTOR

SET, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - Rotor

1шт.

14

NSS

NOT SOLD SEPARAT

ROTOR

1шт.

15

NSS

NOT SOLD SEPARAT

ROLLER

7шт.

16

C14830

PLATE

- Wear

1шт.

17

D59699

SHAFT

- Drive Link

1шт.

18

D59697

SHAFT

- Coupling

1шт.

19

D59698

THRUST BEARING,1.25" ID x 2.247" OD x 0.1094"

BEARING - Thrust

1шт.

C19037

SEAL

KIT - Seal Repair, Includes: Ref. 20 - 26

1шт.

20

C18382

RING

SEAL - O-Ring

2шт.

21

NSS

NOT SOLD SEPARAT

RING - Bonded

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - Inner Oil

1шт.

23

NSS

NOT SOLD SEPARAT

SHIM - Seal

1шт.

24

NSS

NOT SOLD SEPARAT

SPACER - Seal

1шт.

25

NSS

NOT SOLD SEPARAT

RING - Retainer

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL - Dirt

1шт.
