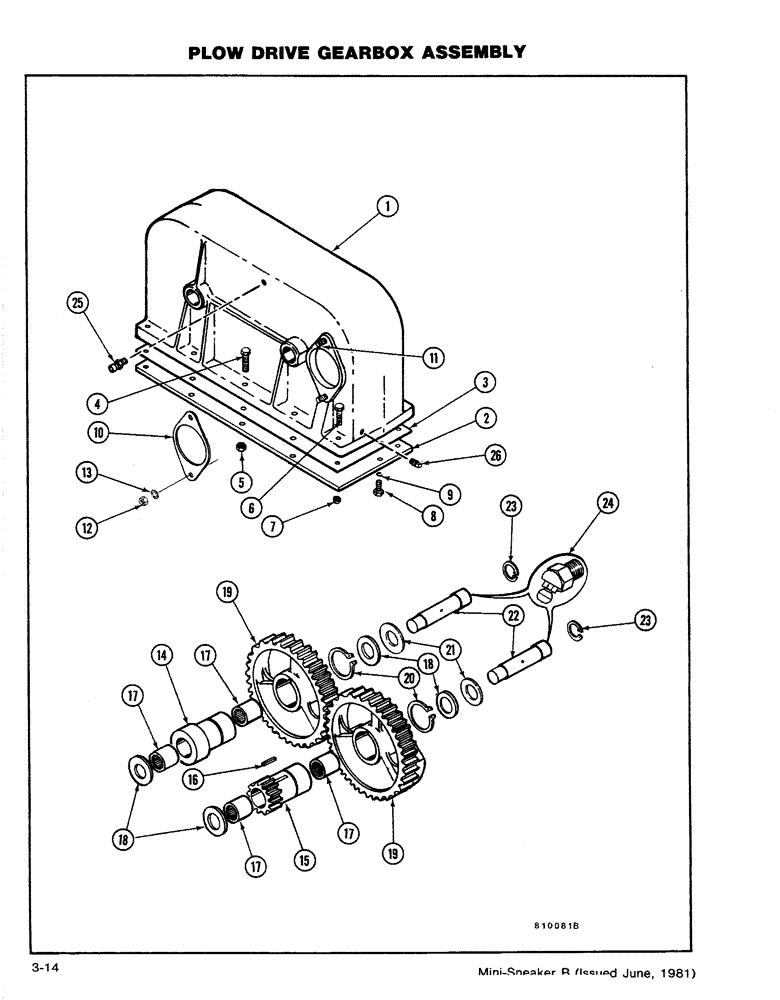

Запчасти Case CASE (3-14) - PLOW DRIVE GEARBOX ASSEMBLY (18) - MISCELLANEOUS

H530204

GEAR WHEEL

PLOW DRIVE GEARBOX ASSEMBLY, Includes: Ref. 1 - 9

1шт.

1

H113209

CASE

HOUSING - Gearbox

1шт.

2

H113274

PLATE

- Cover

1шт.

3

H113266

GASKET

GASKET - Cover Plate

1шт.

4

113-509

BOLT,Hex, 9/16" - 12 x 2", Gr 5

6шт.

5

131-1183

SCREW,Prev Torque, Hex, 9/16" - 12, Gr A

NUT - NC Hex C/L (9/16)

6шт.

6

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

7

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex C/L (3/8)

4шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

H32375

GASKET

- Motor

1шт.

11

113-348

BOLT

- NC HH (7/16), Motor Mounting

2шт.

12

131-1326

JAM NUT,Jam, 3/8"-24

NUT - NC Hex C/L (7/16), Motor Mounting

2шт.

13

193-97

LOCK WASHER,Ext Tooth, 7/16"

WASHER, LOCK, , Motor Mounting Ext Tooth, 7/16"

2шт.

14

H113233

HUB

- Bearing

1шт.

15

H113225

HUB

- Drive Bearing

1шт.

16

H120550

KEY

- Square (5/16 x 1)

1шт.

17

H748210

NEEDLE BEARING,Needle, 31.75mm ID x 44.45mm OD x 31.75mm W

BEARING

4шт.

18

H113241

BEARING WASHER

SHIM - Hub (0.0134)

1шт.

18

H126201

WASHER

SHIM - Hub (0.059)

1шт.

18

H159160

WASHER

SHIM - Hub (0.095)

1шт.

19

H113217

GEAR

- Counterweight, Includes: Ref. 20

2шт.

20

F40807

SNAP RING,#225, Ext

RING, Snap, #225, Ext

2шт.

21

H357517

BEARING WASHER

WASHER

2шт.

22

H113258

PIN

- Retainer, Includes: Ref. 23

2шт.

23

A21145

SNAP RING,1.25, Int, #125

RING, Snap, 1.25", Int, #125

2шт.

24

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - Grease (45 degrees)

2шт.

25

H58826

BREATHER

1шт.

26

221-11

PLUG,Sq Hd, 1/8"-27

- Drain

1шт.
