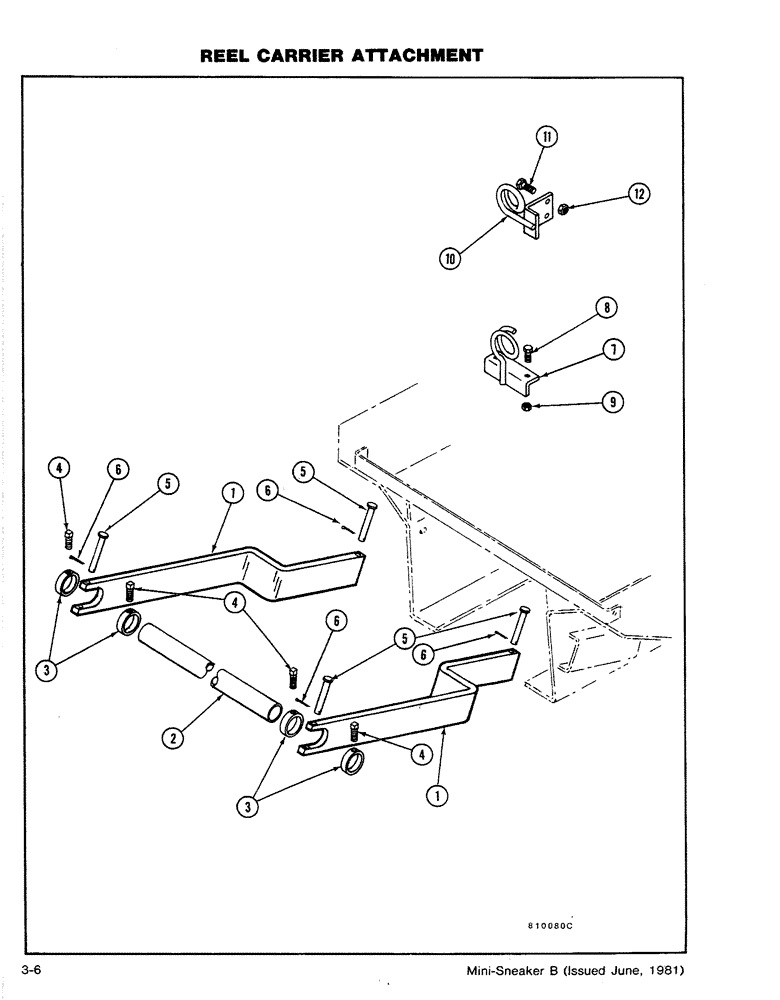

Запчасти Case CASE (3-06) - REEL CARRIER ATTACHMENT (18) - MISCELLANEOUS

1

H347948

ARM

- Reel Carrier

2шт.

2

H350363

PIPE

- Reel Mtg

1шт.

3

H350355

COLLAR

- Stop

4шт.

4

85-616

SET SCREW,Sq Hd, 3/8"-16 x 1"

SCREW - Square Head Set (3/8 x 1), Includes: Ref. 5 and 6

4шт.

5

H230243

CLEVIS COUPLING

PIN - Clevis

4шт.

6

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

7

H633065

GUIDE

- Cable (Attaches to Hood), Includes: Ref. 8 and 9

1шт.

8

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

9

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

2шт.

10

H633081

GUIDE

- Cable, Serial Range: (Attaches-ROPS)

1шт.

11

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

12

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex C/L (3/8)

2шт.
