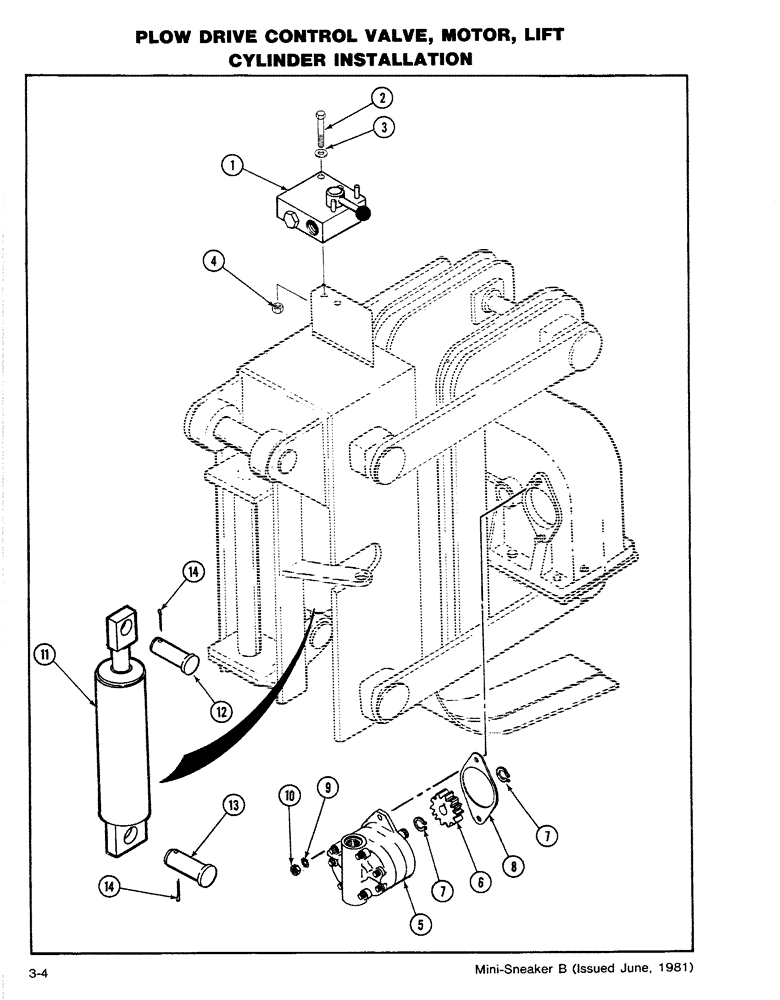

Запчасти Case CASE (3-04) - PLOW DRIVE CONTROL VALVE, MOTOR, LIFT CYLINDER INSTALLATION (18) - MISCELLANEOUS

1

H632588

SELECTOR

PLOW DRIVE CONTROL VALVE ASSEMBLY - (See figure 3-20), Includes: Ref. 2 - 4

1шт.

2

113-11

X

BOLT - NC HH (5/16 x 2 1/4)

2шт.

3

195-21

WASHER,5/16"

flat, 5/16"

2шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/160

2шт.

H545509

MOTOR

PLOW DRIVE MOTOR AND GEAR ASSEMBLY, Includes: Ref. 5 - 10

1шт.

5

H529305

GEAR WHEEL

PLOW DRIVE MOTOR ASSEMBLY - (See figure 3-16)

1шт.

5

H654806

GEAR WHEEL

PLOW DRIVE MOTOR ASSEMBLY - (See figure 3-18)

1шт.

6

H113282

GEAR

- Motor

1шт.

7

A27521

SNAP RING,#68, Ext

RING, Snap, #68, Ext

2шт.

8

H32375

GASKET

- Plow Drive Motor

1шт.

9

193-97

LOCK WASHER,Ext Tooth, 7/16"

WASHER, LOCK, Ext Tooth, 7/16"

2шт.

10

131-1129

LOCK NUT,7/16"-14, GA

NUT - NC Hex C/L (7/16)

2шт.

11

H504076

CYLINDER BLOCK

PLOW LIFT CYLINDER ASSEMBLY - (See figure 3-22), Includes: Ref. 12 - 14

1шт.

12

H143974

CLEVIS COUPLING

PIN - Clevis (1 x 2 7/8)

1шт.

13

H126052

CLEVIS

PIN - Clevis (1 1/8 x 2 15/16)

1шт.

14

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

2шт.
