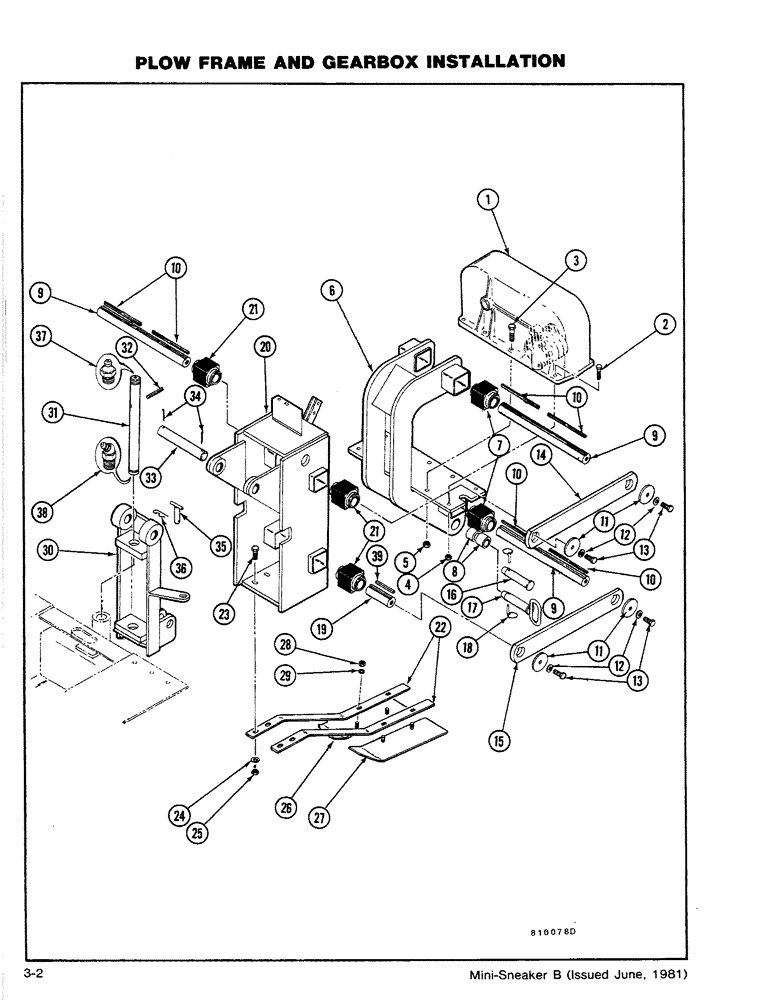

Запчасти Case CASE (3-02) - PLOW FRAME AND GEARBOX INSTALLATION (18) - MISCELLANEOUS

1

H530204

GEAR WHEEL

PLOW DRIVE GEARBOX ASSEMBLY - (See figure 3-14), Includes: Ref. 2 - 5

1шт.

2

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

3

113-509

BOLT,Hex, 9/16" - 12 x 2", Gr 5

6шт.

4

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex C/L (3/8)

4шт.

5

131-1218

LOCK NUT,9/16"-12, GC

NUT, LOCK, 9/16"-12, GC

6шт.

6

H661025

MOUNTING PARTS

BLADE MOUNTING ASSEMBLY, Includes: Ref. 7 - 25

1шт.

Order H634964 frame QTY. (1)

1шт.

7

H235077

BUSHING

- Rubber

4шт.

8

H50435

BUSHING,28.91mm ID x 36.63mm OD x 25.4mm L

- Blade

4шт.

9

H241398

SHAFT

3шт.

10

H393785

KEY

- Square

6шт.

11

H165720

WASHER

SPACER

10шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

10шт.

13

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

10шт.

14

H187583

ARM

- Parallel (Upper)

2шт.

Type 3 subs to P/N H663401.

1шт.

15

H334847

BAR

ARM - Parallel (Lower)

2шт.

Ref.15 subs to Ref., 20 lift frame assembly.

1шт.

16

H393843

PIN

- Blade Attaching, Upper

1шт.

17

H651000

PIN

- Blade Attaching, Lower

1шт.

18

A30338

PIN

- Klik

2шт.

19

H190181

SHAFT

2шт.

20

H661256

FRAME

PLOW LIFT FRAME ASSEMBLY, Includes: Ref. 21

1шт.

21

H235077

BUSHING

- Rubber

4шт.

22

H393694

SPRING

- Shoe

2шт.

23

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

24

195-533

WASHER,1/2", SAE

- Flat (1/2)

4шт.

25

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

4шт.

26

H634998

SHOE

Includes: Ref. 28 and 29

1шт.

27

H634980

SHOE

Includes: Ref. 28 and 29

1шт.

28

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex C/L (3/8)

4шт.

29

195-525

WASHER,3/8", SAE

4шт.

30

H635128

SUPPORT

FRAME - Plow Pivot

1шт.

31

H241133

AXLE PIN

PIN - Pivot

1шт.

32

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

1шт.

33

H382457

AXLE PIN

PIN - Lift (Replaces H241406)

1шт.

34

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

2шт.

35

H582585

LOCK

PIN - Lock

1шт.

36

A70250

PIN

- Hair

1шт.

37

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - Grease

1шт.

38

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - Grease

1шт.

39

H202192

KEY

- Square (3/16 x 3 3/4)

2шт.
