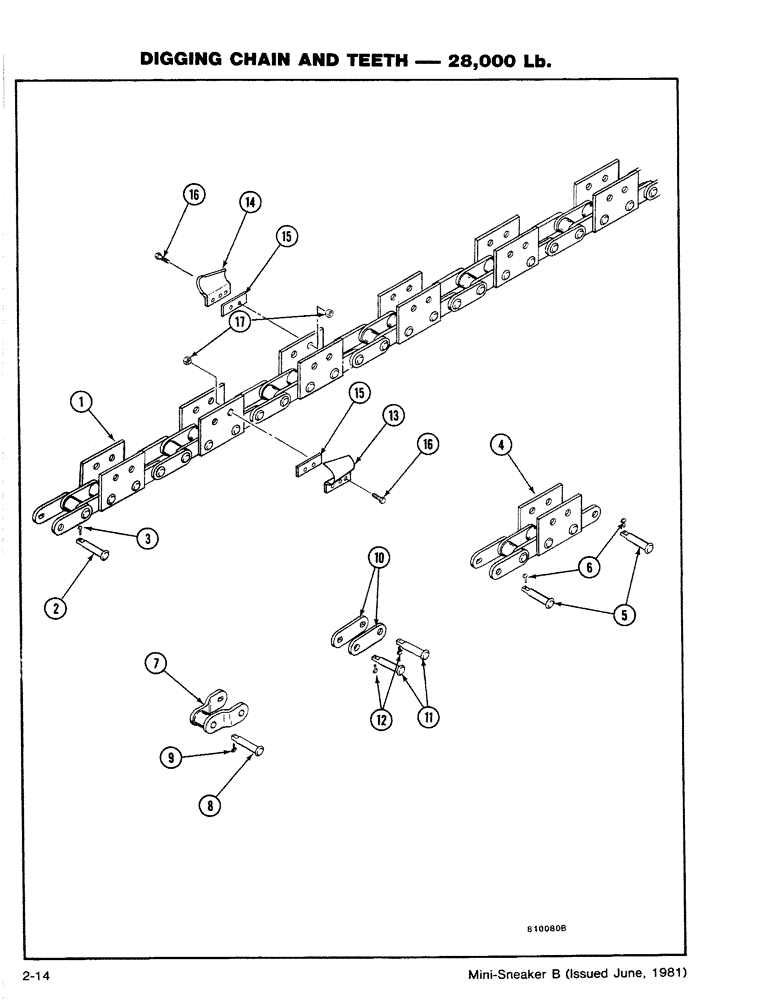

Запчасти Case CASE (2-14) - DIGGING CHAIN AND TEETH - 28,000 LB. (18) - MISCELLANEOUS

1

H501791

CHAIN (CE)

DIGGING CHAIN ASSEMBLY - 56 Pitches, Includes: Ref. 2 and 3

1шт.

For 24 inch boom, order a total of 56 pitches of chain. For 36 inch boom, order a total of 72 pitches of chain. For 48 inch boom, order a total of 88 pitches of chain.

1шт.

1

H519462

CHAIN (AG)

DIGGING CHAIN ASSEMBLY - 8 Pitches, Includes: 2 and 3

1шт.

For 24 inch boom, order a total of 56 pitches of chain. For 36 inch boom, order a total of 72 pitches of chain. For 48 inch boom, order a total of 88 pitches of chain.

1шт.

2

H30072

CONNECTOR, ELEC

PIN - Connector, D-Shaped for a Rex Chain.

1шт.

If you are looking for the round pin for the Ballantine chain, you can order 253215A1 PIN.

1шт.

3

H85274

SPLIT PIN/SAFETY PIN

PIN - Keeper

1шт.

4

H502054

CHAIN (CE)

REPAIR SECTION ASSEMBLY - 4 Pitches, Includes: Ref. 5 and 6

1шт.

5

H30072

CONNECTOR, ELEC

PIN - Connector

2шт.

6

H85274

SPLIT PIN/SAFETY PIN

PIN - Keeper

2шт.

7

H59360

HALF-LINK

OFFSET LINK - 1 Pitch, Includes: Ref. 8 and 9

1шт.

8

H30072

CONNECTOR, ELEC

PIN - Connector

2шт.

9

HO85274

PIN - Keeper

2шт.

10

H504068

DRAG LINK

CONNECTOR LINK, Includes: Ref. 11 and 12

1шт.

11

H30072

CONNECTOR, ELEC

PIN - Connector

1шт.

12

H85274

SPLIT PIN/SAFETY PIN

PIN - Keeper

1шт.

13

H208363

TOOTH

- L.H.

1шт.

14

H208371

TOOTH

- R.H.

1шт.

15

H208355

SPACER

1шт.

16

114-252

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8, Full Thd

- NF HH (3/8 x 1 1/4) - Grade 8

1шт.

17

131-1133

NUT,3/8"-24, GC

NUT - NF Hex T/L (3/8) - Grade C

1шт.

257350A1

PIN

Ballantine chain 260, .565 x 2.718

1шт.

257351A1

PIN

Ballantine chain 325, .750 x 3.656

1шт.
