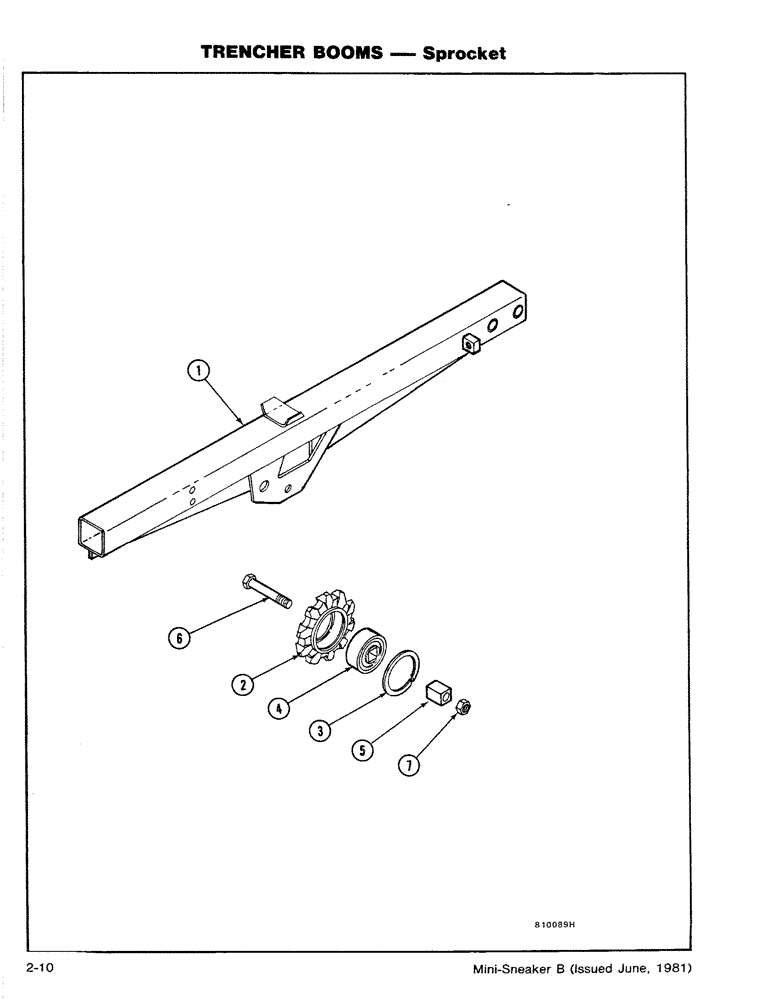

Запчасти Case CASE (2-10) - TRENCHER BOOMS - SPROCKET (18) - MISCELLANEOUS
№
Артикул
Название
Примечание
Количество
H564641
BOOM
AND SPROCKET ASSEMBLY - 24", Includes: Ref. 1 - 7
1шт.
1
H564377
BOOM
- 24"
1шт.
H503664
SPROCKET ASSY.
SPROCKET ASSEMBLY, Includes: Ref. 2 - 4
1шт.
2
H33563
DRIVE SPROCKET
SPROCKET
1шт.
3
H33837
RING
- Retainer
1шт.
4
H747139
BALL BEARING
BEARING
1шт.
H575894
SHAFT
KIT - Shaft, Includes: Ref. 5 - 7
1шт.
5
H232645
BUSHING
- Square
1шт.
6
113-601
BOLT,Hex, 5/8" - 11 x 3", Gr 5
1шт.
7
131-1130
LOCK NUT,5/8"-11, GA
NUT - NC Hex C/L (5/8)
1шт.
H564658
BOOM
AND SPROCKET ASSEMBLY - 36", Includes: Ref. 1 - 7
1шт.
1
H564849
BOOM
- 36"
1шт.
H503664
SPROCKET ASSY.
SPROCKET ASSEMBLY, Includes: Ref. 2 - 4
1шт.
2
H33563
DRIVE SPROCKET
SPROCKET
1шт.
3
H33837
RING
- Retainer
1шт.
4
H747139
BALL BEARING
BEARING
1шт.
H575894
SHAFT
KIT - Shaft, Includes: Ref. 5 - 7
1шт.
5
H232645
BUSHING
- Square
1шт.
6
113-601
BOLT,Hex, 5/8" - 11 x 3", Gr 5
1шт.
7
131-1130
LOCK NUT,5/8"-11, GA
NUT - NC Hex C/L (5/8)
1шт.
Выбрано товаров: 20
