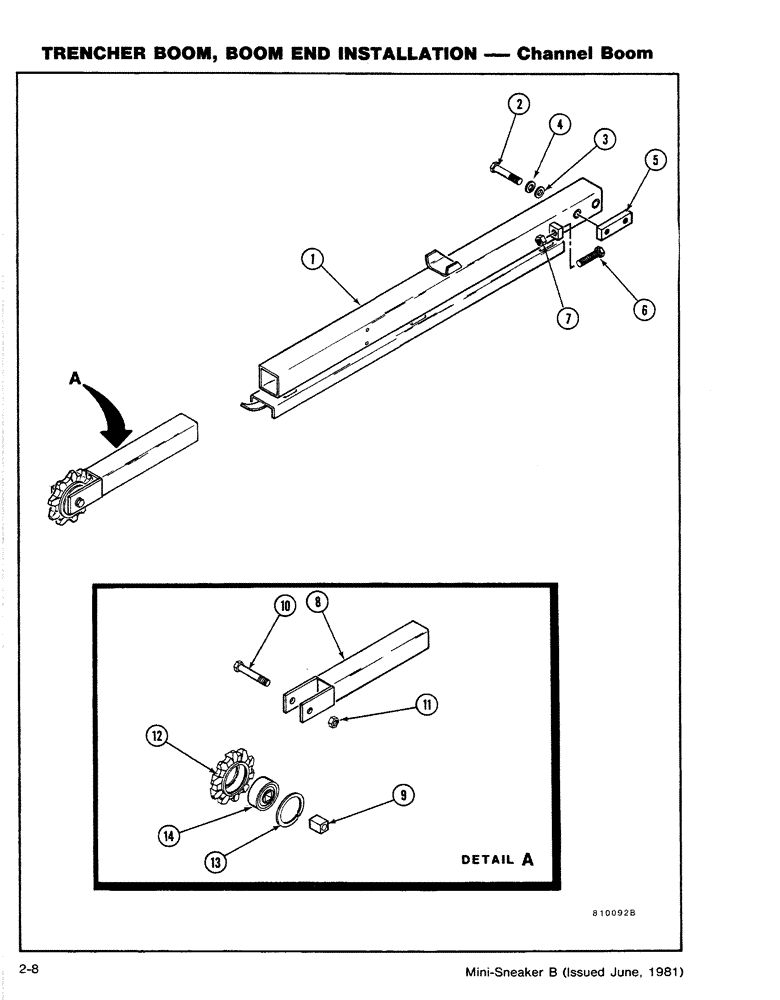

Запчасти Case CASE (2-08) - TRENCHER BOOM, BOOM END INSTALLATION - CHANNEL BOOM (18) - MISCELLANEOUS

1

TRENCHER BOOM - Channel (See figure 2-12), Includes: Ref. 2 - 5

1шт.

2

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

3

195-541

WASHER,5/8", SAE

- Flat (5/8)

2шт.

4

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

H306191

PLATE ASSY.

PLATE - Retainer

1шт.

6

H42473

ADJUSTMENT SCREW,Spcl, 1/2" - 13 x 3 3/4", Gr 5

BOLT - Adjusting

1шт.

7

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

H614644

BOOM

END ASSEMBLY, Includes: Ref. 8 - 14

1шт.

8

H613083

END ASSY.

BRACKET - Boom End

1шт.

H575894

SHAFT

KIT - Shaft, Includes: Ref. 9 - 11

1шт.

9

H232645

BUSHING

- Square

1шт.

10

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

11

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

1шт.

H503664

SPROCKET ASSY.

SPROCKET ASSEMBLY, Includes: Ref. 12 - 14

1шт.

12

H33563

DRIVE SPROCKET

SPROCKET

1шт.

13

H33837

RING

- Retainer

1шт.

14

H747139

BALL BEARING

BEARING

1шт.
