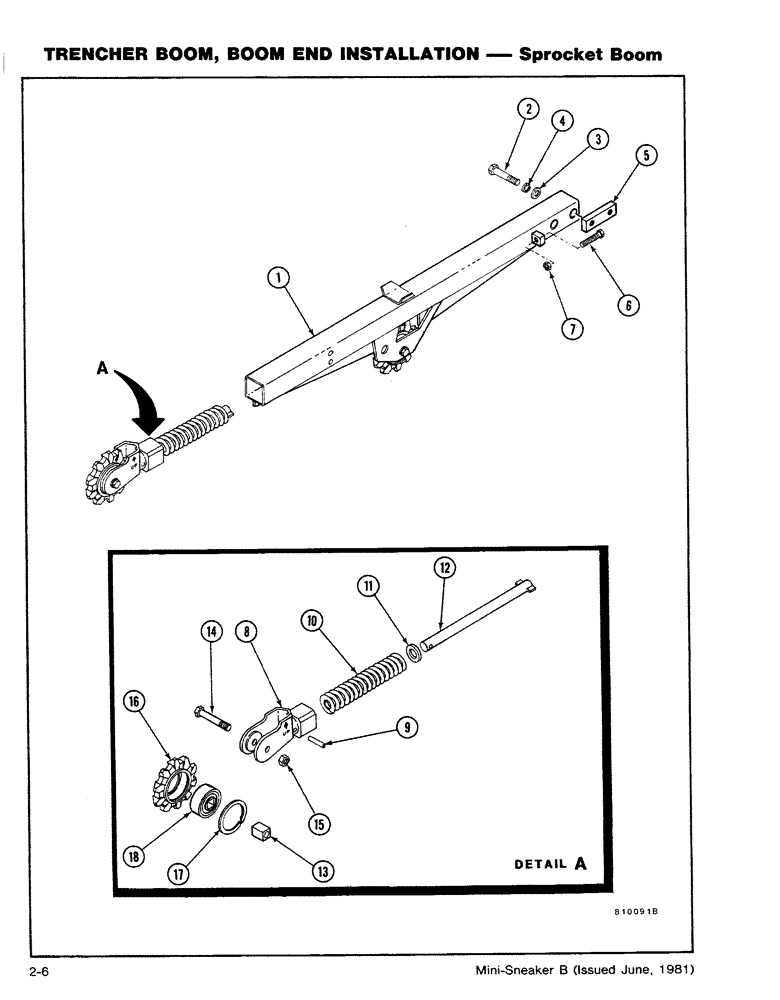

Запчасти Case CASE (2-06) - TRENCHER BOOM, BOOM END INSTALLATION - SPROCKET BOOM (18) - MISCELLANEOUS

1

TRENCHER BOOM - Sprocket (See figure 2-10), Includes: Ref. 2 - 5

1шт.

2

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

3

195-541

WASHER,5/8", SAE

- Flat (5/8)

2шт.

4

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

H306191

PLATE ASSY.

PLATE - Retainer

1шт.

6

H42473

ADJUSTMENT SCREW,Spcl, 1/2" - 13 x 3 3/4", Gr 5

BOLT - Adjusting

1шт.

7

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

H509828

BOOM

END ASSEMBLY, Includes: Ref. 8 - 12

1шт.

H509836

BOOM

BRACKET - Boom End Idler, Includes: Ref. 8 - 12

1шт.

8

H33829

BRACKET

MOUNTING - Idler

1шт.

9

138-177

LOCK PIN,3/8" x 2", Slotted

PIN, 3/8" x 2", Slotted

1шт.

10

H56713

VALVE SPRING

SPRING

1шт.

11

H34199

WASHER

- Spring Stop

1шт.

12

H509349

TUBE

GUIDE

1шт.

H575894

SHAFT

KIT - Shaft, Includes: Ref. 13 - 15

1шт.

13

H232645

BUSHING

- Square

1шт.

14

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

15

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

1шт.

H503664

SPROCKET ASSY.

SPROCKET ASSEMBLY, Includes: Ref. 16 - 18

1шт.

16

H33563

DRIVE SPROCKET

SPROCKET

1шт.

17

H33837

RING

- Retainer

1шт.

18

H747139

BALL BEARING

BEARING

1шт.
