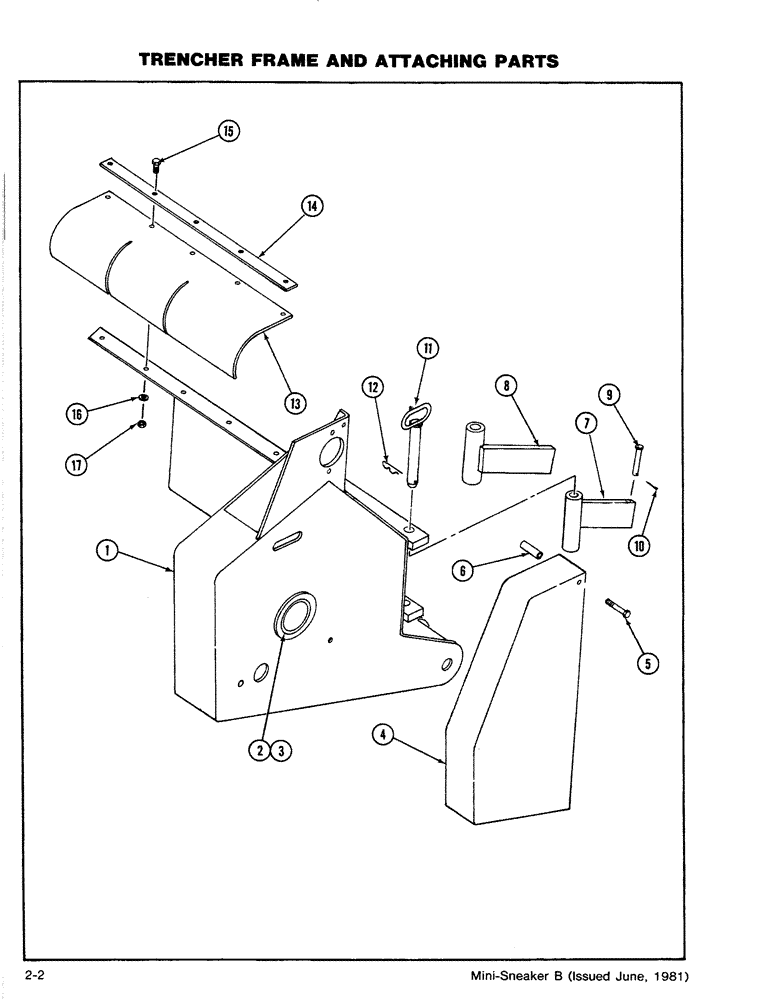

Запчасти Case CASE (2-02) - TRENCHER FRAME AND ATTACHING PARTS (18) - MISCELLANEOUS

1

H660142

CHASSIS

FRAME - Trencher, Includes: Ref. 2 and 3

1шт.

2

H413294

BUSHING

2шт.

3

219-3

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - Grease

2шт.

4

H660191

COVER

- Chain, Includes: Ref. 5 and 6

1шт.

5

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

3шт.

6

H413302

SPACER

3шт.

7

H660183

ARM

- Mounting

1шт.

8

H660175

ARM

- Mounting, Includes: Ref. 9 - 12

1шт.

9

H230243

CLEVIS COUPLING

PIN - Clevis

2шт.

10

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

11

H660209

PIN

- Mounting

2шт.

12

A70250

PIN

- Hair

2шт.

13

H297358

FLAP

- Dirt

1шт.

14

H290536

STRIP

STRAP - Dirt Flap, Includes: Ref. 15 - 17

1шт.

15

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

5шт.

16

195-521

WASHER,5/16", SAE

- Flat (5/16)

5шт.

17

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

5шт.
