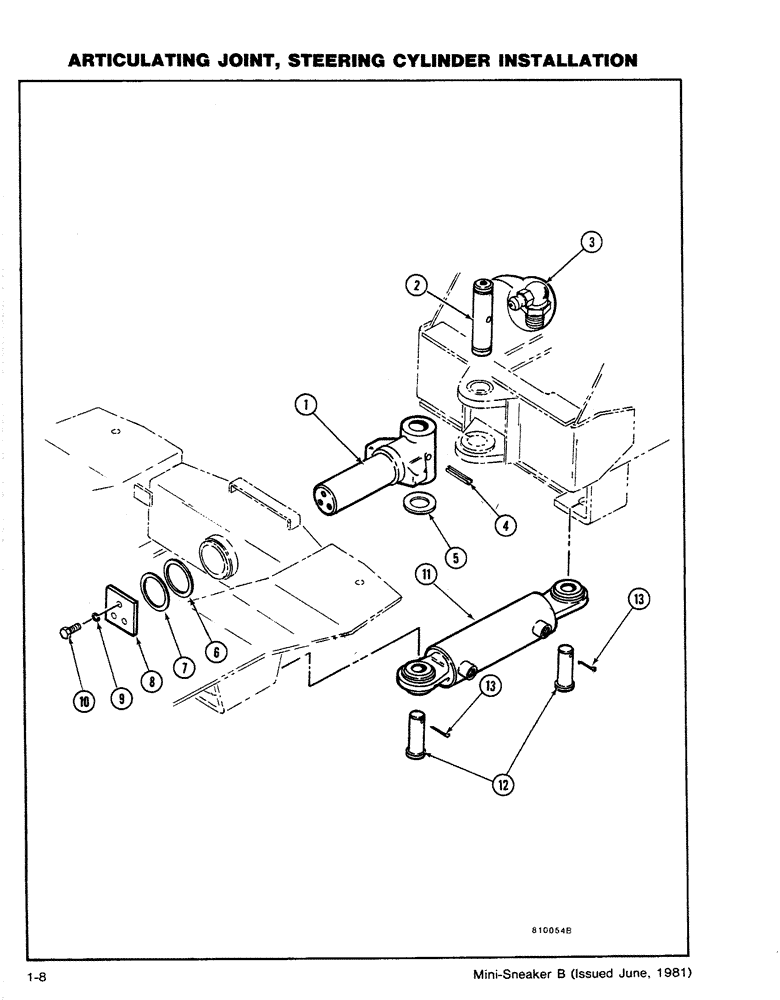

Запчасти Case CASE (1-08) - ARTICULATING JOINT, STEERING CYLINDER INSTALLATION (09) - CHASSIS

1

H359984

PIVOT ASSY.

SHAFT - Pivot

1шт.

2

H371054

PIVOT PIN

PIN - Pivot

1шт.

3

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

4

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

1шт.

5

H257915

SHIM,0.813mm Thk

1шт.

6

H191155

SHIM,.062" Thk

1шт.

7

H191148

SHIM,.031" Thk

1шт.

8

H182543

CYLINDER END CAP

CAP - Shaft

1шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

10

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

11

H624528

STEERING CYLINDER

ASSEMBLY - (See figure 1-56)

1шт.

12

H67272

PIN,25.3mm OD x 84.93mm L

PIN - Clevis (1 x 3)

2шт.

13

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

2шт.
