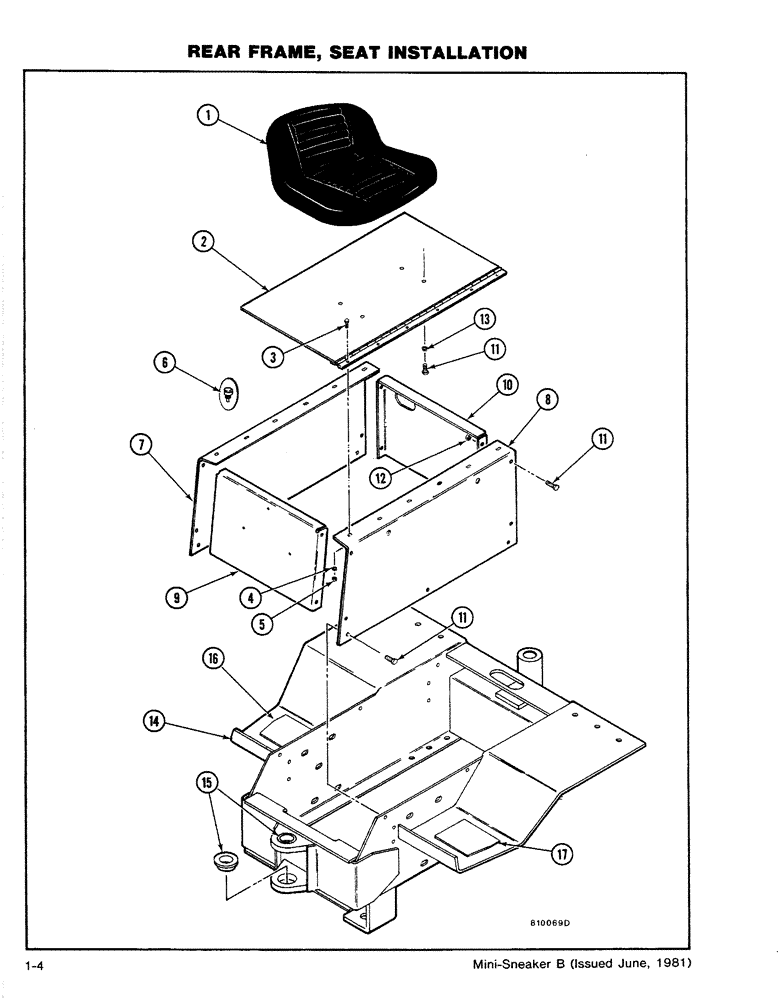

Запчасти Case CASE (1-04) - REAR FRAME, SEAT INSTALLATION (09) - CHASSIS

1

H429316

SEAT

(Replaces H274225)

1шт.

2

H629477

MOUNTING PARTS

PLATE - Seat

1шт.

3

163-32

SCREW,Hex, #10 - 24 x 1/2"

BOLT - Hex Hd (#10 x 12 NC)

6шт.

4

195-509

WASHER,3/16"

- Flat (3/16)

6шт.

5

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT - Hex (3/16 NC - Lock)

6шт.

6

H66522

BUMPER

- Rubber

4шт.

7

H629493

PANEL, SIDE

PANEL - Side, Right

1шт.

8

H629485

PANEL, SIDE

PANEL - Side, Left

1шт.

9

H392209

PANEL

- Cover, Front

1шт.

10

H393579

PANEL - Cover, Rear

1шт.

11

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

18шт.

12

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - Hex (5/16 NC - Lock)

12шт.

13

195-521

WASHER,5/16", SAE

- Flat (5/16)

4шт.

14

H651232

FRAME - Rear, Includes: Ref. 15

1шт.

15

H179077

BUSHING

2шт.

16

H326124

ADHESIVE STRIP

STRIP - Anti-Skid, Right

1шт.

17

H326132

ADHESIVE STRIP

STRIP - Anti-Skid, Left

1шт.
