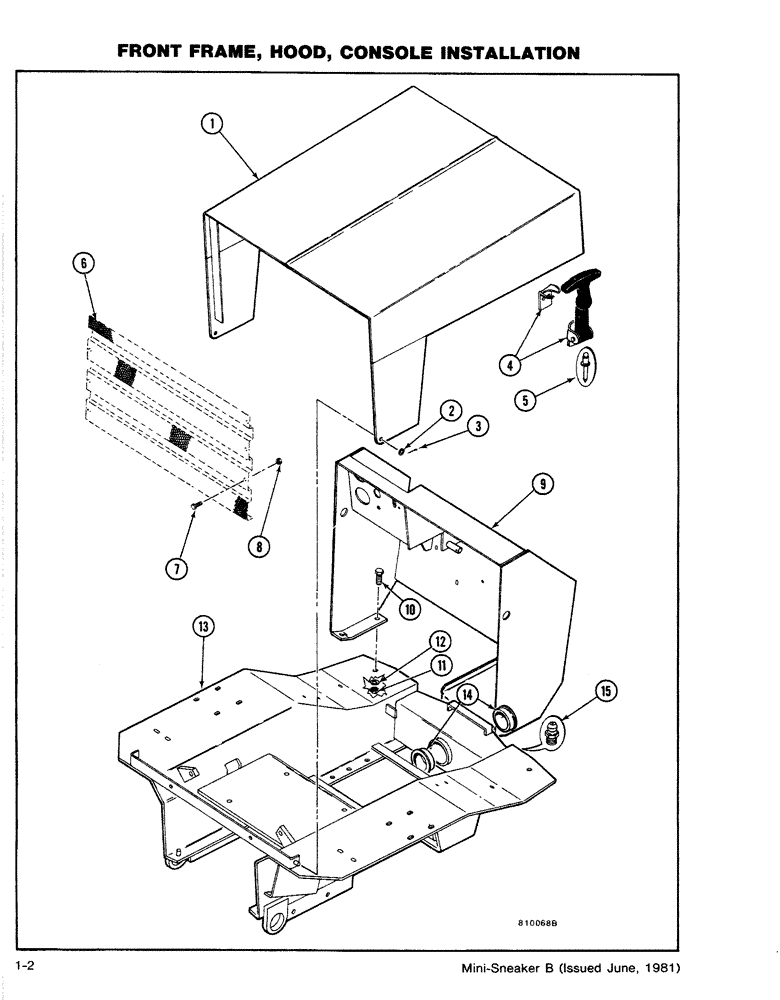

Запчасти Case CASE (1-02) - FRONT FRAME, HOOD, CONSOLE INSTALLATION (09) - CHASSIS

1

H646117

HOOD

Includes: Ref. 2 and 3

1шт.

2

195-525

WASHER,3/8", SAE

2шт.

3

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

4

H628263

LATCH ASSY.

LATCH - Hood, Includes: Ref. 5

2шт.

5

151-539

RIVET,Pop, 3/16" x .450"

- Pop, 3/16 x 7/16

8шт.

6

H385484

GRILLE

GRILL - Hood, Includes: Ref. 7 and 8

1шт.

7

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

8

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - Hex (5/16 NC - Lock)

8шт.

9

H646125

CONSOLE

Includes: Ref. 10 - 12

1шт.

10

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

11

113-1182

NUT - Hex Flat (1/2 NC - Lock)

4шт.

12

195-533

WASHER,1/2", SAE

- Flat (1/2)

4шт.

13

H645911

FRAME - Front, Includes: Ref. 14

1шт.

14

H257675

BUSHING,54.3mm ID x 69.85mm OD x 25.4mm L

- Pivot

2шт.

15

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - Grease

1шт.
