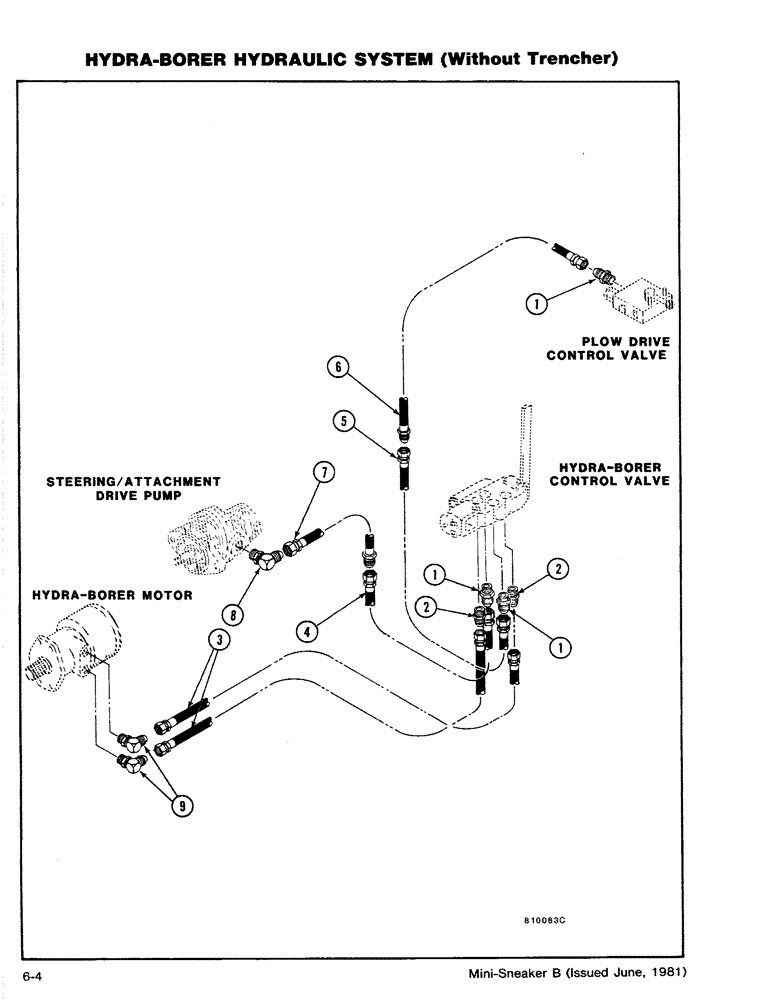

Запчасти Case CASE (6-04) - HYRDA-BORER HYDRAULIC SYSTEM (WITHOUT TRENCHER) (08) - HYDRAULICS

1

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - (7/8 ORB x 1 1/16 JIC M)

3шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - (7/8 ORB x 7/8 JIC M)

2шт.

3

H195958

HOSE,45.00", SAE 100R1

2шт.

4

H433072

HOSE ASSY.

HOSE - 3/4 x 26 (Replaces H250340)

1шт.

5

L15030

HYDRAULIC HOSE,0.75" ID x 30.00", SAE 100R2 Type A

HOSE, (Replaces H282863) 0.75" ID x 30.00", SAE 100R2 Type A

1шт.

6

H278416

HOSE

- 3/4 x 72

1шт.

7

H416677

HOSE - 3/4 x 20

1шт.

8

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degrees (7/8 ORB x 1 1/16 JIC M)

1шт.

9

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

(7/8 ORB x 7/8 JIC M) 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

2шт.
