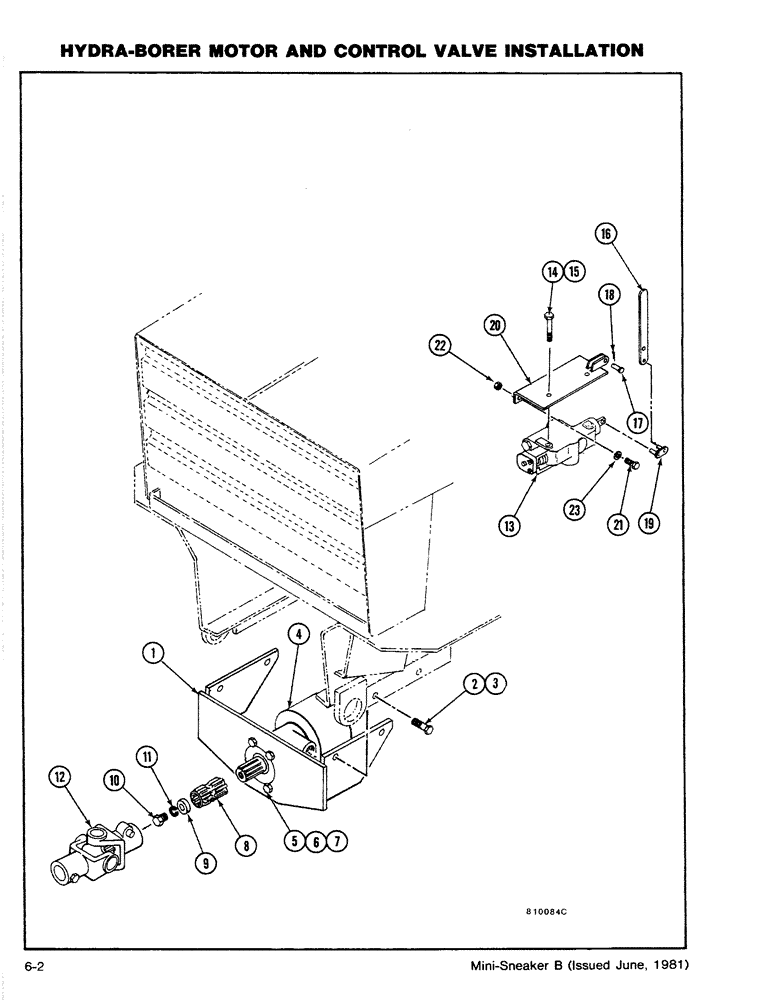

Запчасти Case CASE (6-02) - HYRDA-BORER MOTOR AND CONTROL VALVE INSTALLATION (08) - HYDRAULICS

H632448

MOUNTING PARTS

MOUNT - Motor, Includes: Ref. 2 and 3

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

3

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

4шт.

4

D58412

HYDRAULIC MOTOR

HYDRA-BORER MOTOR ASSEMBLY - (See figure 6-10), Includes: Ref. 5 - 7

1шт.

5

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

6

195-533

WASHER,1/2", SAE

- Flat (1/2)

4шт.

7

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

4шт.

8

H312314

ADAPTER

- Motor Shaft, Includes: Ref. 9 - 11

1шт.

9

H314054

RETAINER

1шт.

10

114-400

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

1шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

12

H511113

JOINT

UNIVERSAL JOINT ASSEMBLY - (See figure 6-8)

1шт.

13

H544718

LOCK VALVE

HYDRA-BORER CONTROL VALVE ASSEMBLY - (See figure 6-12), Includes: Ref. 14 and 15

1шт.

14

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

15

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

2шт.

16

H377325

LEVER

- Control Valve, Includes: Ref. 17 and 18

1шт.

17

H35279

AXLE PIN,4.72mm OD x 23.76mm L

PIN - Clevis

1шт.

Ref. 17 if wrong size use P/N H169318.

1шт.

18

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

19

B12505

LINK

- Connector

1шт.

20

H663740

MOUNT - Control Valve, Includes: Ref. 21 - 23

1шт.

21

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

22

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

2шт.

23

195-521

WASHER,5/16", SAE

- Flat (5/16)

2шт.
