(3-22) - PLOW LIFT CYLINDER ASSEMBLY

Запчасти Case CASE (3-22) - PLOW LIFT CYLINDER ASSEMBLY (08) - HYDRAULICS

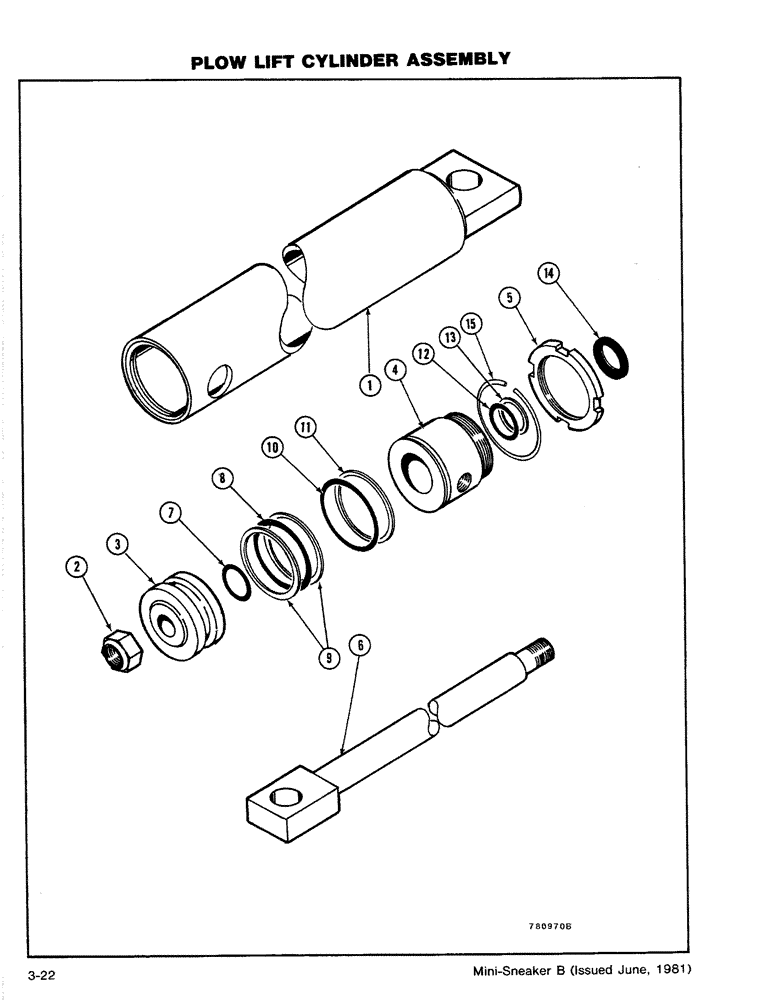

Схема запчастей Case CASE - (3-22) - PLOW LIFT CYLINDER ASSEMBLY (08) - HYDRAULICS
15
5
13
6
7
14
11
3
2
12
8
9
1
4
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H504076

CYLINDER BLOCK

PLOW LIFT AND CYLINDER ASSEMBLY, Includes: Ref. 1 - 15

1шт.

1

H72215

SLEEVE CYLINDER

BARREL

1шт.

2

131-172

LOCK NUT,3/4"-16, GA

NUT - Hex (3/4-16)

1шт.

3

A35897

PISTON ASSY.

PISTON

1шт.

4

H70078

BEARING

1шт.

5

H745786

BEARING LOCK NUT

- Bearing

1шт.

6

H66571

ROD

- Piston

1шт.

H507350

GASKET KIT

KIT - Seal Repair, Includes: Ref. 7 - 15

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - Rod Static

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - Piston

1шт.

9

NSS

NOT SOLD SEPARAT

RING - Backup

2шт.

10

NSS

NOT SOLD SEPARAT

SEAL - Bearing Static

1шт.

11

NSS

NOT SOLD SEPARAT

RING - Backup

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - Rod

1шт.

13

NSS

NOT SOLD SEPARAT

RING - Backup

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER - Rod

1шт.

15

NSS

NOT SOLD SEPARAT

WIRE - Lock

1шт.
