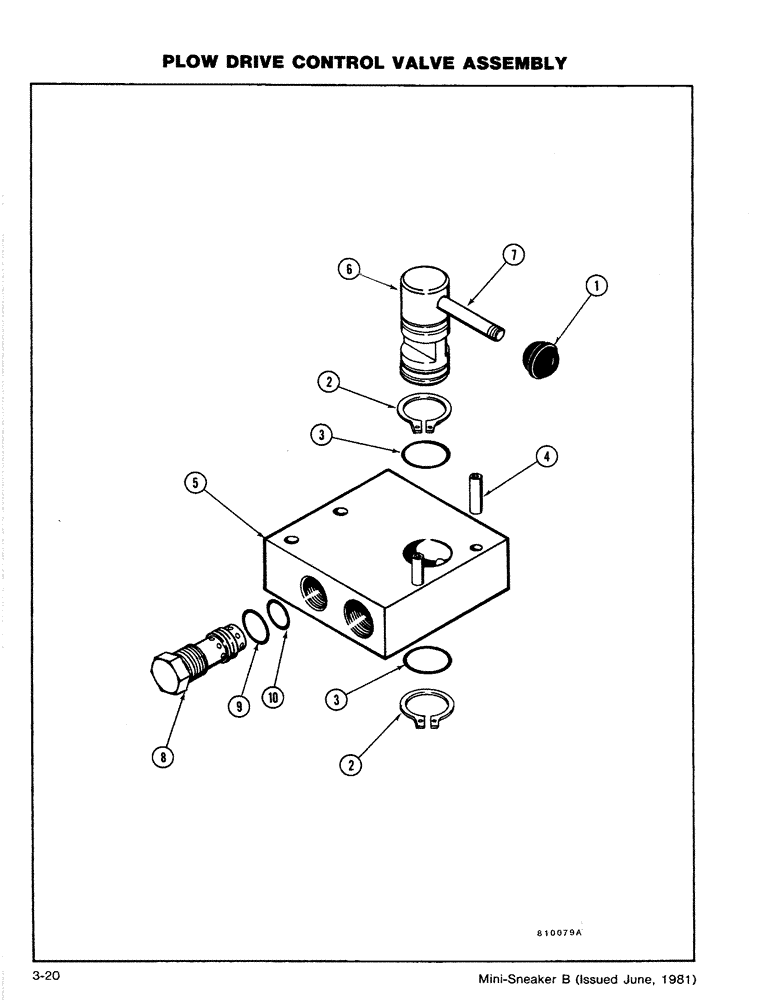

Запчасти Case CASE (3-20) - PLOW DRIVE CONTROL VALVE ASSEMBLY (08) - HYDRAULICS

H632588

SELECTOR

PLOW DRIVE CONTROL VALVE ASSEMBLY, Includes: Ref. 1 - 10

1шт.

1

H249839

KNOB

1шт.

2

F62020

SNAP RING,#125, Ext

RING, Snap, , replaces B18206 #125, Ext

2шт.

3

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

2шт.

4

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, (Replaces 138-134) 1/4" x 1 1/4", Slotted

2шт.

5

NSS

NOT SOLD SEPARAT

BODY

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

7

NSS

NOT SOLD SEPARAT

LEVER

1шт.

8

H636753

FILTER

RELIEF VALVE ASSEMBLY, Includes: Ref. 9 and 10

1шт.

9

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

10

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.
