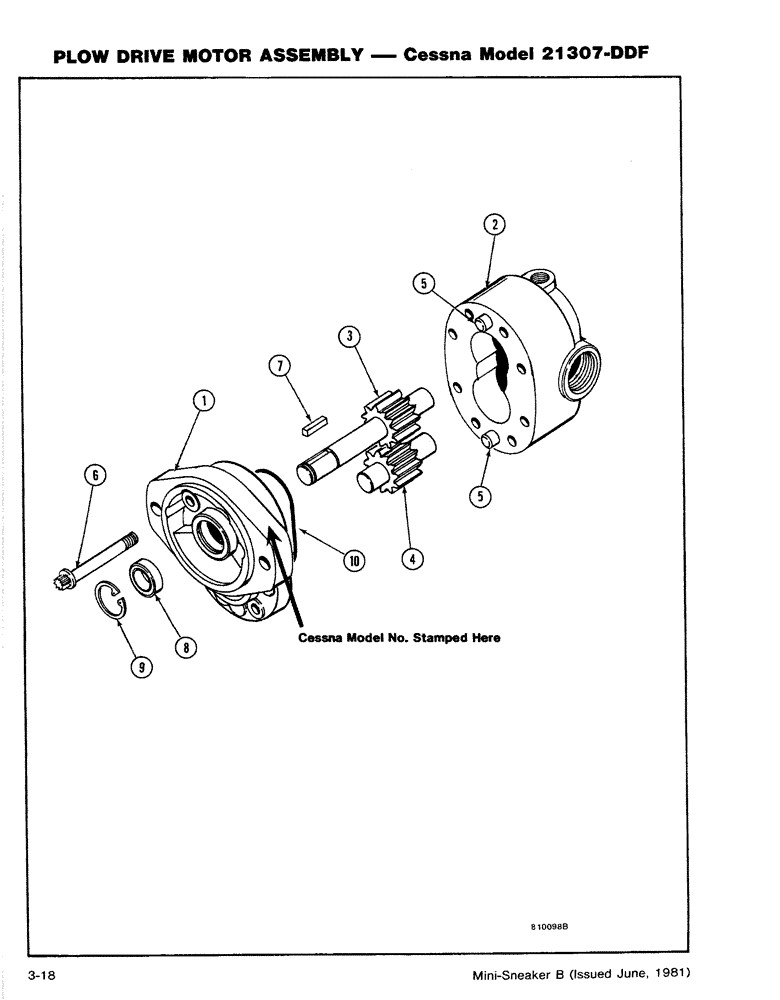

Запчасти Case CASE (3-18) - PLOW DRIVE MOTOR ASSEMBLY - CESSNA MODEL 21307-DDF (08) - HYDRAULICS

H654806

GEAR WHEEL

PLOW DRIVE MOTOR ASSEMBLY - Cessna Model 21307-DDF, Includes: Ref. 1 - 10

1шт.

1

H656660

FRONT PLATE

PLATE - Front

1шт.

2

H656637

HOUSING

1шт.

3

H660266

SHAFT

GEAR - Drive

1шт.

4

H656645

GEAR, IDLER

GEAR - Idler

1шт.

5

A11528

PIN,7.81mm OD x 14.29mm L

- Dowel

2шт.

6

166-28

12 PT SCREW,Flg, 5/16" - 18 x 1 1/2", Gr 8

CAPSCREW

8шт.

7

H413575

KEY

- Square (3/16 x 0.86) KIT - Seal Repair

1шт.

H656678

SEAL ASSY.

REPAIR KIT, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - Shaft

1шт.

9

NSS

NOT SOLD SEPARAT

RING - Retaining

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING

1шт.
