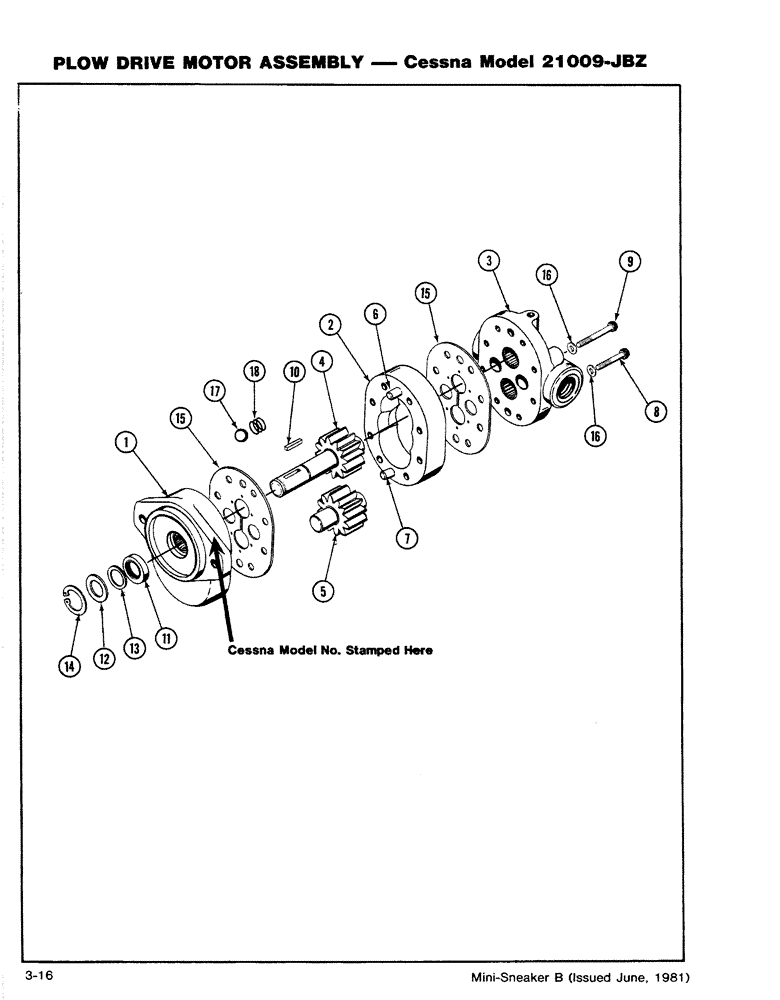

(3-16) - PLOW DRIVE MOTOR ASSEMBLY - CESSNA MODEL 21009-JBZ

Запчасти Case CASE (3-16) - PLOW DRIVE MOTOR ASSEMBLY - CESSNA MODEL 21009-JBZ (08) - HYDRAULICS

Схема запчастей Case CASE - (3-16) - PLOW DRIVE MOTOR ASSEMBLY - CESSNA MODEL 21009-JBZ (08) - HYDRAULICS
16
2
18
12
15
15
3
6
9
16
5
17
7
14
4
1
13
11
8
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H529305

GEAR WHEEL

PLOW DRIVE MOTOR ASSEMBLY - Cessna Model 21009-JBZ, Includes: Ref. 1 - 5

1шт.

1

H103002

PLATE ASSY.

PLATE - Front

1шт.

2

H215616

BODY

- Motor

1шт.

3

H501494

PLATE ASSY.

PLATE - Back

1шт.

4

H113662

GEAR WHEEL

GEAR - Drive

1шт.

5

H97881

GEAR WHEEL

GEAR - Idler

1шт.

6

H219576

DOWEL

- Special Hollow, Includes: Ref. 7 - 18

1шт.

7

L33494

PIN,12.7mm OD x 63.5mm L

- Dowel (5/16 x 1 7/8)

1шт.

8

166-33

12 PT SCREW,Flg, 5/16" - 18 x 2 3/4", Gr 8

CAPSCREW - NC 12 point (5/16 x 2 3/4)

4шт.

9

166-35

12 PT SCREW,Flg, 5/16" - 18 x 3 1/4", Gr 8

CAPSCREW - NC 12 point (5/16 x 3 1/4)

4шт.

10

H415158

BUCKET TOOTH KEY

KEY - Square (3/16 x 49/64) (Replaces H35147)

1шт.

H599704

KIT

- Seal Repair, Includes: Ref. 11 - 18

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - Shaft

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - Steel

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - Rubber

1шт.

14

NSS

NOT SOLD SEPARAT

RING - Snap

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE - Thrust

2шт.

16

NSS

NOT SOLD SEPARAT

WASHER - Copper

8шт.

17

NSS

NOT SOLD SEPARAT

BALL - Steel (13/32 diameter)

2шт.

18

NSS

NOT SOLD SEPARAT

SPRING - Check

2шт.
