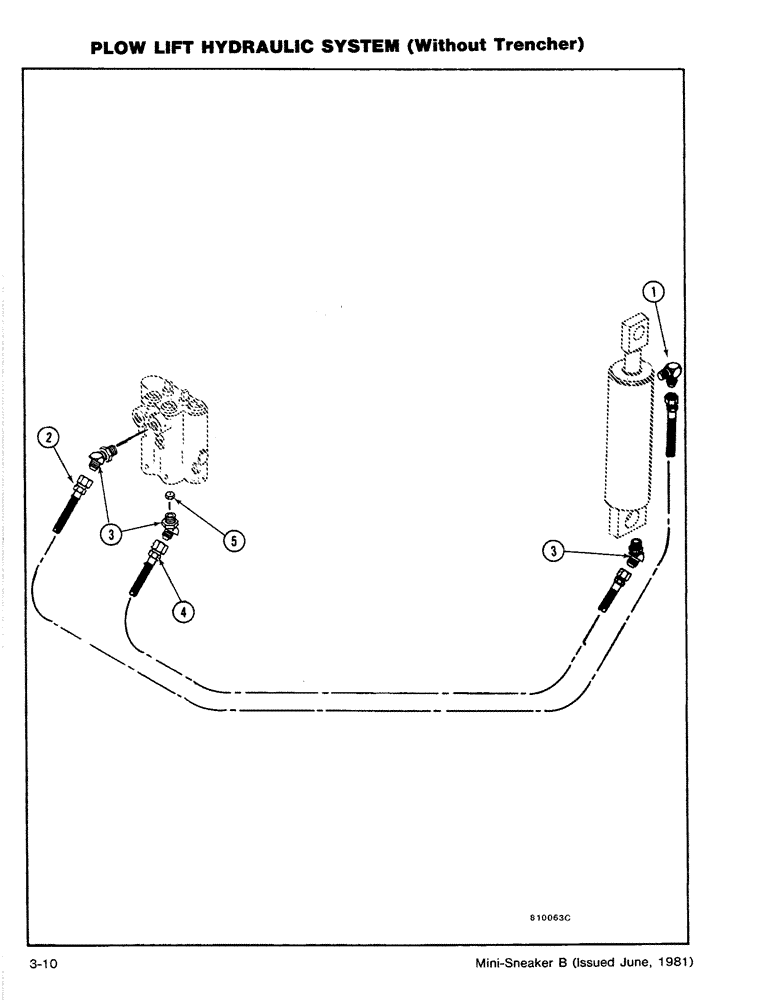

Запчасти Case CASE (3-10) - PLOW LIFT HYDRAULIC SYSTEM (WITHOUT TRENCHER) (08) - HYDRAULICS

1

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degrees (3/8 MP x 9/16 JIC M)

1шт.

2

H433052

HYDRAULIC HOSE,6.35 mm ID x 1850.00 mm, SAE 100R2

HOSE - 1/4 x 72 (9/16 JIC Fe Swv) (Replaces H234724)

1шт.

3

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degrees (9/16 ORB x 9/16 JIC M)

3шт.

4

H249615

HYDRAULIC HOSE,6.35 mm ID x 1574.80 mm, SAE 100R1

6.35 mm ID x 1574.80 mm, SAE 100R1

1шт.

5

H746875

SCREW

PLATE - Orifice - "B" Port

1шт.
