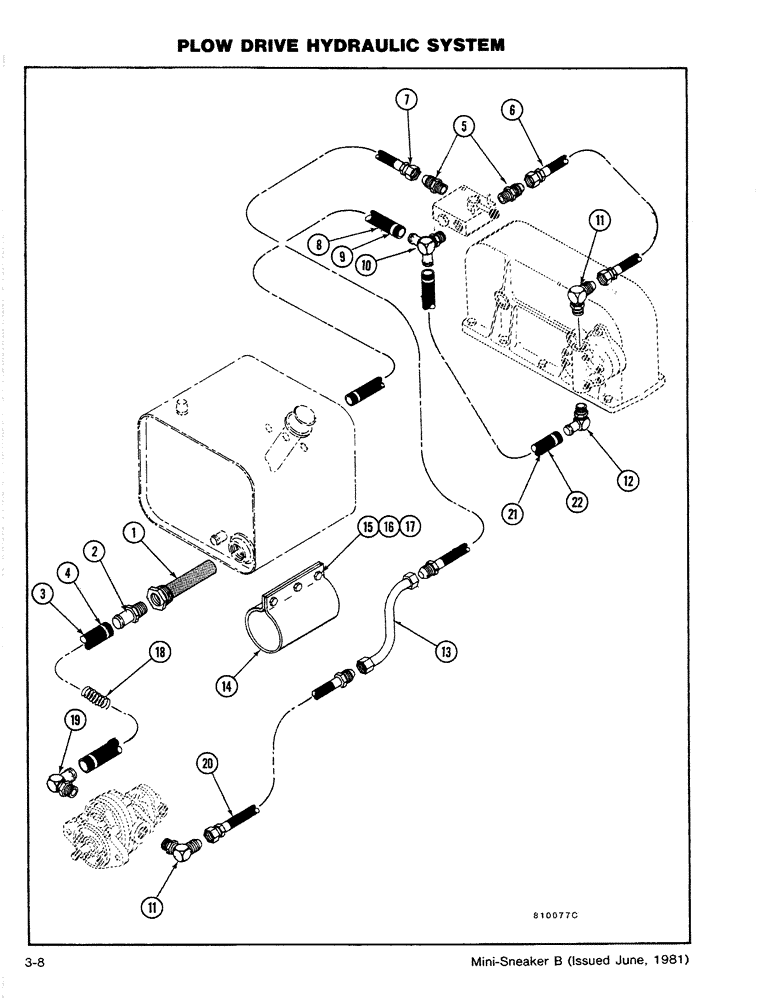

Запчасти Case CASE (3-08) - PLOW DRIVE HYDRAULIC SYSTEM (08) - HYDRAULICS

H584631

FILTER ASSY

FILTER - Screen

1шт.

2

217-156

FITTING,1" Hose Barb x 1" Male NPTF

CONNECTOR - (1 MP x 1 Barb)

1шт.

3

H431254

HOSE

- (1 x 10) (Replaces H337907), Includes: Ref. 4

1шт.

4

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - Hose

2шт.

5

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - (7/8 ORB x 1 1/16 JIC M)

2шт.

6

H433072

HOSE ASSY.

HOSE - 3/4 x 26 (1 1/16 JIC Fe Swv) (Replaces H250340)

1шт.

7

H296004

HYDRAULIC HOSE,19.05 mm ID x 1651.00 mm, SAE 100R2

(1 1/16 JIC Fe Swv x 1 1/16 JIC M) (Replaces H278416) 19.05 mm ID x 1651.00 mm, SAE 100R2

1шт.

8

H317305

HOSE

- 3/4 x 72, Includes: Ref. 9

1шт.

9

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

2шт.

10

H351742

TEE

- (7/8 ORB x 3/4 Barb x 3/4 Barb)

1шт.

11

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degrees (7/8 ORB x 1 1/16 JIC M)

2шт.

12

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

ELBOW - 90 degrees (7/8 ORB x 3/4 Barb)

1шт.

When using H654806 motor, H317438 elbow (1), H045708 hose (1) and 218-924 fitting (2)

1шт.

13

H646042

TUBE ASSY.,19 mm OD x 48, 90 mm L

TUBE

1шт.

Use L18331, tie to keep tube in place.

1шт.

14

H346932

COVER

- Hose

1шт.

15

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

16

195-521

WASHER,5/16", SAE

- Flat (5/16)

3шт.

17

H346650

NUT

3шт.

18

H353268

SPRING

- Hose

1шт.

19

217-366

FITTING,90 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW, 90°, 1" Hose x 1 1/16"-12 ORB Beaded

1шт.

20

H234179

HOSE

- 3/4 x 20 (1 1/16 JIC M x 1 1/16 JIC Fe Swv) (Replaces H416677)

1шт.

21

H212951

HOSE

- 3/4 x 22, Includes: Ref. 22

1шт.

22

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

2шт.
