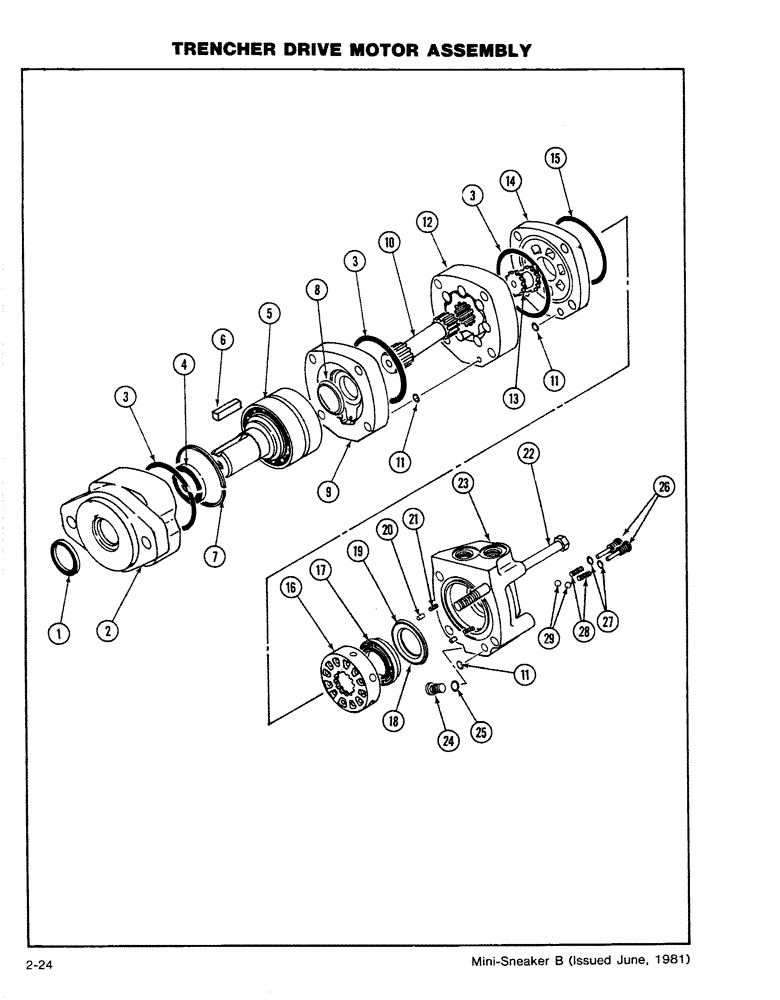

Запчасти Case CASE (2-24) - TRENCHER DRIVE MOTOR ASSEMBLY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
H660373
MOTOR, HYDRAULIC
TRENCHER MOTOR ASSEMBLY, Includes: Ref. 1 - 29
1шт.
1
S114374
SEAL
- Dust
1шт.
Part of Motor Repair Seal Kit, P/N S115772.
1шт.
2
S114489
HOUSING
- Bearing
1шт.
Order S115769 whenever replacing the Bearing Housing (Ref. 2), Shaft and Bearing Kit (Ref. 5), or Wear Plate (Ref. 9).
1шт.
3
S114357
SEAL,Square, 1.7mm Thk x 75.9mm ID
- O-Ring (3/8 ID)
3шт.
Part of Motor Shaft Seal Kit, P/N S115771.
1шт.
4
S114375
SEAL ASSY.
SEAL - Shaft
1шт.
Part of Motor Repair Seal Kit, P/N S115772.
1шт.
5
H661546
KIT
- Shaft and Bearing
1шт.
Order S115769 whenever replacing the Bearing Housing (Ref. 2), Shaft and Bearing Kit (Ref. 5), or Wear Plate (Ref. 9).
1шт.
NSS
NOT SOLD SEPARAT
SHAFT
1шт.
NSS
NOT SOLD SEPARAT
CONE - Bearing
2шт.
NSS
NOT SOLD SEPARAT
CUP - Bearing
2шт.
NSS
NOT SOLD SEPARAT
SPACER - Bearing
1шт.
NSS
NOT SOLD SEPARAT
RING - Retainer
1шт.
6
H182105
KEY
1шт.
7
S115769
10 NEEDLE BRG KIT
KIT - Bearing Spacer
1шт.
8
S114491
SEAL,30.9mm ID x 38.7mm OD x 3.9mm Thk
- Shaft Face
1шт.
Part of Motor Repair Seal Kit, P/N S115772.
1шт.
9
S114492
PLATE
- Wear
1шт.
Order S115769 whenever replacing the Bearing Housing (Ref. 2), Shaft and Bearing Kit (Ref. 5), or Wear Plate (Ref. 9).
1шт.
10
H415463
DRIVE
1шт.
11
L30893
O-RING,1/16" Thk x 5/16" ID
SEAL - O-Ring, 7/16 x 5/16 x 1/16 in
3шт.
Part of Motor Shaft Seal Kit, P/N S115771.
1шт.
12
H661553
GEROTOR
GEROLER
1шт.
13
S114496
COUPLING
DRIVE - Valve
1шт.
14
S114358
PLATE
- Valve
1шт.
15
S114361
SEAL
- (2 5/8 ID)
1шт.
Part of Motor Shaft Seal Kit, P/N S115771.
1шт.
16
S114362
VALVE
1шт.
17
S114363
PLATE
- Balance
1шт.
18
S114371
SEAL
- Face, Inner
1шт.
Part of Motor Shaft Seal Kit, P/N S115771.
1шт.
19
S114373
SEAL
- Face, Outer
1шт.
Part of Motor Shaft Seal Kit, P/N S115771.
1шт.
20
S114372
PIN
2шт.
21
S114366
SPRING
2шт.
22
114-262
BOLT,Hex, 3/8" - 24 x 4-3/4", Gr 5
Hex, 3/8"-24 x 4 3/4", G5
4шт.
23
S236486
HOUSING
- Valve, Includes: Ref. 24 - 29
1шт.
S114500
PLUG
- Assembly, Includes: Ref. 24 and 25
1шт.
24
NSS
NOT SOLD SEPARAT
PLUG
1шт.
25
218-5003
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk
1шт.
Part of Motor Shaft Seal Kit, P/N S115771.
1шт.
S236487
PLUG
CHECK PLUG ASSEMBLY, Includes: Ref. 26 - 29
2шт.
26
NSS
NOT SOLD SEPARAT
PLUG
1шт.
27
218-5002
O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro
3-1, .301" ID x .064" Thk
1шт.
28
D74394
SPRING
1шт.
29
211-7
BALL,1/4" Dia
- steel 1/4" Dia
1шт.
Part of Motor Shaft Seal Kit, P/N S115771.
1шт.
Выбрано товаров: 50
