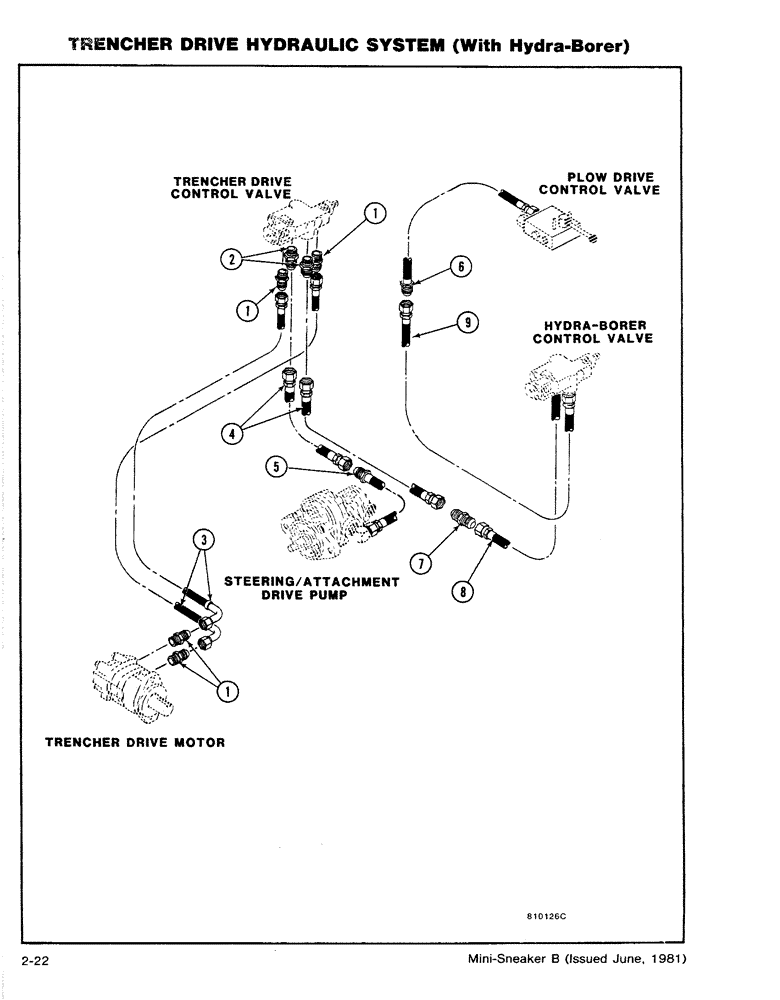

Запчасти Case CASE (2-22) - TRENCHER DRIVE HYDRAULIC SYSTEM (WITH HYDRA-BORER) (08) - HYDRAULICS

1

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - (7/8 ORB x 7/8 JIC M)

4шт.

2

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - (7/8 ORB x 1 1/16 JIC M)

2шт.

3

H278580

HOSE ASSY.

HOSE & TUBE - (1/2 x 78)

2шт.

4

H250340

HYDRAULIC HOSE,19.05 mm ID x 660.40 mm, SAE 100R1

Suction, Used on 30+4 Special Only 19.05 mm ID x 660.40 mm, SAE 100R1

2шт.

5

H416677

HOSE - (3/4 x 20)

1шт.

6

H278416

HOSE

- (3/4 x 72)

1шт.

7

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR

1шт.

8

H250340

HYDRAULIC HOSE,19.05 mm ID x 660.40 mm, SAE 100R1

Suction, Used on 30+4 Special Only 19.05 mm ID x 660.40 mm, SAE 100R1

1шт.

9

H282863

HYDRAULIC HOSE,19.05 mm ID x 762.00 mm, SAE 100R1

19.05 mm ID x 762.00 mm, SAE 100R1

1шт.

Ref. 9, H258376 hose adopted on ECS 6381-20.

1шт.
