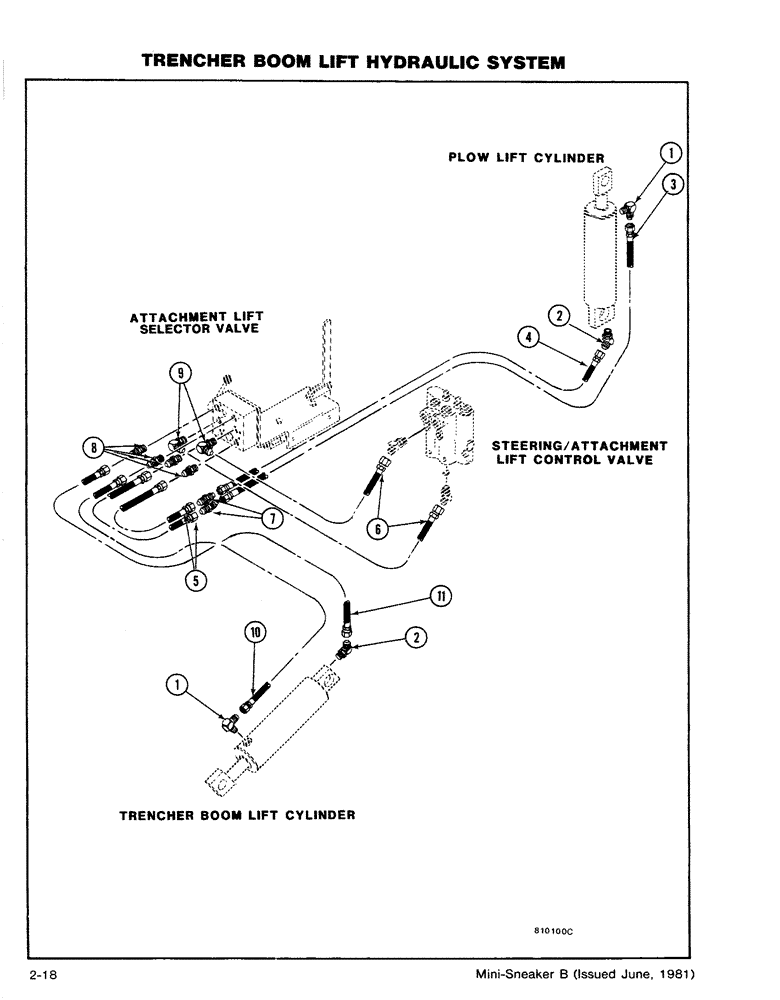

Запчасти Case CASE (2-18) - TRENCHER BOOM LIFT HYDRAULIC SYSTEM (08) - HYDRAULICS

1

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degrees (3/8 MP x 9/16 JIC M)

2шт.

2

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degrees (9/16 ORB x 9/16 JIC M)

2шт.

3

H433055

HOSE ASSY.

HOSE - 1/4 x 29 (9/16 JIC Fe Swv Ends) (Replaces H249029)

1шт.

4

H433050

HYDRAULIC HOSE,6.35 mm ID x 900.00 mm, SAE 100R2

HOSE - 1/4 x 33 (9/16 JIC Fe Swv Ends) (Replaces H218453)

1шт.

5

H171041

HOSE

- (1/4 x 18)

2шт.

6

H169151

HYDRAULIC HOSE,6.35 mm ID x 609.60 mm, SAE 100R1

6.35 mm ID x 609.60 mm, SAE 100R1

2шт.

7

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR - (9/16 JIC M)

2шт.

8

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - (9/16 ORB x 9/16 JIC M)

4шт.

9

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

10

H246330

HYDRAULIC HOSE,6.35 mm ID x 1905.00 mm, SAE 100R1

6.35 mm ID x 1905.00 mm, SAE 100R1

1шт.

11

H433051

HYDRAULIC HOSE,6.35 mm ID x 1550.00 mm, SAE 100R2

HOSE - (1/4 x 60) (Replaces H246322)

1шт.
