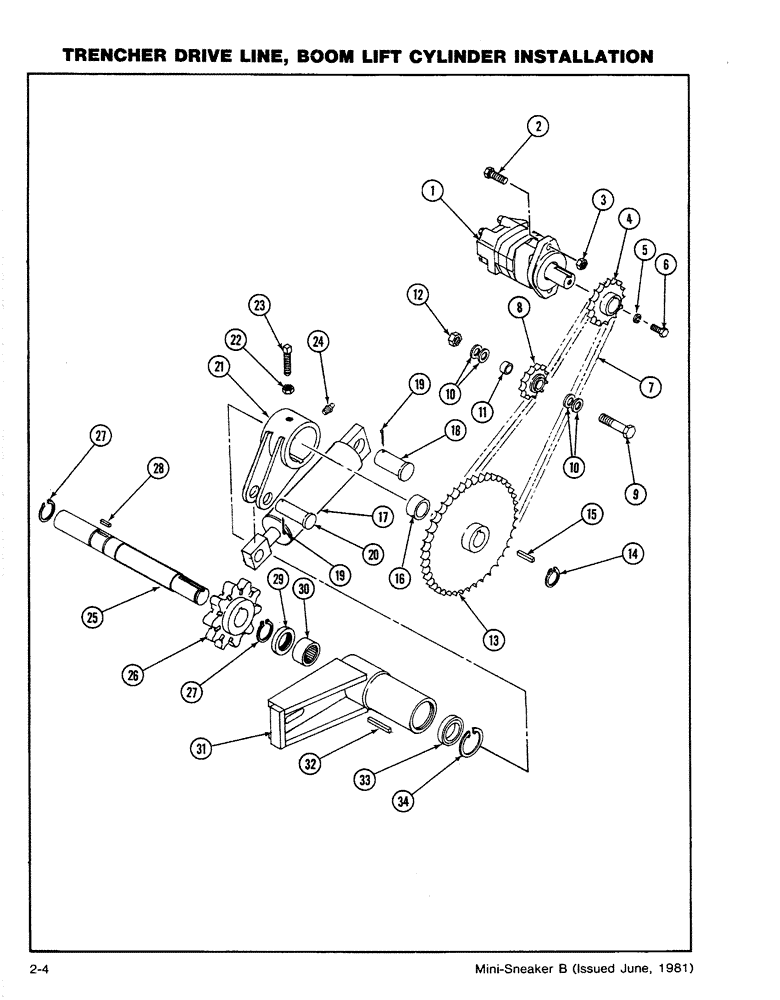

Запчасти Case CASE (2-04) - TRENCHER DRIVE LINE, BOOM LIFT CYLINDER INSTALLATION (08) - HYDRAULICS

1

H660373

MOTOR, HYDRAULIC

TRENCHER MOTOR ASSEMBLY - (See figure 2-24), Includes: Ref. 2 and 3

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

3

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

2шт.

4

H660217

DRIVE SPROCKET

SPROCKET, Includes: Ref. 5 and 6

1шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

7

H758862

CHAIN (AG)

CHAIN - ASA #60 (68 Pitches)

1шт.

8

H747386

DRIVE SPROCKET

SPROCKET - Idler, Includes: Ref. 9 - 12

1шт.

9

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

10

195-108

WASHER,5/8"

- Flat (5/8)

4шт.

11

H114140

SPACER

1шт.

12

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

1шт.

13

H415554

DRIVE SPROCKET

SPROCKET (Replaces H660225), Includes: Ref. 14 and 15

1шт.

14

A7409

SNAP RING,#137, Ext

RING, Snap, #137, Ext

1шт.

15

H179838

KEY

- Square

1шт.

16

H409177

SPACER

1шт.

17

H504076

CYLINDER BLOCK

TRENCHER BOOM LIFT CYLINDER ASSEMBLY - (See figure 2-28), Includes: Ref. 18 - 20

1шт.

18

H257048

PIN,28.5mm OD x 146.05mm L

- Head End

1шт.

19

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

2шт.

20

H65011

AXLE PIN,25.3mm OD x 75.41mm L

PIN - Clevis

1шт.

21

H413492

ARM

CRANK - Boom (Replaces H660241), Includes: Ref. 22 and 23

1шт.

22

129-165

JAM NUT,Jam, 1/2"-20, G5

1шт.

23

H33746

SET SCREW,1/2" - 20 x 2 1/4"

1шт.

24

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - Grease

1шт.

25

H407528

SHAFT

1шт.

26

H404004

DRIVE SPROCKET

SPROCKET, Includes: Ref. 27 and 28

1шт.

27

R13338

SNAP RING,#150, Ext

RING, Snap, #150, Ext

2шт.

28

H404012

KEY

1шт.

29

H749127

SEAL

1шт.

30

F7356

NEEDLE BEARING,Needle, 38.1mm ID x 47.63mm OD x 22.23mm W

BEARING

1шт.

31

H413419

ARM

MOUNTING - Boom (Replaces H660223)

1шт.

32

H413625

KEY

1шт.

33

38742

BALL BEARING

Includes: Ref. 34

1шт.

34

A10506

SNAP RING,2.44", Int, #244

RING, Snap, 2.44", Int, #244

1шт.
