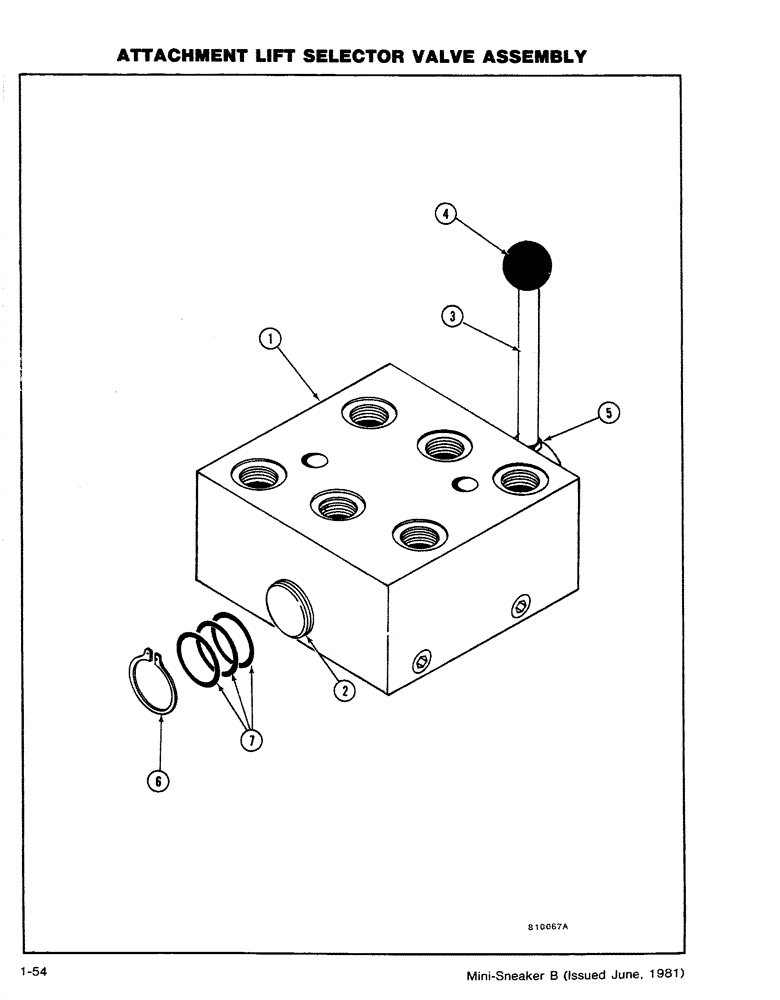

Запчасти Case CASE (1-54) - ATTACHMENT LIFT SELECTOR VALVE ASSEMBLY (08) - HYDRAULICS

H616763

LOCK VALVE

ATTACHMENT LIFT SELECTOR VALVE ASSEMBLY, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

NSS

NOT SOLD SEPARAT

HANDLE

1шт.

4

NSS

NOT SOLD SEPARAT

KNOB

1шт.

5

NSS

NOT SOLD SEPARAT

NUT

1шт.

6

B18206

SNAP RING,#87, Ext

RING, Snap, #87, Ext

2шт.

7

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

3шт.
