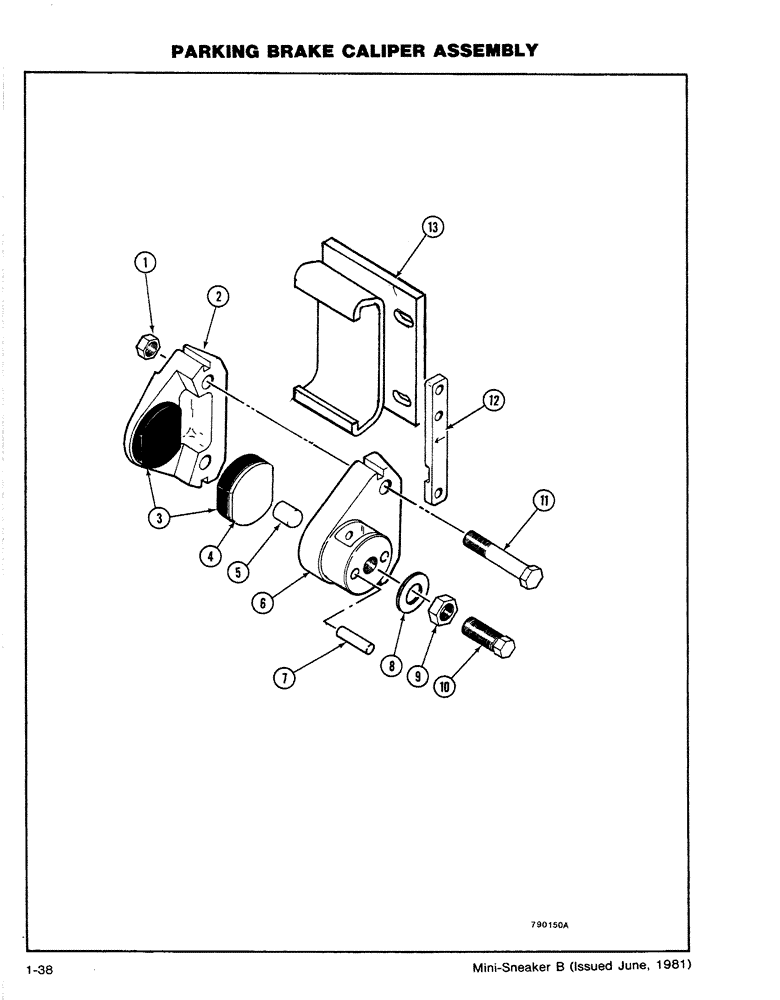

Запчасти Case CASE (1-38) - PARKING BRAKE CALIPER ASSEMBLY (07) - BRAKES

H646075

BRAKE

PARKING BRAKE CALIPER ASSEMBLY, Includes: Ref. 1 - 13

1шт.

1

131-1306

JAM NUT,Jam, 3/8"-16

NUT - NC Hex C/L (3/8)

2шт.

2

H378455

ANVIL

1шт.

3

H378463

LINING

- Brake

2шт.

4

H378471

PLATE ASSY.

PLATE - Backing

1шт.

5

H378489

PIN

- Actuator

1шт.

6

H378497

HOUSING

1шт.

7

H378505

PULLEY

PIN - Groove

2шт.

8

H378539

WASHER

1шт.

9

129-164

JAM NUT,Hex, 7/16" - 20, Gr 5

Jam, 7/16"- 20, G5

1шт.

10

H378513

PIN

- Adjuster

1шт.

You must buy complete assembly.

1шт.

11

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

12

H378521

LEVER

1шт.

13

646075

BRACKET

1шт.

14

H638858

CALIPER

disc brake

1шт.
