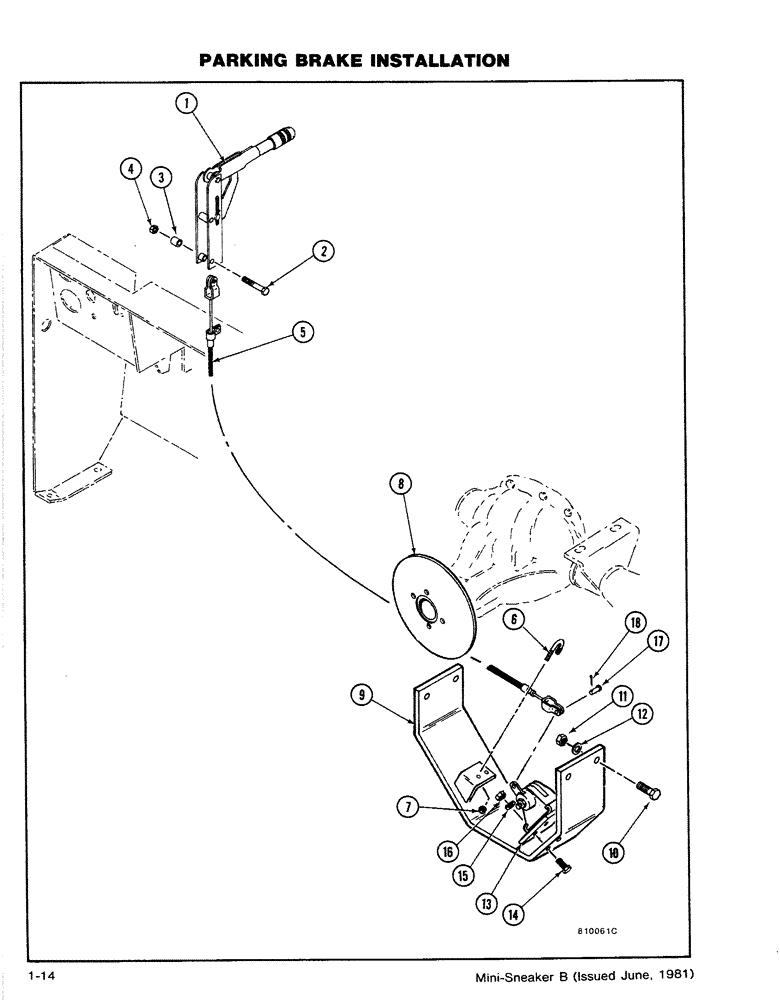

Запчасти Case CASE (1-14) - PARKING BRAKE INSTALLATION (07) - BRAKES

1

H506881

HANDLE

BRAKE LEVER ASSEMBLY

1шт.

2

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

3

H53959

SPACER

2шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - Hex (5/16 NC - Lock)

2шт.

5

H395665

CABLE

- Brake

1шт.

6

H166421

HARDWARE

U-BOLT

1шт.

7

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

8

H646018

BRAKE DISC

DISC - Brake

1шт.

9

H661298

BRACKET

- Brake Mounting

1шт.

10

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

11

131-1182

LOCK NUT,1/2"-13, GA

NUT - Hex (1/2 NC - Lock)

4шт.

12

195-533

WASHER,1/2", SAE

- Flat (1/2)

4шт.

13

H646075

BRAKE

ASSEMBLY - (See figure 1-38)

1шт.

14

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

15

195-525

WASHER,3/8", SAE

2шт.

16

230-4216

LOCK NUT,3/8"-16, GA

NUT - Hex (3/8 NC - Lock)

2шт.

17

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

PIN - Clevis (1/4 x 51/64)

1шт.

18

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.
