(1-46) - PROPULSION PUMP ASSEMBLY

Запчасти Case CASE (1-46) - PROPULSION PUMP ASSEMBLY (06) - POWER TRAIN

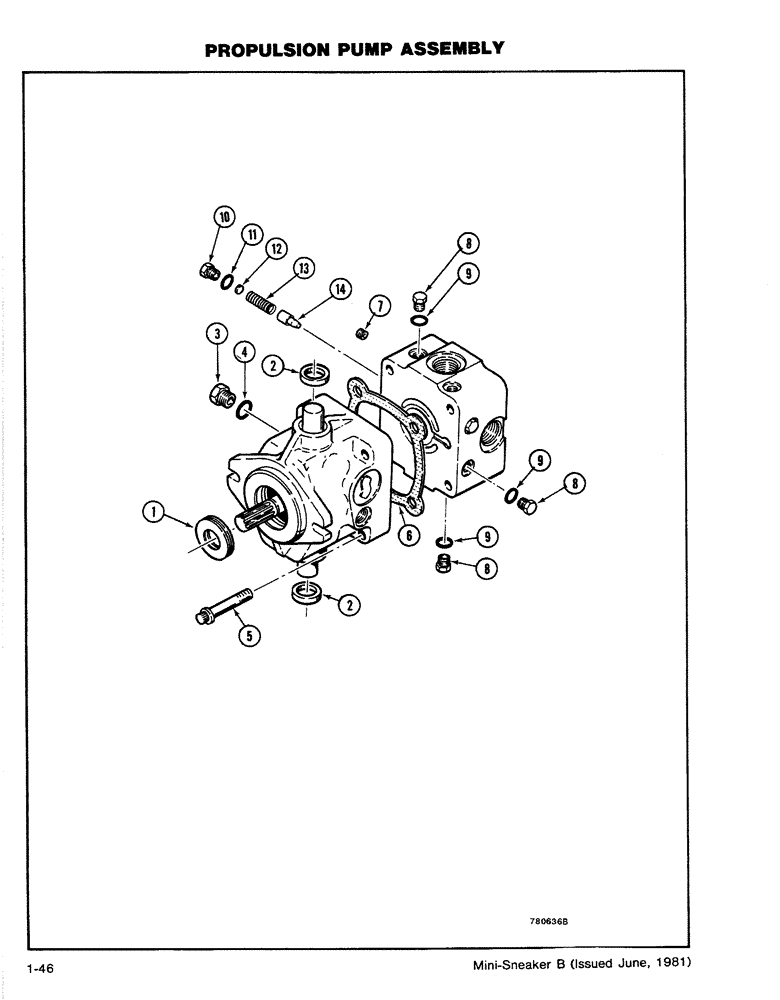

Схема запчастей Case CASE - (1-46) - PROPULSION PUMP ASSEMBLY (06) - POWER TRAIN
13
14
4
9
2
6
9
8
1
2
8
3
5
7
12
10
11
9
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H646091

PUMP

ASSEMBLY - Propulsion, Includes: Ref. 1 - 14

1шт.

1

H756296

SEAL

- Shaft

1шт.

2

H354001

SEAL ASSY.

SEAL - Control Shaft

2шт.

3

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

1шт.

4

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

5

61-736

HEX SOC SCREW,7/16"-14 x 2 1/4"

SCREW

4шт.

6

H305441

GASKET

1шт.

7

F23137

PLUG

- Pipe

2шт.

8

9672438

PLUG,7/16" - 20 ORB

4шт.

9

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

4шт.

H591545

LOCK VALVE

KIT - Charge Relief, Includes: Ref. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG

1шт.

11

NSS

NOT SOLD SEPARAT

O RING

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING

1шт.

14

NSS

NOT SOLD SEPARAT

VALVE - Relief

1шт.
