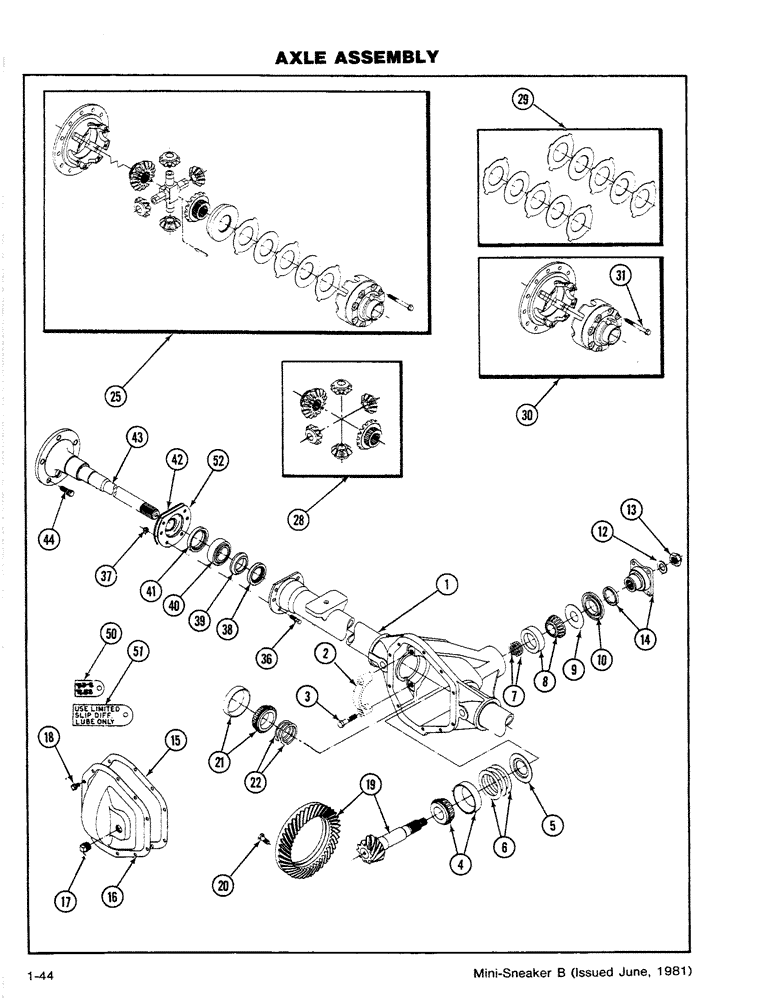

Запчасти Case CASE (1-44) - AXLE ASSEMBLY (06) - POWER TRAIN

H645945

CENTER AXLE

AXLE ASSEMBLY, Includes: Ref. 1 - 52

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - Axle, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - Differential Bearing

2шт.

3

H248310

CYLINDER END CAP

SCREW - Differential Bearing Cap

4шт.

4

H600072

KIT

- Inner Pinion Bearing

1шт.

Included in H620617 Gear & Pinion Kit

1шт.

5

H197616

BAFFLE

- Pinion Bearing

1шт.

Included in H620617 Gear & Pinion Kit

1шт.

6

H197871

SHIM,.003" Thk

Drive pinion .003" Thk

1шт.

Included in H620617 Gear & Pinion Kit

1шт.

6

H197889

SHIM,.005" Thk

Drive pinion .005" Thk

1шт.

Included in H620617 Gear & Pinion Kit

1шт.

6

H197897

SHIM,.010" Thk

Drive pinion .010" Thk

1шт.

Included in H620617 Gear & Pinion Kit

1шт.

7

H197665

SHIM,.003" Thk

Pinion bearing .003" Thk

1шт.

Included in H620617 Gear & Pinion Kit

1шт.

7

H197673

SHIM,.005" Thk

Pinion bearing .005" Thk

1шт.

Included in H620617 Gear & Pinion Kit

1шт.

7

H197681

SHIM,.010" Thk

Pinion bearing .010" Thk

1шт.

Included in H620617 Gear & Pinion Kit

1шт.

7

H197699

SHIM,.030" Thk

Pinion bearing .030" Thk

1шт.

Included in H620617 Gear & Pinion Kit

1шт.

8

H600080

KIT

- Outer Pinion Bearing

1шт.

Included in H620617 Gear & Pinion Kit

1шт.

9

H197764

WASHER

SLINGER - Outer Pinion Bearing

1шт.

Included in H620617 Gear & Pinion Kit

1шт.

10

H226597

SEAL

- Pinion

1шт.

Included in H620617 Gear & Pinion Kit

1шт.

11

DELETED

1шт.

12

H197574

WASHER

- Pinion Nut

1шт.

Included in H620617 Gear & Pinion Kit

1шт.

13

H197566

NUT

- Pinion

1шт.

Included in H620617 Gear & Pinion Kit

1шт.

14

H560524

FLANGE

YOKE ASSEMBLY (Includes H196998 Slinger Ring and H197582 End Yoke

1шт.

Included in H620617 Gear & Pinion Kit

1шт.

If required to plug axle vent holes, use P/N 168-62 Screw (2)

1шт.

15

H303330

GASKET - Carrier Cover

1шт.

Included in H620617 Gear & Pinion Kit

1шт.

16

H197905

PLATE

COVER - Carrier, Includes: Ref. 17

1шт.

17

221-48

PLUG

1шт.

18

H226555

FLANGE BOLT

BOLT - Carrier Cover

10шт.

19

H583492

GEAR-SET

DRIVE GEAR & PINION SET - (Includes Ref. 13)

1шт.

Included in H620617 Gear & Pinion Kit

1шт.

20

117383A1

BOLT,3/8" - 24 x 21.01mm

SCREW - Drive Gear (Replaces H225219)

10шт.

Included in H620617 Gear & Pinion Kit

1шт.

This is a KIT that includes 10 Bolts, 1 Washer (Ref. 12), and 1 Nut (Ref. 13)

1шт.

21

H60098

KIT - Differential Bearing

2шт.

22

H197947

SHIM,.003" Thk

Differential bearing .003" Thk

1шт.

Included in H620617 Gear & Pinion Kit

1шт.

22

H197954

SHIM,.005" Thk

Differential bearing .005" Thk

1шт.

Included in H620617 Gear & Pinion Kit

1шт.

22

H197962

SHIM,.010" Thk

Differential bearing .010" Thk

1шт.

Included in H620617 Gear & Pinion Kit

1шт.

22

H197970

SHIM,.030" Thk

Differential bearing .030" Thk

1шт.

Included in H620617 Gear & Pinion Kit

1шт.

25

H615823

CASE ASSY.

DIFFERENTIAL CASE ASSEMBLY, Includes: Ref. 28 - 31

1шт.

28

H197939

GEAR-SET

KIT - Differential Gear & Pinion

1шт.

Included in H620617 Gear & Pinion Kit

1шт.

29

H206896

CLUTCH DISC

KIT - Differential Disc & Plate

1шт.

Included in H620617 Gear & Pinion Kit

1шт.

30

H248443

CASE ASSY.

CASE - Differential

1шт.

31

H232579

BOLT,Hex, 3/8" - 24 LH Thd x 2.906"

SCREW - Differential Case

8шт.

36

H197715

BOLT

BOLT - Brake

8шт.

37

H197780

LOCK NUT

NUT - Brake Bolt

8шт.

38

H197749

SEAL

- Oil

2шт.

39

H303313

RING

- Wheel Bearing Retainer

2шт.

40

H757161

BEARING

2шт.

41

H757153

OIL SEAL

- Oil

2шт.

42

H303305

RETAINER

- Oil Seal

2шт.

43

H610691

CENTER AXLE

SHAFT & WHEEL BOLT ASSEMBLY, Includes: Ref. 44

2шт.

44

H171090

WHEEL BOLT

BOLT - Wheel

5шт.

50

H232561

TAG - Ratio

1шт.

51

H226571

TAG

- Differential Lube

1шт.

52

H197723

SPACER

- Wheel Bearing

2шт.
